Specifications
1.Window Control system
2.Type: rail window opener
3.Usage: greenhouse

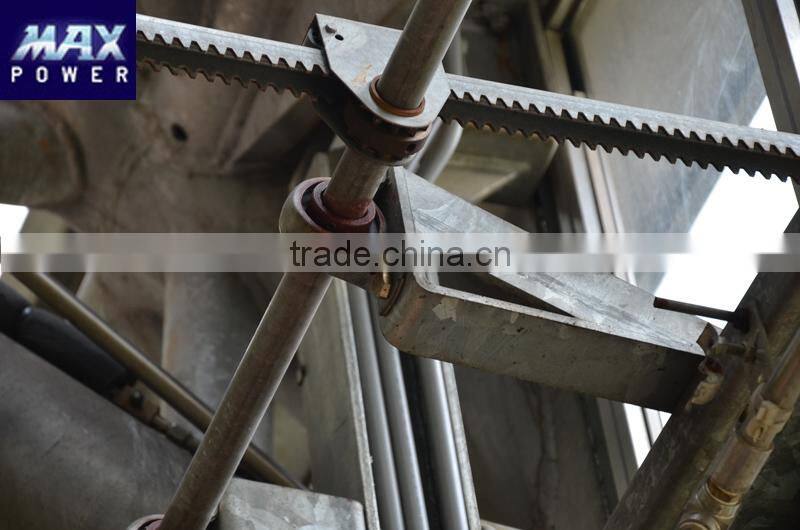

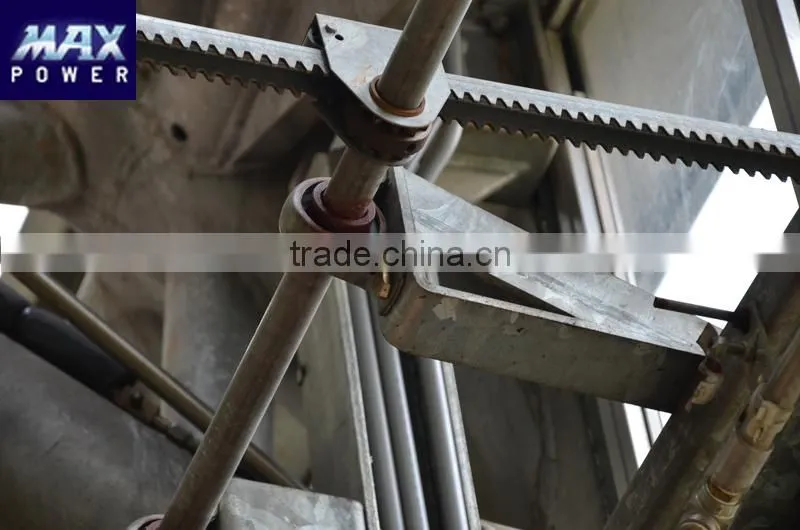

Greenhouse straight rack and pinion
Product instruction

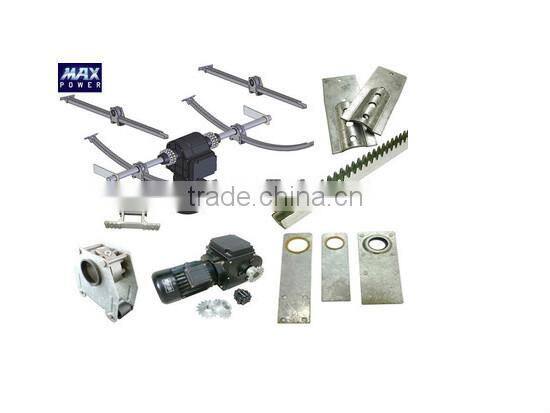

The rack and pinion,eletric motor,actuating shaft and bearing block is the main parts for greenhouse window opening system and ventilation system.
Features
1.Small Volume,
2.Light Weight
3.Stable Operation
4.Accurate Operation
5.Remarkable Ventilation Effect
The Greenhouse Rack & Pinion Ventilation System can,
1, Changing the temperature and CO2 density of inner greenhouse.
2, Running smoothly with high security, high efficiency and accuracy
3, With self-control function
4, For air circulation in greenhouse
Technical Parameters
No |
Designation |
Spec |
Unit |
1 |
window opener motor |
|
set |
2 |
rail window opener gear |
|
piece |
3 |
rail window opener rack |
L=1050mm |
root |
4 |
welded joint |
|
piece |
5 |

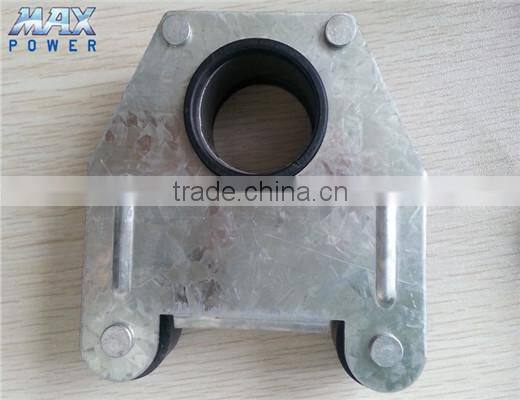

bearing block |
|
piece |
6 |
support roller |
Φ32 |
piece |
7 |
rack and the push rod joint |
Φ27 Φ32 |
piece |
8 |
rod bearing |
Φ32 |
piece |
9 |
the window hinge pedestal |
|
piece |

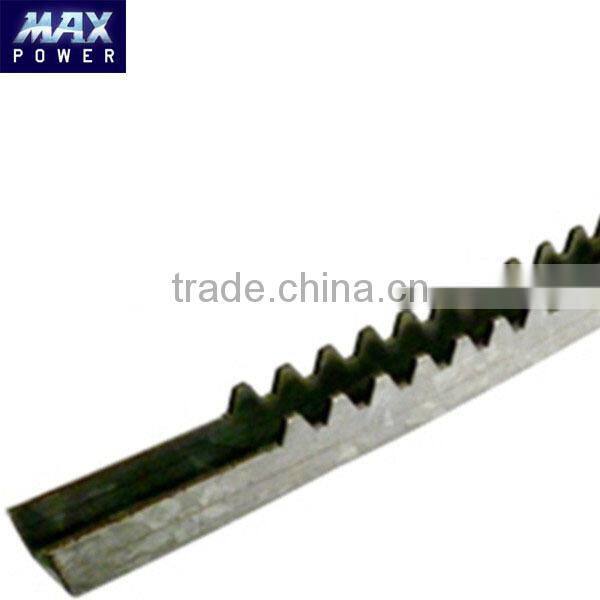

| Rack | ||||
| Picture | Shape | Length(mm) | Thickness(mm) | |
|
|
Straight Rack | 1050 | 2.0 | |
| 1250 | 2.0 | |||
| 1450 | 2.0 | |||
| 1650 | 2.0/ 2.5 | |||
| 2000 | 2.0/ 2.5 | |||
|
Curved rack | 1050 | 2.0 | |
| 1250 | 2.0 | |||
| 1450 | 2.0 | |||
| 1650 | 2.0/ 2.5 | |||
| 2000 | 2.0/ 2.5 | |||
| Pinion | ||||
| Shape | Wheel | Sleeve | ||
|
|
A-type pinion | Power Metallirgy/ stainless steel | nylon/ copper | |
|
B-type pinion | Power Metallirgy/ stainless steel | nylon/ copper | |

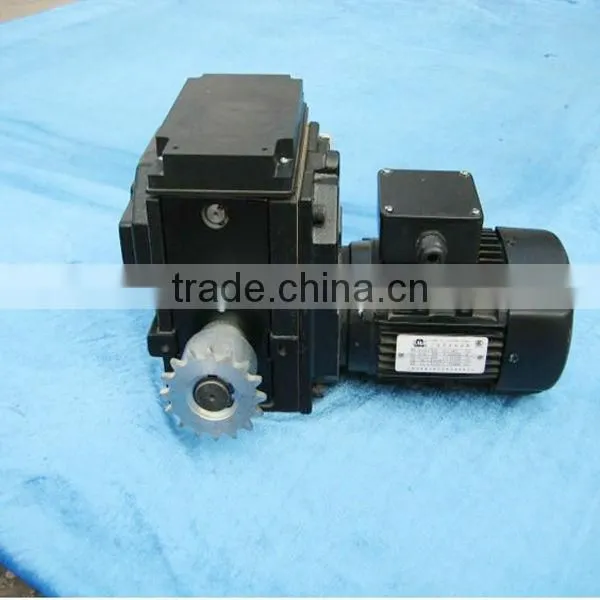

Motor
Specifications |
Voltage |
Power |
Output Rvolutions |
Output Torque |
MP550 |
380V |
550W |
2.6r/min |
400N.m |
MP750 |
380V |
750W |
2.6r/min |
800N.m |

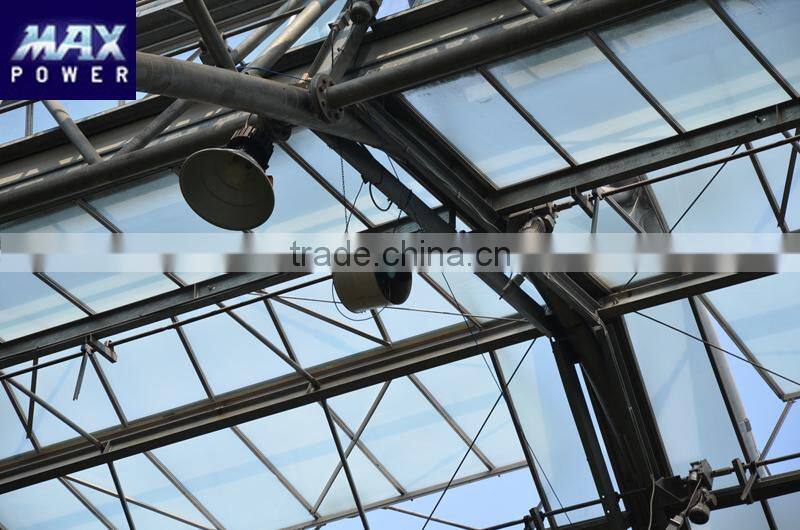

Application
Greenhouse equipment CHOOSE
Chongqing Maxpower Machinery Co., Ltd.
Why choose us
1. We consistent good quality with reasonable price.
2. Good company, good reputation, more reliable.
3. Responsibly Delivery
4. Considerable after-sales service.
Focus to the satisfaction and success of our clients!
Maxpower Machinery Co., Ltd. is a manufacturer and trader specialized in the research, development and production of environmental protection products. We are located in Chongqing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
We also provide all kinds of greenhouse equipment,contact us for more details.
