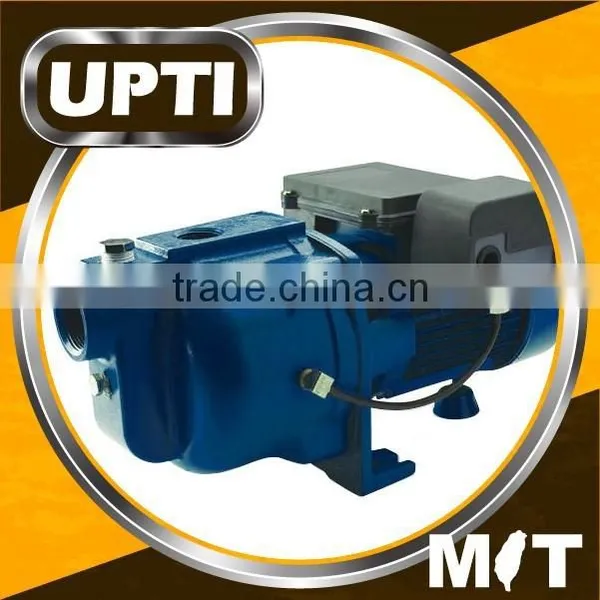

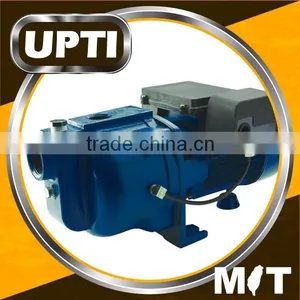

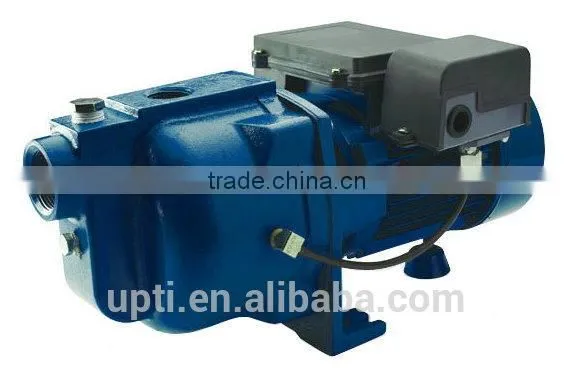

Taiwan Made DIY Heavy Duty Quick Draw Shallow Well Jet Pump
Prim quickly, deliver strong performance, and feature a moisture and insect proof motor for optimum reliable service.
It features a large capacity top suction case and internal priming plate for quick and reliable priming.
The motor provides dependable long life to all critical bearing with electrical connections enclosed and protected from potential moisture and insect problems.
The 1/2, 3/4 and 1 HP pumps are quick to deliver water for home, farm, commercial and industrial water system.
Applications
Water System for home, farm, commercial and industrial water.
Specifications
Improved shallow well design
Cast iron construction: Corrosion resistant impellers.
1/2, 3/4 and 1 HP models: Max. pressures to 65 PSI.
Flow to 27 GPM.
Features
1. Quick and Easy Priming
Faster priming: Large capacity, top suction case and Internal priming plate.
Separate priming plug on case.
2. Long Life Motor
115/230 volt with dual voltage selector switch:
Prevent moisture insect or dirty damage to critical electrical components.
Provides clean, dry environment to electrical components for max. motor life.
Permanently lubricated double-ball bearings.
Strong capacitor starting torque Non-overloading, continuous duty rating and
Internal thermal overload protection.
3. Strong Pump Performance:
Max. pressures to 65 PSI
Flow capabilities to 27 GPM
1-1/4” suction, 1” discharge on all models.
4. Heavy Duty Pump Case and Motor Bracket:
Motor Bracket: High tensile strength case iron.
Easy Serviceability: Convenient back pullout design, Nozzle clean-out and
priming fitting.
Mechanical Shaft Seal: Precision lapped and polished carbon/ceramic faces,
buna elastomers,
and stainless steel components.
Direct Mount Pressure Switch: Pre-set at 30/50 PSI setting.
Corrosion Resistant Design: Engineering reinforced thermoplastic impeller.
Thermoset diffuser with stainless steel wear ring.

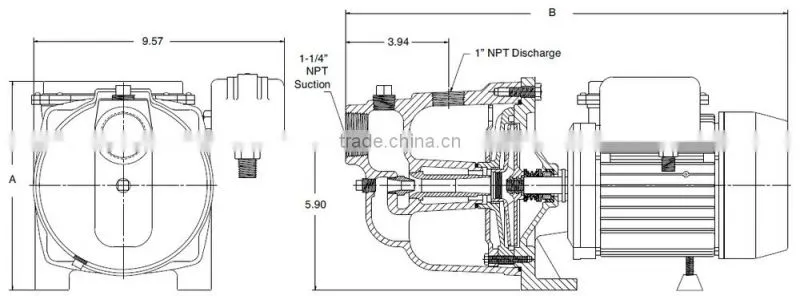

ITEM NO. |
A |
B |
HW405070/75S |
8.50 |
17.86 |
HW405070/100S |
8.50 |
17.86 |

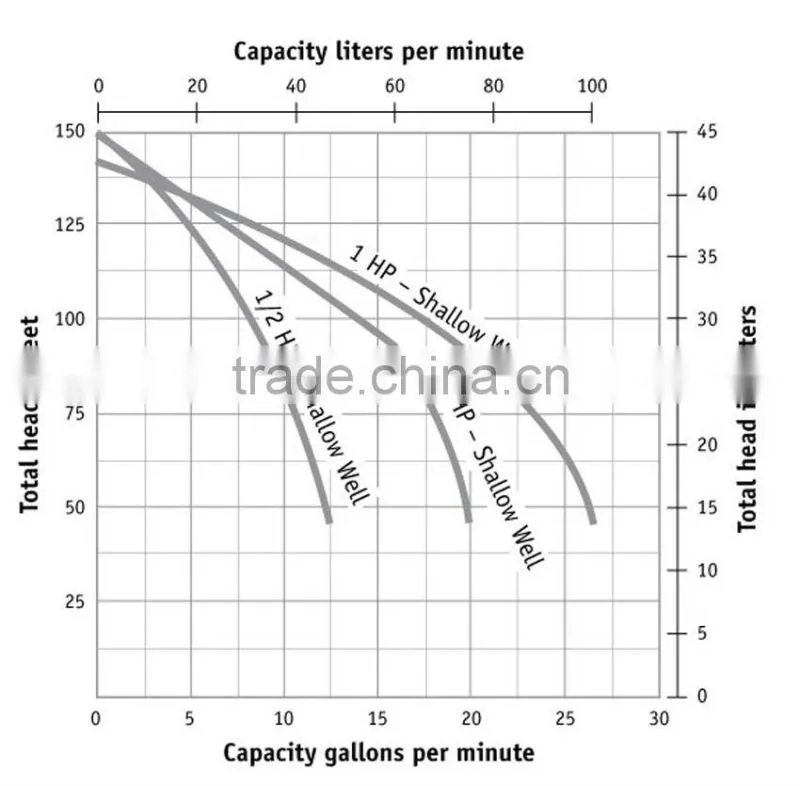

Item No. |
HP |
Discharge Pressure (Lbs.) |
Capacity in U.S. Gallons |
Shut-off Pressure |
|||||
Suction Lift | |||||||||
0’ |
5’ |
10’ |
15’ |
20’ |
25’ |
||||
HW405070/50S |
1/2 |
20 |
|
11.5 |
10.5 |
9 |
7.5 |
6 |
65 PSI |
30 |
11 |
10 |
9.5 |
8 |
6.4 |
5 |
|||
40 |
|
8 |
7.5 |
6 |
4 |
3 |
|||
50 |
|
5.5 |
5 |
4 |
3 |
2 |
|||
HW405070/75S |
3/4 |
20 |
20 |
18 |
16.5 |
|
13 |
10 |
|
30 |
19 |
17 |
15.5 |
14 |
12 |
9 |
|||
40 |
16 |
14.5 |
12 |
11 |
9 |
8 |
|||
50 |
9.5 |
8.5 |
|
6.5 |
4.5 |
3.5 |
|||
HW405070/100S |
1 |
20 |
26.5 |
24 |
22 |
|
6 |
13 |
62 PSI |
30 |
|
23 |
21 |
18 |
15 |
11 |
|||
|
20 |
18.5 |
|
13 |
10.5 |
7 |
|||
50 |
12.5 |
11 |
9.5 |
7 |
5 |
|
|||
|
|
|
|
|
|
|
|
