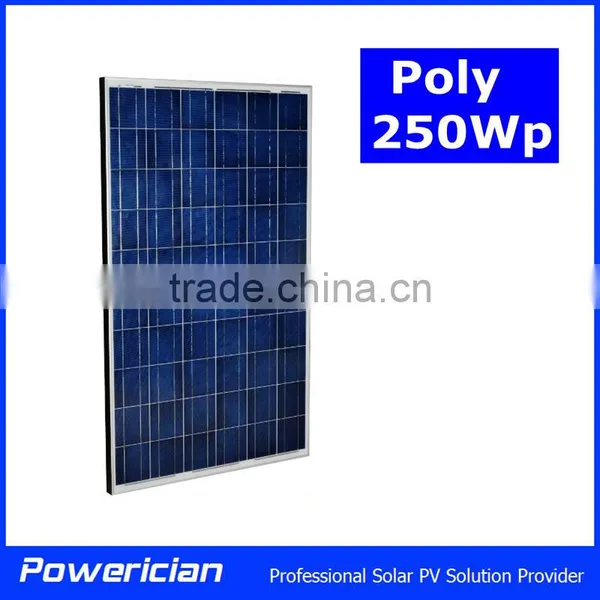

Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
Features:
- Power tolerance (0~+3%) ensures the high relability of power output
- Drainage holes in frame design, ensures withstanding various weather condition
- High reverse current resistance design.
- TUV certified modules, with high level of wid loads (2400Pa) and snow load(5400Pa)
- Junction box and bypass diodes uarantee the moduls free of overheating and "hot spot effect"
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
| Cell Type | Poly Crystalline 156x156mm |
| Number of Cells | 60(6x10) |
| Dimensions | 1640Lx990Wx40T mm |
| Weights | 21kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Electric Parameters
| Max Power at STC(Pmax) | 230W | 235w | 240 | 245W | 250W | 255W | 260W | 265W |
| Short Circuit Current(Isc)-A | 8.60 | 8.43 | 8.57 | 8.63 | 8.71 | 8.80 | 8.89 | 8.94 |
| Open Circuit Voltage(Voc)-V | 36.2 | 35.6 | 37.5 | 36.1 | 36.3 | 36.4 | 36.7 | 37.0 |
| Max Power Current(Impp)-A | 7.90 | 7.88 | 8.00 | 8.05 | 8.17 | 8.30 | 8.42 | 8.5 |
| Max Power Voltage(Vmpp)-V | 29.1 | 29.8 | 30.0 | 30.4 | 30.6 | 30.7 | 30.9 | 31.0 |
| Module Effiency | 14.17% | 14.47% | 14.48% | 15.09% | 15.40% | 15.71% | 16.01% | 16.2% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
Temperature Characteristics Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.06%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 3 or 6 |
Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
Mechanical Drawings
Po Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
werician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Performance Curve
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Packing Coniguration
| Container | 20`GP | 40`GP |
| Pieces Per Pallet | 27 | 27 |
| Pallets Per Container | 14 | 28 |
| Pieces Per Container | 356 | 756 |
Each panel in one plastic bag.
27 pcs of panel in 1 carton box
Each carton box fixed on the pallet with belt
Wooden box is offered with extra charge
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
Poly 250Wp for Solar Pump Off Grid Solar and Hybrid Solar Power System OEM Solar Panel
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
