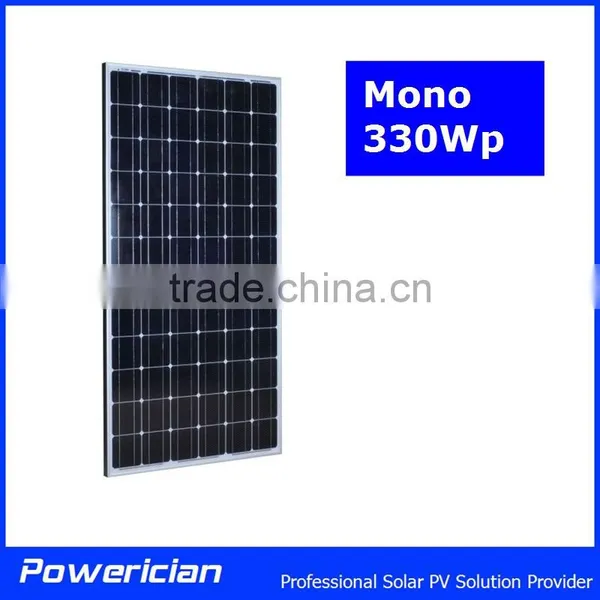

Powerician Brand High Efficiency Solar Module
MONO 330Wp
with CE UL IEC Certificate
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Features:
- Power tolerance (0~+3%) ensures the high relability of power output
- Drainage holes in frame design, ensures withstanding various weather condition
- High reverse current resistance design.
- TUV certified modules, with high level of wid loads (2400Pa) and snow load(5400Pa)
- Junction box and bypass diodes uarantee the moduls free of overheating and "hot spot effect"
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
| Cell Type | Mono Crystalline 156x156mm |
| Number of Cells | 72(6x12) |
| Dimensions | 1950Lx990Wx45T mm |
| Weights | 24kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
Electric Parameters
| Max Power at STC(Pmax) | 300W | 305w | 310W | 315W | 320W | 325W | 330W |
| Short Circuit Current(Isc)-A | 8.74 | 8.79 | 8.89 | 8.95 | 9.04 | 9.14 | 9.24 |
| Open Circuit Voltage(Voc)-V | 44.6 | 45.1 | 45.4 | 45.9 | 44.9 | 45.1 | 45.5 |
| Max Power Current(Impp)-A | 8.21 | 8.26 | 8.35 | 8.41 | 8.48 | 8.58 | 8.66 |
| Max Power Voltage(Vmpp)-V | 36.5 | 36.9 | 37.1 | 37.5 | 37.7 | 37.9 | 38.1 |
| Module Effiency | 15.54% | 15.80% | 16.06% | 16.32% | 16.58% | 16.84% | 17.1% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.06%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 3 or 6 |
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Mechanical Drawings
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Performance Curve
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Packing Coniguration
| Container | 20`GP | 40`GP |
| Pieces Per Pallet | 30 | 30 |
| Pallets Per Container | 14 | 28 |
| Pieces Per Container | 400 | 840 |
Each panel in one plastic bag.
30 pcs of panel in 1 carton box
Each carton box fixed on the pallet with belt
Wooden box is offered with extra charge
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
Powerician Brand High Efficiency Solar Module MONO 330Wp with CE UL IEC Certificate
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
