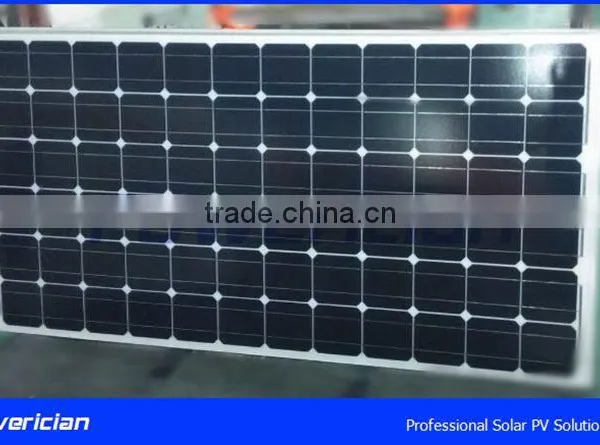

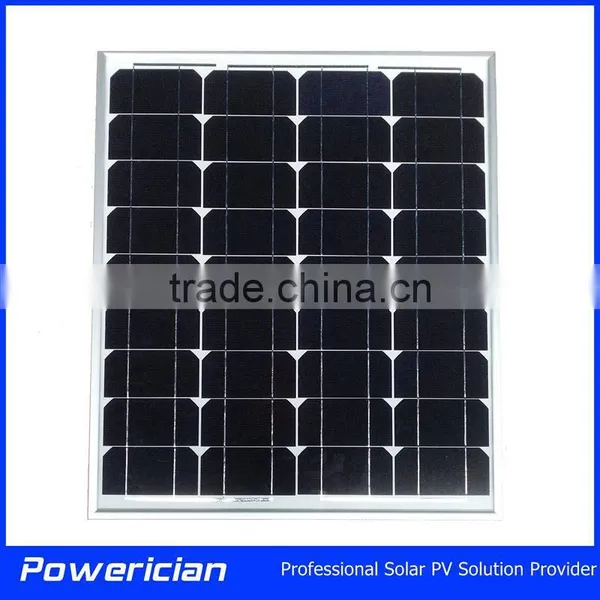

Powerician Monocrystalline PV Module Mini Solar Panels 80Wp 36 Cells For 12V Home Power System
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Features:

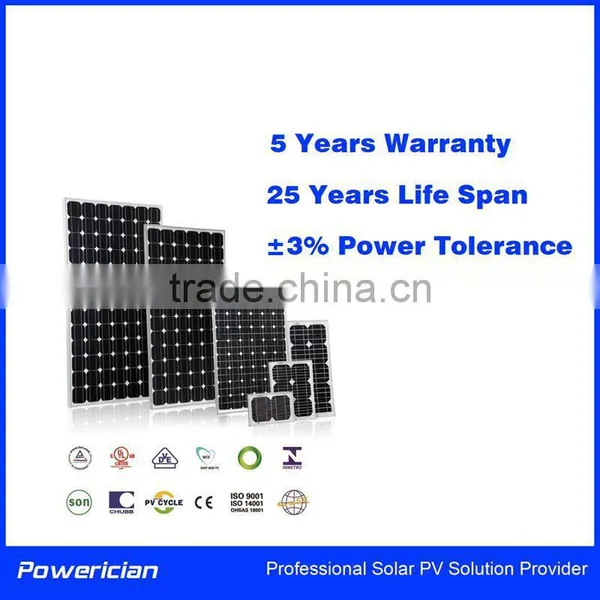

- Power tolerance (-3%~+3%) ensures the stability of power output
- High conversion efficiency based on leading PV techniques.
- Withstand high wind-pressure and snow load
- Easy to install
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification
| Cell Type | Mono Crystalline |
| Number of Cells | 36 |
| Dimensions | 1200Lx550Wx35T mm |
| Weights | 8.2kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
Electric Parameters
| Max Power at STC(Pmax) | 70W | 80w | 85W | 90W | 100W |
| Short Circuit Current(Isc)-A | 4.45 | 5.17 | 5.29 | 5.50 | 6.04 |
| Open Circuit Voltage(Voc)-V | 21.45 | 21.45 | 21.94 | 22.14 | 22.41 |
| Max Power Current(Impp)-A | 4.14 | 4.58 | 4.71 | 4.87 | 5.35 |
| Max Power Voltage(Vmpp)-V | 16.90 | 17.50 | 18.05 | 18.60 | 18.68 |
| Power Tolerance | -3%~+3% | ||||
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.48%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.037%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 2 or 4 |

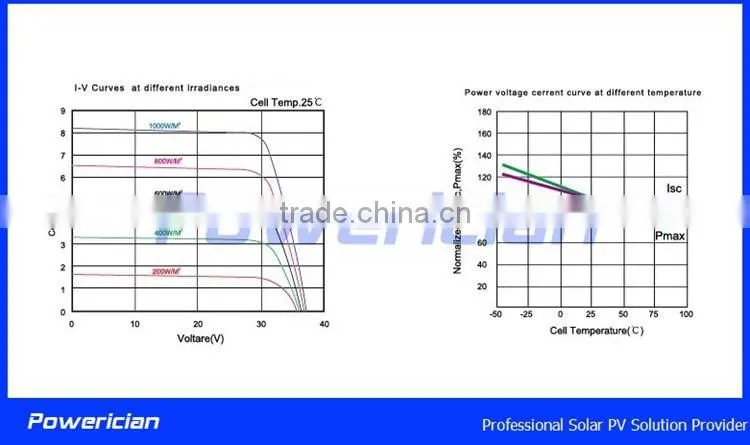

Performance Curve
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
