Powerician 130Wp 36M Mono Solar Panel High-Quality PV Solar Modules Home Solar Power System
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.

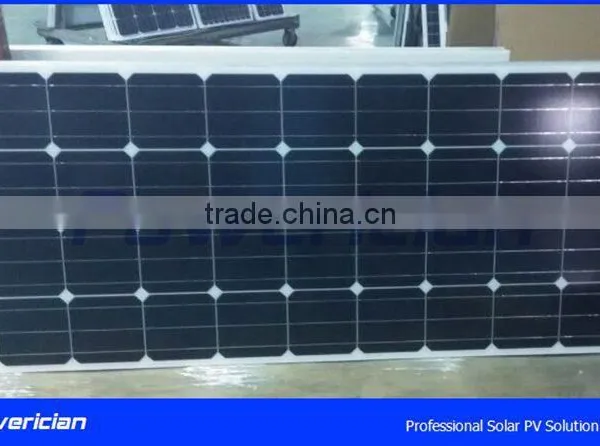

High Quality Solar Mono Panel 130W for SHS Home Power System
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Features:
- Power tolerance (0~+3%) ensures the stability of power output
- High conversion efficiency based on leading PV techniques.
- Withstand high wind-pressure and snow load
- Easy to install
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification
| Cell Type | Mono Crystalline |
| Number of Cells | 36 |
| Dimensions | 1482Lx68Wx35T mm |
| Weights | 12.2kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
High Quality Solar Mono Panel 130W for SHS Home Power System
Electric Parameters
| Max Power at STC(Pmax) | 120W | 130w | 135W |
| Short Circuit Current(Isc)-A | 8.56 | 8.29 | 7.76 |
| Open Circuit Voltage(Voc)-V | 21.38 | 21.25 | 20.97 |
| Max Power Current(Impp)-A | 7.58 | 7.34 | 6.87 |
| Max Power Voltage(Vmpp)-V | 17.82 | 17.71 | 17.48 |
| Power Tolerance | ±3% | ||
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.48%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.037%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 2 or 4 |
High Quality Solar Mono Panel 130W for SHS Home Power System
Performance Curve
High Quality Solar Mono Panel 130W for SHS Home Power System
High Quality Solar Mono Panel 130W for SHS Home Power System
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
