Mechanical Timer

Name: Mechanical Timer
Brand: BAINIAN
SKU: 139331377

Negotiable MOQ: 3000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

BAINIAN

Model Number:

BND-50/N39

Ningbo Bainian Electric Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name BAINIAN

Model Number BND-50/N39

Max. Current 16A

Max. Voltage 240V~

Item No:	BND-50/N39

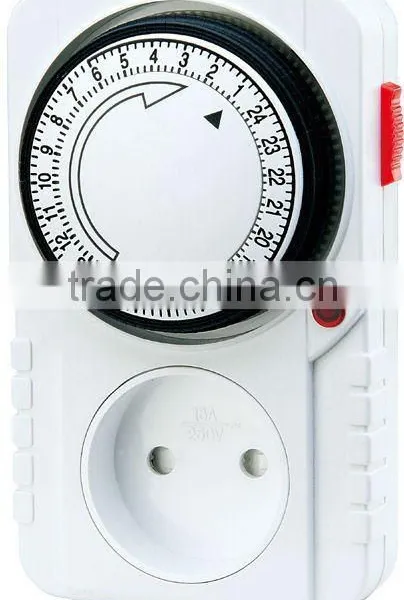

Description :	Norwegian Standard Mechanical Timer,IP20
Specification :	1)With switch knob
	2)With children protector,with loading indicator
	3))240V~, 16A, 50Hz,Maximum switching resistive 3500 W load (e.g. incandescent lamp/bulbs, heating cables, etc.)or 720 W inductive load (e.g. devices with coils, such as transformers, ballasts, etc.)
	4)Precision:+5 minutes ,RH: 0-95%,Working Temperature:-15-80
	5)Used for In-house appliance controlling,Time-controlled switching off ,for example: TV,lighting, heating system ,cooling system, as well as sprinkler systems for terrariums, humidifiers,flow pumps for aquariums,ventilators,dosing and CO2 systems,manual switchover of operation modes Aautomatic, Permanent ON.
	Option	Min.setting Time		Max.setting Time	Program per day
	Option A	15 minutes		24 hours	48 ON/OFF
	Option B	30 minutes		24 hours	24ON/OFF
	Option C	2 hours		7 days	6ON/OFF
Material details :	PC+COPPER
Product size (cm) :	7.5×12.0×9.0
Available colours :	Any soild color
Packing:	Double Blister + Inster card
Certification Marks :	CE
MASTER CARTON				INNER CARTON
Units per CARTON :	48			Units per INNER :		12
Net Weight (kgs) :	10			Net Weight (kgs) :		2
Gross Weight (kgs) :	14			Gross Weight (kgs) :		3
Unit Volume (M³):	0.081			Unit Volume (M³):		0.016
Dimensions (cms) :	L x	W x	H	L x	Wx	H
	62.0	49.0	26.0	47.0	30.0	11.5
CONTAINER LOADABILITY	Units/20' FCL :	17,328PCS		Units/40' FCL :	35,520PCS
