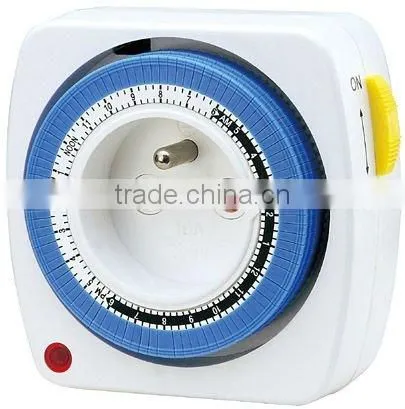

Mechanical Timer

Name: Mechanical Timer
Brand: BAINIAN
SKU: 139331381

Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

BAINIAN

Model Number:

BND-50/F19A

Ningbo Bainian Electric Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB NINGBO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name BAINIAN

Model Number BND-50/F19A

Rated Voltage 230V

Rated Current 50HZ

Item No:	BND-50/F19a
Description :	24 Hours French Standard Mechanical Timer,IP20
Specification :	1)48 ON/OFF per day,With switch knob,With children protector
	2)Min.Setting time: 15 minutes,Max. Setting time:24 hours
	3)230V~, 16A, 50Hz,Maximum switching resistive 3500 W load (e.g. incandescent lamp/bulbs, heating cables, etc.)or 500 W inductive load (e.g. devices with coils, such as transformers, ballasts, etc.)
	4)Precision:+5 minutes ,RH: 0-95%,Working Temperature:-15-80
	5)Used for In-house appliance controlling,Time-controlled switching off ,for example: TV,lighting, heating system ,cooling system, as well as sprinkler systems for terrariums, humidifiers,flow pumps for aquariums,ventilators,dosing and CO2 systems,manual switchover of operation modes Aautomatic, Permanent ON.
Material details :	PC+COPPER
Product size (cm) :	8.5×8.2×8.0
Available colours :	Any soild color
Packing:	Double Blister + Inster card
Certification Marks :	CE,NF
MASTER CARTON				INNER CARTON
Units per CARTON :	48			Units per INNER :		12
Net Weight (kgs) :	7.5			Net Weight (kgs) :		1.8
Gross Weight (kgs) :	11			Gross Weight (kgs) :		2
Unit Volume (M³):	0.068			Unit Volume (M³):		0.014
Dimensions (cms) :	L x	W x	H	L x	Wx	H
	56.5	42.5	28.5	55.0	20.0	13.0
CONTAINER LOADABILITY	Units/20' FCL :	20,160PCS		Units/40' FCL :	41,280PCS
