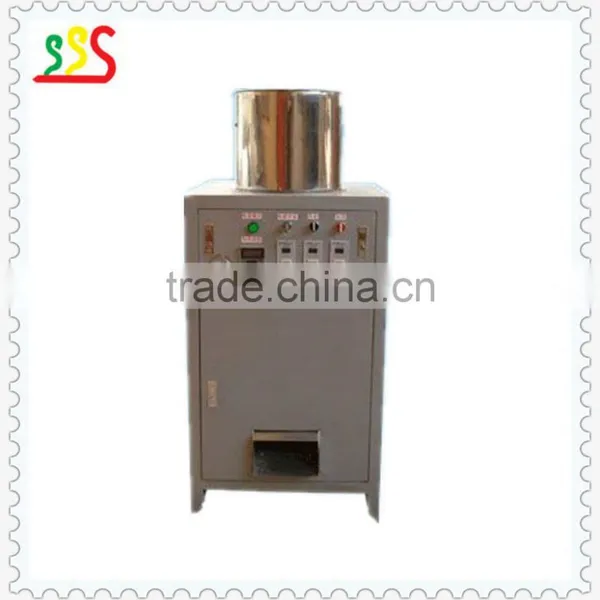

Help CenterDry Type Automatic Garlic Peeling Machine
Related Products
-
Export to Malaysia Zambia Indonesia Turkey Iran 2014 Latest Type Supplier Automatic SS Multi-functional Washing MachineUS$ 2,000 - 20,000MOQ: 1 Set -
the Newest Type High Capacity&competitive Price Automatic SS Vegetable and Fruit Cleaning/Washing MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
Export to India Wave Turning Type High Capacity Competitive Price Automatic SS Customized Wind Drying MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
the Newest Wave Turning Type High Capacity&competitive Price Automatic SS Washing MachineUS$ 2,000 - 20,000MOQ: 1 Set
-
Stainless Steel Potato Washing and Peeling MachineUS$ 200 - 2,000MOQ: 5 Sets
Specifications
1.This machine should be equipped with an air compressor2.The cyclone peels off skin of onions smoothly, with low damage rate.
Production Description:
This machine should be equipped with an air compressor. Because of the strong air flow produced by air compressor,
the cyclone peels off skin of onions smoothly, with low damage rate. Theres also a heating system inside the machine to make the surface of garlic skin to be dry enough even though in wet weather. It is suitable for markets and those garlic processing industries.
Advantages:
1.A highly efficient dry peeling machine.(Garlic is dry)
2.The principles of the machine applying advanced air compressing technique to peel off naturally, which may guarantee the quality of garlic clove and the highest garlic peeling rate. Due to it is not through machine colliding and squeezing it thus will not cause damage to the garlic.
3. Completely automatic dry-peel operation Also can peel scallion.
4. Useful, energy saving compact, high production efficiency, easy to maintaining and cleaning and low malfunction rate.
5. Automatic control and in feed device, easy to operate.
6. Can peel different size of garlic, product meets the health standard.
7. Suitable complete production line or working on single.
8. Without damage, the garlic has long preservation.
9. Production output according varieties from breed, season and nature of garlic, production 50~100 kg/hr approximate. Suitable for small capacity processor or user such as restaurant, Hotel, Super Market...etc.
10. Air compressor (0ption) apply for exhausting is 900L/min or 7.5KW over.
11. Directly feed into the peeling proceed without drying storage tank to keep warm and dry. User could insolate under then sunlight or keep in the dryer to dry the skin.
12. Be suitable for garlic and small onion.
13. All patent rights for multi-countries reserved and any counter felt with are taken into count.

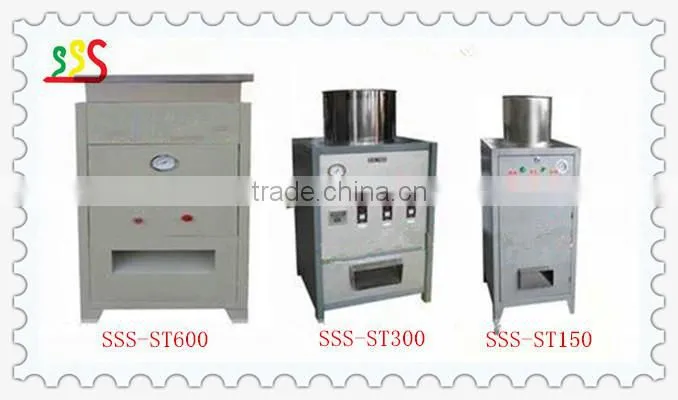

Model |
SSS-ST80 |
SSS-ST150 |
SSS-ST300 |
SSS-ST600 |
Capacity |
80-100kg/h |
150kg/h |
250-300kg/h |
500-600kg/h |
Power |
0.75kw/220v |
1.7kw/220v |
3.2kw/220v |
4.7kw/220 |
weight |
55kg |
80kg |
130kg |
185kg |
Dimension (mm) |
570*600*1300 |
640*600*1300 |
960*710*1660 |
1100*920*1680 |
Need air rate flow |
1.06m³/min |
1.06m³/min |
1.6m³/min |
3.2m³/min |
Need air pressure |
0.8-0.9Mpa |
0.8-0.9Mpa |
0.8-0.9Mpa |
0.8-0.9Mpa |
Take off net rate |
95%-98% |
95%-98% |
95%-98% |
95%-98% |
air compressor power |
5.5kw |
7.5kw |
11kw |
22kw |
Factory price |
usd |
usd |
usd |
usd |
All price without air compressor , you can match the air compressor by yourself | ||||
