Specifications
automatic packaging machine1.Space-saving, less manpower
2.Touch screen control
3.Can be adjustable
Automatic Packaging Machine
1. About Machine:
suitable for packing solid goods such as instant noodle, ice cream, biscuits, moon cakes, chocolate, wafer, yolk style, egg roll, bread, sausage, nori, frozen foods, medicines, medicine tablets(blister),infusion bag(bottles), soaps, toilet soaps,mosquito repellent, paper towel, toilet paper, cards, adhesive tape, disposible tableware(forks and knives).
The first generation of double line instant noodles packaging machine: 320 bags/min
The second generation of double line instant noodles packaging machine: 380 bags/min
Now the third generation of double line instant noodles packaging machine: 460 bags/min
2. Main features:
1) 4 servo motors, no mechanic cam, low noise, no vibration no noodle scraps dropped on conveyor chains.
2) Double knives dual lanes rotating speed 110rpm production capacity 440 bags/min.
3) Upper tube conveyor belt in moving presses spice bags resulting no cutting spice bays.
4) Automatic film splicer.
5) Option automatic servo motors aligning system saves workers.
3.Technical parameters:
| MODEL | KB37×2A | KB37×2B | KB37×2B2 |
| Max.Film Width mm | 370×2 | 370×2 | 370×2 |
| Packing Speed bags/min | 140-360 | 140-440 | 140-460 |
| length of bag mm | 70-340 | 70-440 | 100-520 |
| packing width mm | 15-140 | 15-140 | 15-140 |
| packing height mm | <40 | <60 | <85 |
| Central distance lf sealing shaft mm | 99 | 120 | 150 |
| Central distance of conveyor chains mm | 380 | 380 | 380 |
| Nominal power Kw | 5.8 | 5.8 | 5.6 |

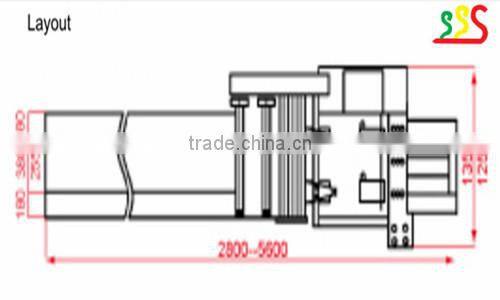

| dimension m | 5.6-3.6×1.35×1.65 | 4.6-3.6×1.35×1.65 | 4.6-3.6×1.35×1.65 |
| Weight Kg | ≈1100 | ≈1100 | ≈1100 |
4.Optional devices:
1) Hot roll date batch printer.
2) Various automatic feeding systems.
3) Gusset device.
4) Waste-film cutting(and collecting device at center sealer).
5) Gas flushing device.
6) Alcohol-spraying device.
7) Automatic film splicer.
8) Shrink tunnel.
5.Note:
1) Different countries and regions require different Voltage.
2) Some parameters or function will be changed according to different packaging requirements.
3) Symmetrical type is available for easy operation.

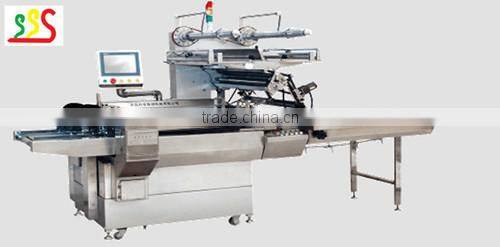

6. More pictures:
