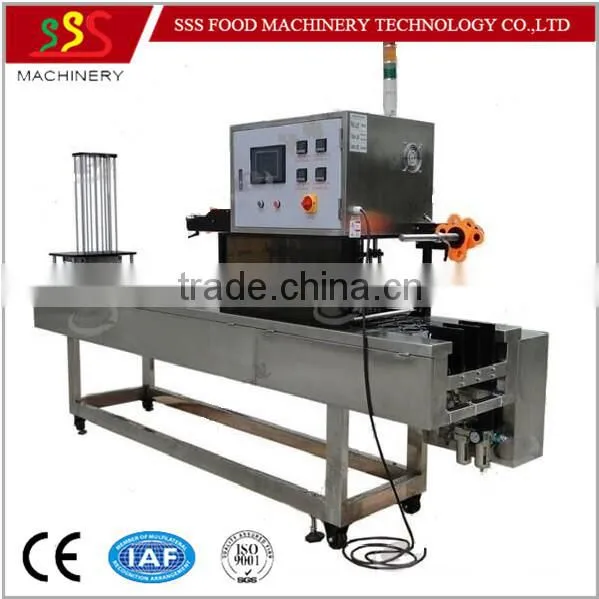

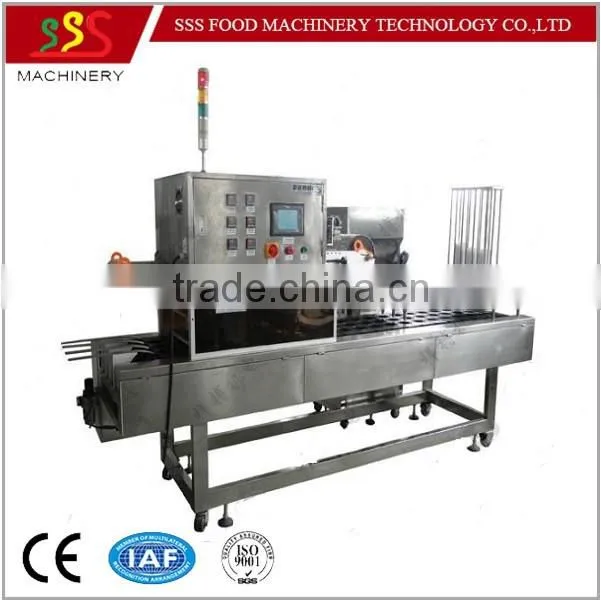

multi-function vacuum filling machine
TECHNICAL DATA
MODEL |
SSS-XBBH-95-1 |
SSS-XBBH-95-2 |
SSS-XBBH-95-3 |
SSS-XBBH-95-4 |
VOLTAGE |
AC220V / 50Hz |
AC220V / 50Hz |
AC380V / 50Hz |
AC380V / 50Hz |
POWER |
2000W |
2000W |
5400W |
6000W |
AIR PRESSURE |
0.4~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
0.4~0.6MPa |
SPEED |
900N/H |
1800 N/H |
2700 N/H |
3600 N/H |
DIMENTION |
1000(L)×1000(W) ×1400 (H)mm |
3000(L)×1200(W)× 1700 (H)mm |
3000(L)×800(W)× 1600 (H)mm |
3500(L)×900(W)× 1700(H)mm |
WEIGHT |
350 KG |
300 KG |
350 KG |
350 KG |
DESCRIPTION
1) High cleanliness working environment in clean room,automatic operation, saving labor, and affordable.
2) Reserved filling, drop,cup supply and the rear section expansion mechanism,can be customized.
3) The full range of models ECU adopt CE standard manufacture and design, all components are used by CE or UL certified products. In addition to electric motors and other transmission and heat sealing, the control unit will be taken DC24V voltage control, to prevent leakage and risk control personnel inadvertently.
4) Adopt OMRON or PROFACE computer controlled man-machine screen and MITSUBISHI Programmable Logic Controller (PLC).
5) The drive: The motor products through CE certification, the bottom mold drive chain to use in Japan stainless steel chain; continuous operation, the upper and lower mold synchronous connections, filling jitter-free, long life of the machine.
6) A computer touch screen, the whole machine production and fully display the operating status (each unit manual / automatic operation, the actuator unit interval setting, the parameter setting, PLC motion I / O for real time monitoring, the number of production batches setting, temperature setting real-time monitoring and low temperature alarm, abnormal message and resume ...), easy to operate.
7) Thin film sealing eye correction automatically track position, precise control of each product appearance quality.
8) Provide 10 groups constituency production model parameter memory, flexible design, which will help to quickly select a different product series production.
9) The electric unit waterproof seal leakage power and short-circuit, high security and to ensure the quality of the sealing and electric life.
10) The whole machine stainless steel pipe welding, high-rigidity body robust health and safety, no foreign matter in the Cleaning no residual risk.
11)Continuous filling technology, the filling process without interrupting the operation of the constant velocity conveyor belt, filling and packaging to ensure product quality. Has always been of automatic operation, saving labor, and affordable.
APPLICABLE PRODUCTS
Cup yogurt, fresh cheese, ice cream, pudding, jelly, jelly, coffee, juice, paste, jelly-like filling all kinds of food
