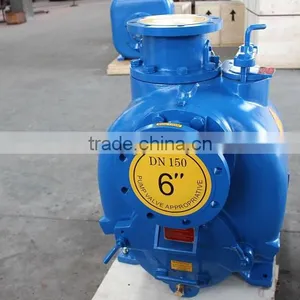

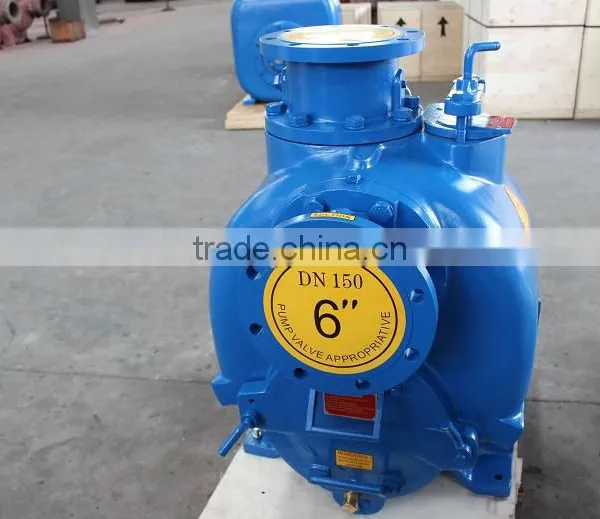

Help Center6''self Priming Solid Handing Mud Pump (JT)
Related Products
-
8inch Self Priming Drilling Mud Pump (JT)US$ 338.5 - 3,858MOQ: 1 Set -
Model JT-2(2inch) Self Priming Wet Prime Pump for SewageUS$ 338.5 - 3,858MOQ: 1 Set
-
6inch Diesel Engine Self Priming Mud PumpUS$ 338.5 - 3,858MOQ: 1 Set
-
4 Inch High Capacity Sewage Pump With Tank (JT)US$ 338.5 - 3,858MOQ: 1 Set
-
Non Clog Self Priming Sewage Pumps/Trash PumpsUS$ 1 - 100,000MOQ: 1 Set
Diesel Engine Irrigation Water Pump Sets (JT&JU Series)
Model: JT-2, JT-3, JT-4, JT-6, JT-8, JT-10, JT-12, JU-3, JU-4, JU-6
(Model meaning: E.G. JT-2 means 2inch for inlet and 2inch for outlet diameters)
Flow Rate:2-1275m3/h
Head:2-62m
Speed: 650rpm-2150rpm
Max.Suction Lift: 7.6m
Max.Passing Solid: 76.2mm
Range of Power: 1-125hp
Net.Weight (Bare Pump): 92-998kgs
Warranty Time: The whole pump is guaranteed within 1year, the pump's spare spare parts is 3 months
Delivery Time: Bare Pump(5-7days) Pump with Motor(10-25days)
PS:According to your quantity, the delivery time will be different

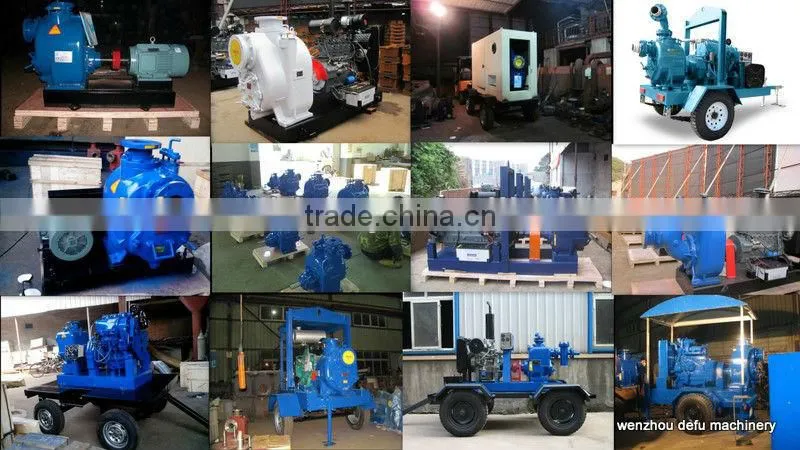

We can supply bare pump, pump with electric motor, pump with diesel engine, pump complete set mounted on trailer, diesel engine, pump spare parts and other accessories, u can find these pictures as below Order Casing parts.
Parameters Table
Click each model to get more information!
| MODEL | Size | R.P.M. R/MIN | MAX FLOW (m3/H ) | Max Head (m) | Suction Lift ( m ) | Power ( HP) | MAX SOLIDS mm | NET WEIGHT kg | GROSS WEIGHT kg |
| JT-2 | 2 inch | 1150-2900 | 46 | 36 | 7.6 | 1 – 10 HP | 44.45 | 92 | 114 |
| JT-3 | 3 inch | 650-2150 | 107 | 35 | 7.6 | 1 – 20 HP | 63.5 | 183 | 205 |
| JT-4 | 4 inch | 650-1950 | 163 | 36 | 7.6 | 1 – 30 HP | 76.2 | 259.5 | 280 |
| JT-6 | 6 inch | 650-1550 | 330 | 33 | 7.6 | 2 – 40 HP | 76.2 | 364 | 391 |
| JT-8 | 8 inch | 650-1350 | 600 | 34 | 7 | 7.5 – 75 HP | 76.2 | 581 | 634 |
| JT-10 | 10 inch | 650-1450 | 775 | 40 | 6.7 | 10 – 100 HP | 76.2 | 635 | 663 |
| JT-12 | 12 inch | 650-1250 | 1275 | 42 | 4.9 | 20 – 125 HP | 50 | 998 | 1066 |
| JU-3 | 3inch | 850-2150 | 85 | 62 | 7.6 | 1.5 – 25 HP | 20.63 | 214 | 225 |
| JU-4 | 4 inch | 850-2150 | 148 | 60 | 5.2 | 3 – 40 HP | 28.57 | 272 | 297 |
| JU-6 | 6 inch | 850-1950 | 308 | 58 | 4.5 | 5 – 75 HP | 31.75 | 413 | 437 |
Feature :
1. Hing and dry mounting for fast and easy service and maintenance
Because WenZhou DEFU centrifugal pumps are self -priming , they can be mounted high and dry at floor level , with only the suction line down in the liquid . Service or maintenance can be performed quickly and simply with common hand tools and without having to pull the pump . There are no long drive shafts to install and align , no hoists or cranes required , and no need for service personnel to enter the pump
2. Clogging is kept to a minimum , so downtime is virtually eliminated .

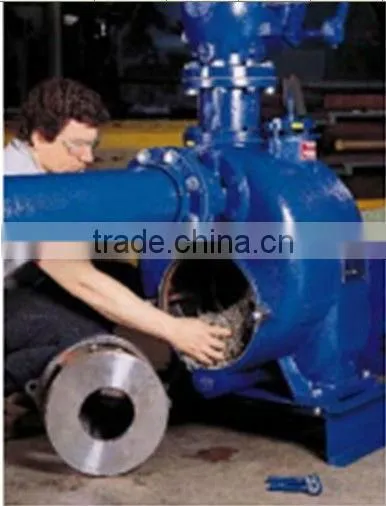

DEFU solids handing , Self priming pumps help keep productivity high because they are designed for virtually clog-free performance . Solids handing pump models will handle spherical solids up to 3 inch (76mm) in diameter and allow solids to pass though the entire pump , not just the impeller . If a clog does occur , it can be eliminated quickly and essily by opening the coverplate , removing the clog . and returning the pump to normal operation , all in just a few minutes' time .
3. Service is simple ,fast and economical

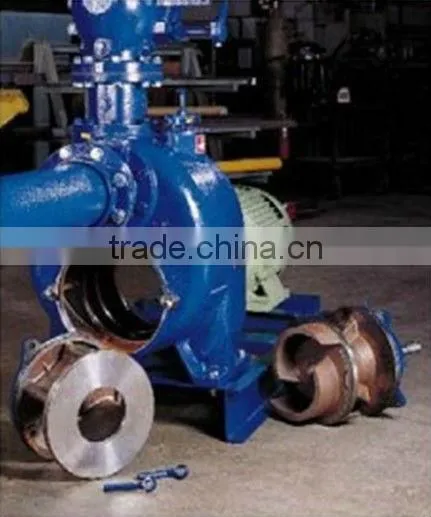

WENZHOU DEFU solids handing pump models are designed to make servicing a fast ,simple and cost-efficient process. The removable coverplate allows for convenient inspection or serivece of the impeller , sea and wearplate , with no special tools required . If the pump shaft or bearings need service , the entire rotating assembly can be removed without disturbing the pump casing or piping . Plus , the rotating assembly is sealed with an O- ring which permits external clearance adjustments .
4. Automatic priming means dependable peformance
WenZhou DEFU Self-priming pumps are a sensible solution for industry and municipalities because they require very little attention , resulting in significant savings or maintenance time and money . Properly applied and installed , and after an initial priming . It will continue to reprime automatically , In fact , JT series pumps will reprime with only a patially filled pump casing and a completely dry suction line .

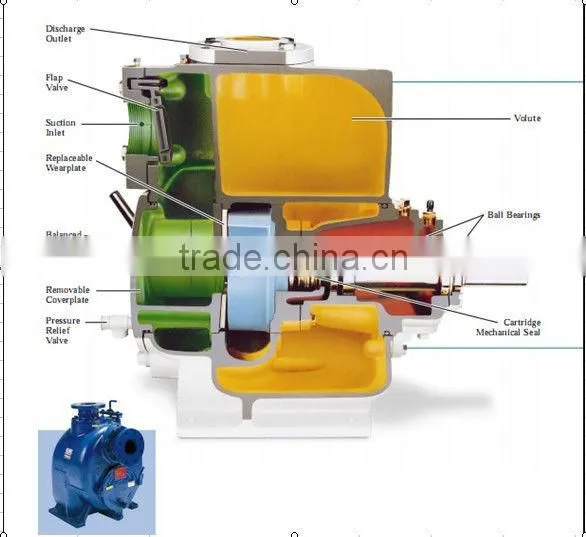

Structure

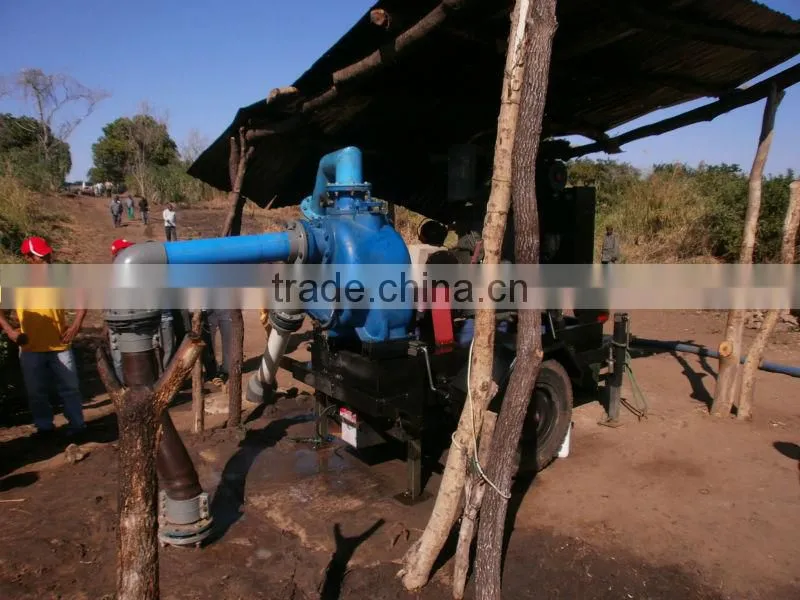

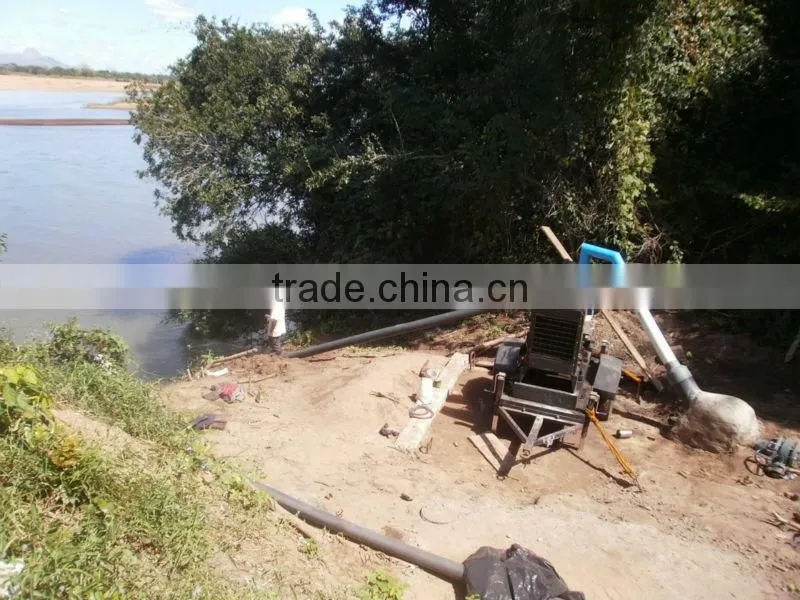

Application Casing
Order Casing

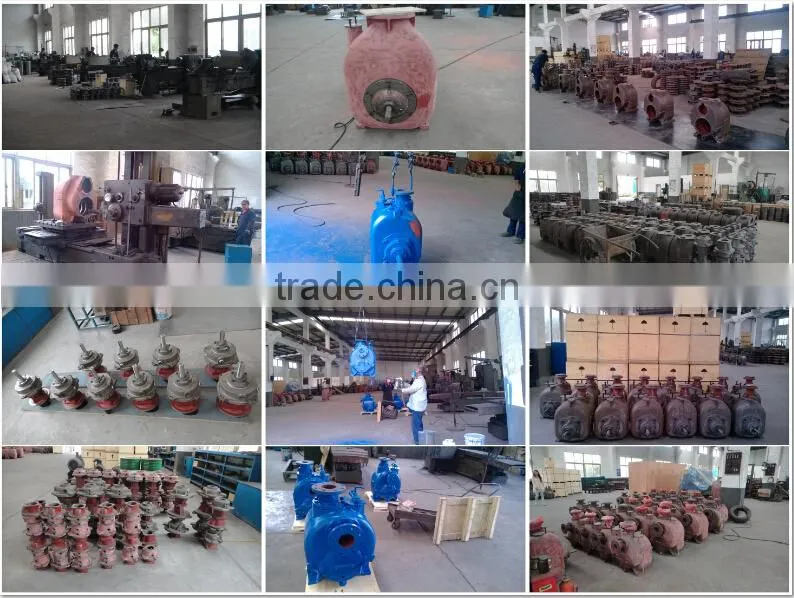

Welcome To Our Factory
Line of Production For Pumps

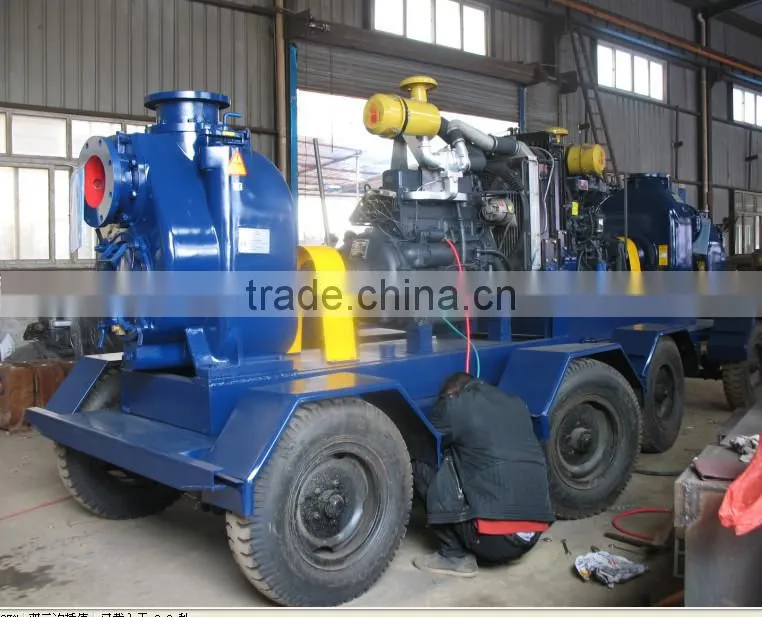

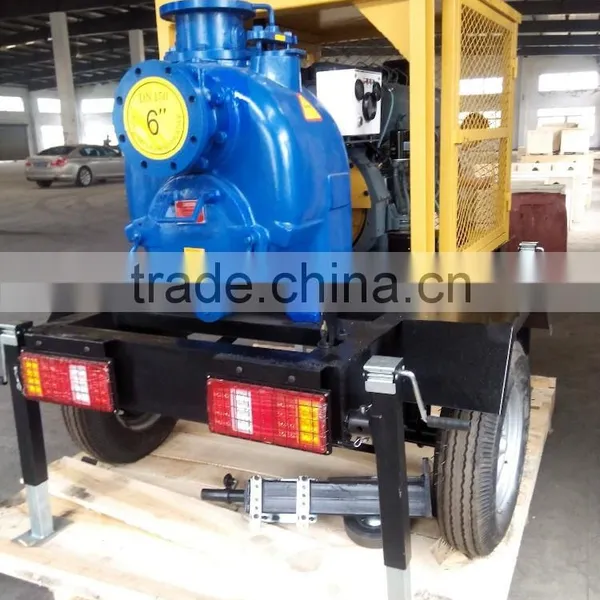

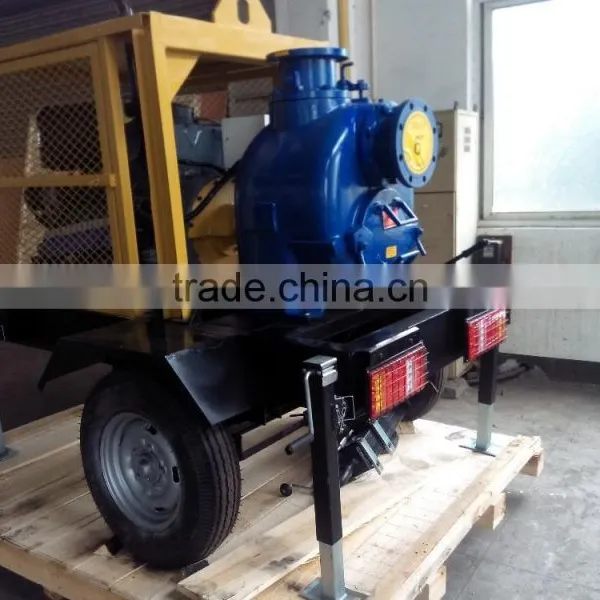

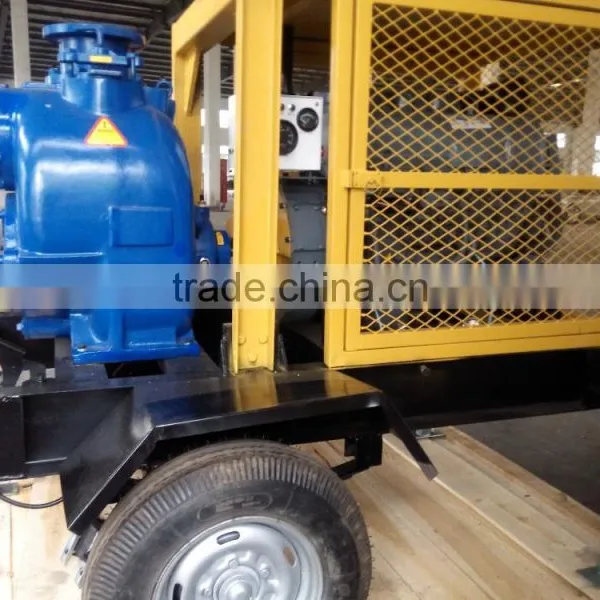

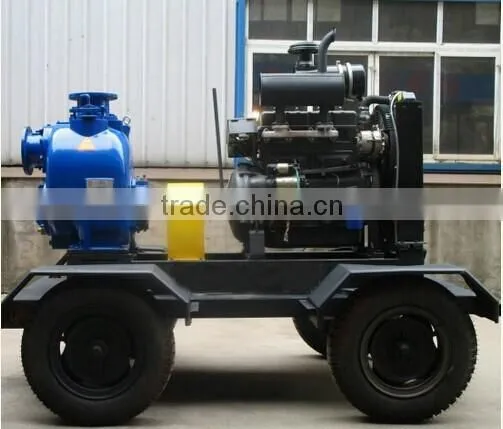

Pump with diesel engine mounted on four wheels trailer

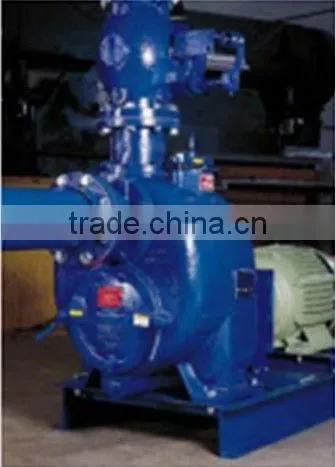

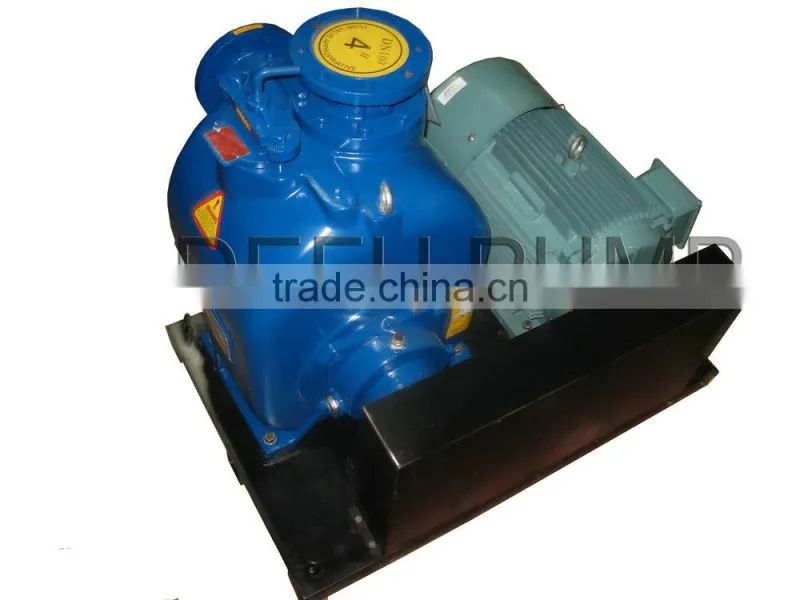

Pump with electric motor
