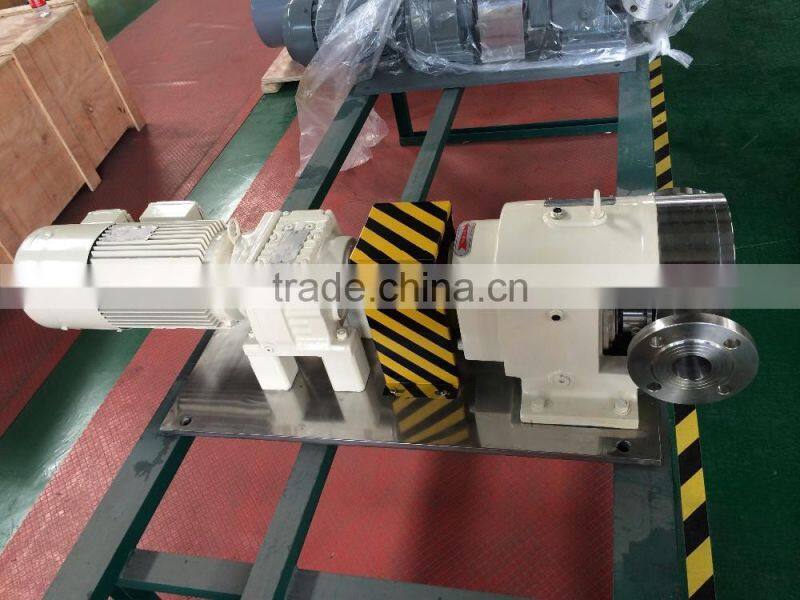

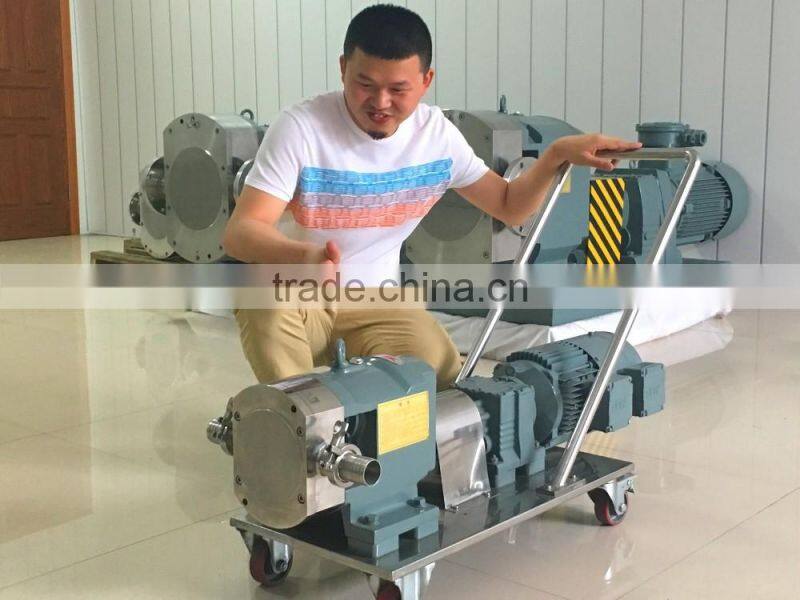

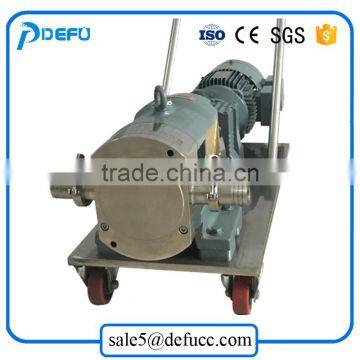

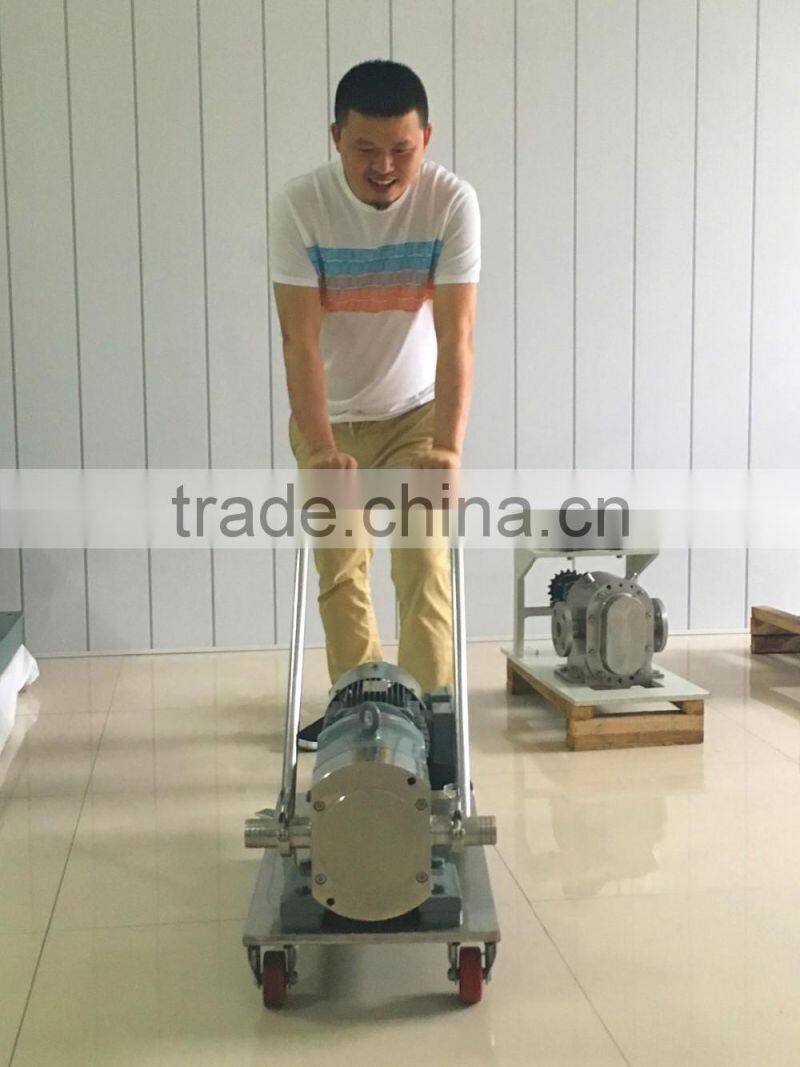

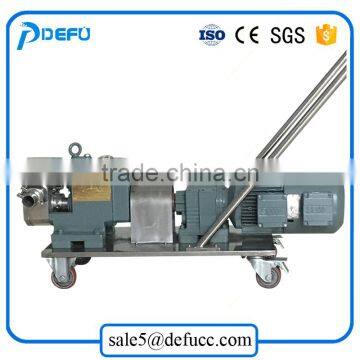

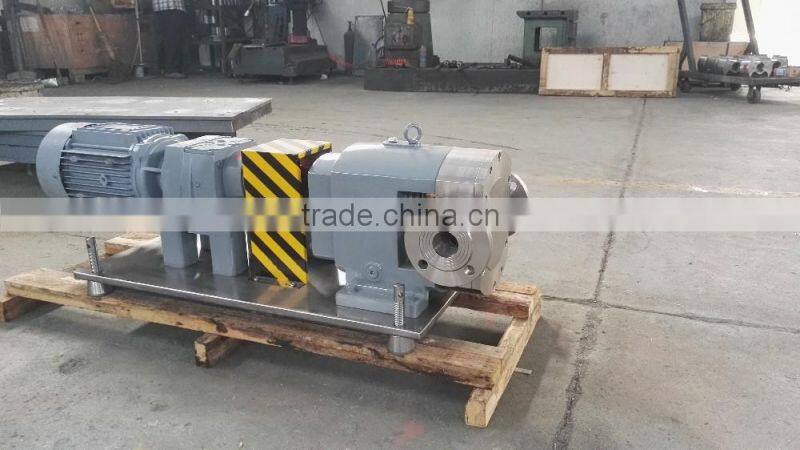

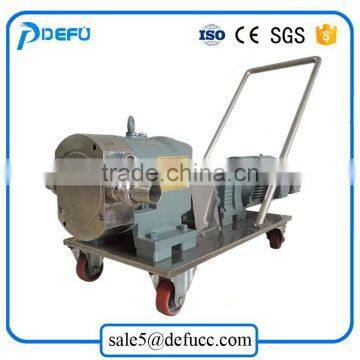

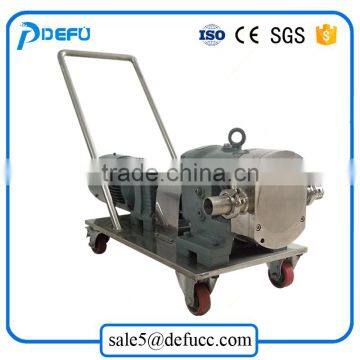

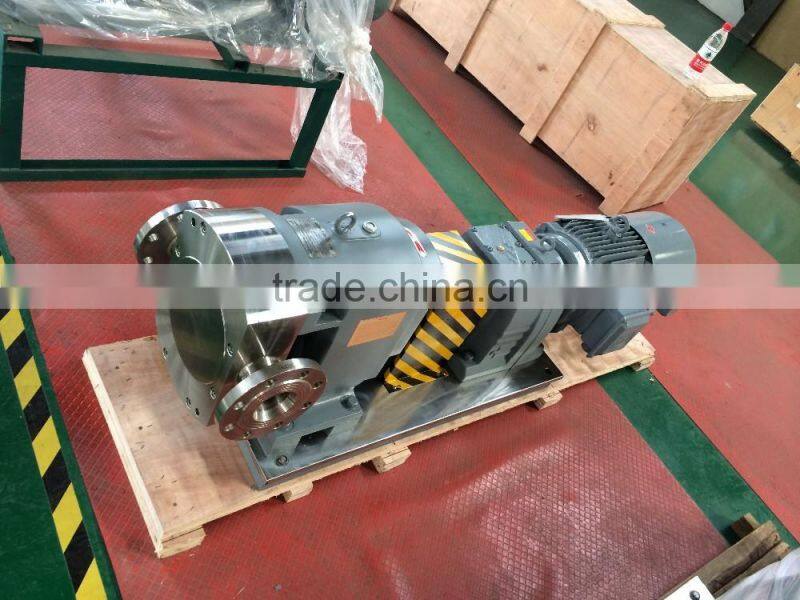

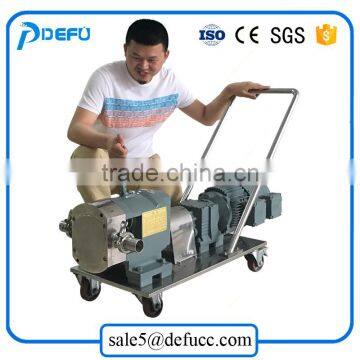

high viscosity liquid transfer food rotary lobe pump
Rotary Lobe pumps are used in a variety of industries including food, beverage, pharmaceutical, cosmetics, pulp and paper, coating and painting, oil and gas, daily chemical, and biotechnology. They are popular in these diverse industries because they offer super sanitary qualities, high efficiency, reliability, corrosion resistance and good clean-in-place and steam-in-place (CIP/SIP) characteristics.
Rotary lobe pumps can handle slurries, pastes, and a variety of liquids. If wetted, they offer self-priming performance. A gentle pumping action minimizes product degradation. They also offer continuous and intermittent reversible flows and can operate dry for brief periods of time. Flow is relatively independent of changes in process pressure, too, so output is relatively constant and continuous.
| 0.6 MPA | |||||||||
| Item No. | Model | Inlet/outlet Dia. | Displacement | Flow rate | Pressure | Suction pressure | power | Rotation speed | |
| mm | inch | (L/r) | M3/H | mpa | mpa | kw | rpm | ||
| 1 | 25BV6-2 | 25 | 1 | 0.15 | 2 | 0.1-0.6 | -0.1 | 0.25-1.5 | 20-600 |
| 2 | 40BV6-5 | 40 | 11/2 | 0.32 | 5 | 0.1-0.6 | -0.1 | 0.37-2.2 | 20-550 |
| 3 | 50BV6-10 | 50 | 2 | 0.65 | 10 | 0.1-0.6 | -0.1 | 2.2-4 | 20-550 |
| 4 | 65BV6-15 | 65 | 2 1/2 | 1.1 | 15 | 0.1-0.6 | -0.1 | 3-5.5 | 20-550 |
| 5 | 65BV6-20 | 65 | 2 1/2 | 1.74 | 20 | 0.1-0.6 | -0.1 | 4-7.5 | 20-550 |
| 6 | 80BV6-30 | 80 | 3 | 2.5 | 30 | 0.1-0.6 | -0.1 | 5.5-11 | 20-550 |
| 7 | 80BV6-40 | 80 | 3 | 3.65 | 40 | 0.1-0.6 | -0.1 | 7.5-15 | 20-550 |
| 8 | 125BV6-50 | 125 | 4 1/2 | 4.6 | 50 | 0.1-0.6 | -0.1 | 7.5-18.5 | 20-550 |
| 9 | 125BV6-60 | 125 | 4 1/2 | 5.19 | 60 | 0.1-0.6 | -0.1 | 11-22 | 20-550 |
| 10 | 125BV6-80 | 125 | 4 1/2 | 7 | 80 | 0.1-0.6 | -0.1 | 11-30 | 20-550 |
| 11 | 150BV6-120 | 150 | 6 | 11.4 | 120 | 0.1-0.6 | -0.1 | 15-75 | 20-420 |
| 12 | 150BV6-150 | 150 | 6 | 12.5 | 150 | 0.1-0.6 | -0.1 | 18.5-75 | 20-420 |
| 13 | 175BV6-200 | 175 | 6 1/2 | 16.7 | 200 | 0.1-0.6 | -0.1 | 22-90 | 20-420 |
| 14 | 200BV6-250 | 200 | 8 | 23.2 | 250 | 0.1-0.6 | -0.1 | 22-110 | 20-420 |
| 15 | 225BV6-300 | 225 | 8 1/2 | 27.8 | 300 | 0.1-0.6 | -0.1 | 30-132 | 20-420 |
| 1.2 MPA | |||||||||
| Item No. | Model | Inlet/outlet Dia. | Displacement | Flow rate | Pressure | Suction pressure | power | Rotation speed | |
| mm | inch | (L/r) | M3/H | mpa | mpa | kw | rpm | ||
| 1 | 25BV12-2 | 25 | 1 | 0.15 | 2 | 0.7-1.2 | -0.1 | 0.75-2.2 | 50-600 |
| 2 | 40BV12-5 | 40 | 11/2 | 0.32 | 5 | 0.7-1.2 | -0.1 | 1.5-4 | 50-600 |
| 3 | 50BV12-10 | 50 | 2 | 0.65 | 10 | 0.7-1.2 | -0.1 | 4-7.5 | 50-600 |
| 4 | 65BV12-15 | 65 | 2 1/2 | 1.1 | 15 | 0.7-1.2 | -0.1 | 5.5-11 | 50-600 |
| 5 | 65BV12-20 | 65 | 2 1/2 | 1.74 | 20 | 0.7-1.2 | -0.1 | 7.5-15 | 50-600 |
| 6 | 80BV12-30 | 80 | 3 | 2.5 | 30 | 0.7-1.2 | -0.1 | 11-22 | 50-600 |
| 7 | 80BV12-40 | 80 | 3 | 3.65 | 40 | 0.7-1.2 | -0.1 | 15-30 | 50-600 |
| 8 | 125BV12-60 | 125 | 4 1/2 | 5.19 | 60 | 0.7-1.2 | -0.1 | 22-45 | 50-600 |
| 9 | 150BV12-120 | 150 | 6 | 11.4 | 120 | 0.7-1.2 | -0.1 | 45-90 | 50-600 |
| 10 | 175BV12-200 | 175 | 6 1/2 | 16.7 | 200 | 0.7-1.2 | -0.1 | 90-185 | 50-600 |
| 11 | 225BV12-300 | 225 | 8 1/2 | 27.8 | 300 | 0.7-1.2 | -0.1 | 132-150 | 50-600 |
1. Q: Whats the MOQ ?
A: 1 set for regular product ,the special one we need to discuss.
2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.
For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.
3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set , the deliver time is base on the shipping date and your order by sea.
