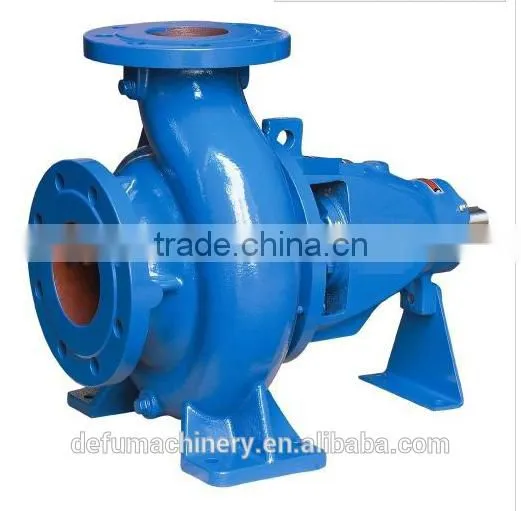

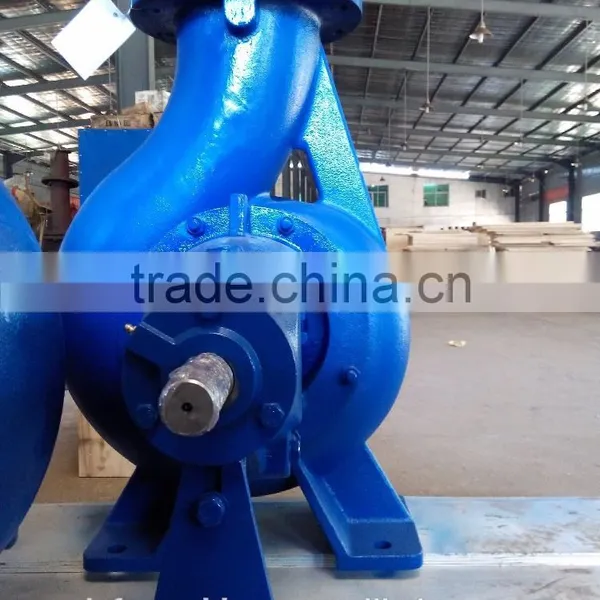

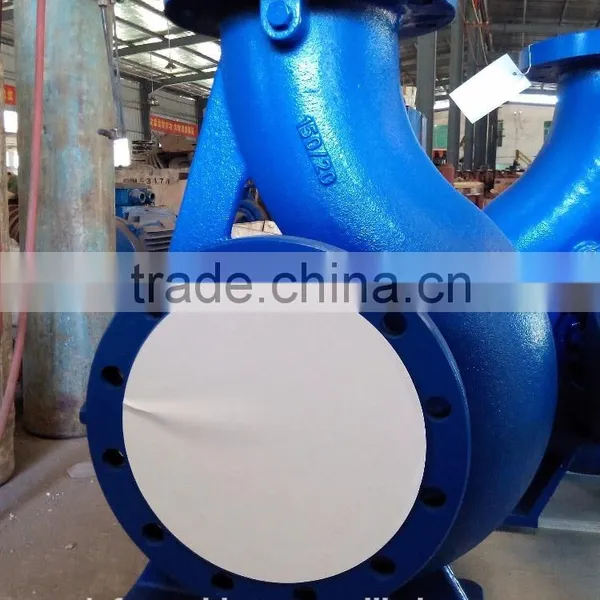

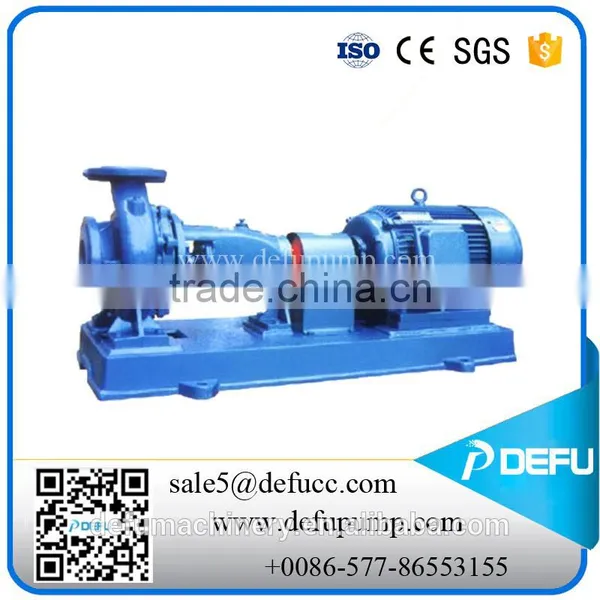

24hp electric water pump for City water supply
our pump complies fully to the European Standard BS EN733 / DIN24255 of performance and dimensions. They are used for pumping clean water or liquids similar to water, achieving wide application in plants, mines, city water supplies, air-conditioning coolers, firefighting system and irrigation.
Design |
Performance and dimensions referring to BS EN733/ DIN24255 |
Structure |

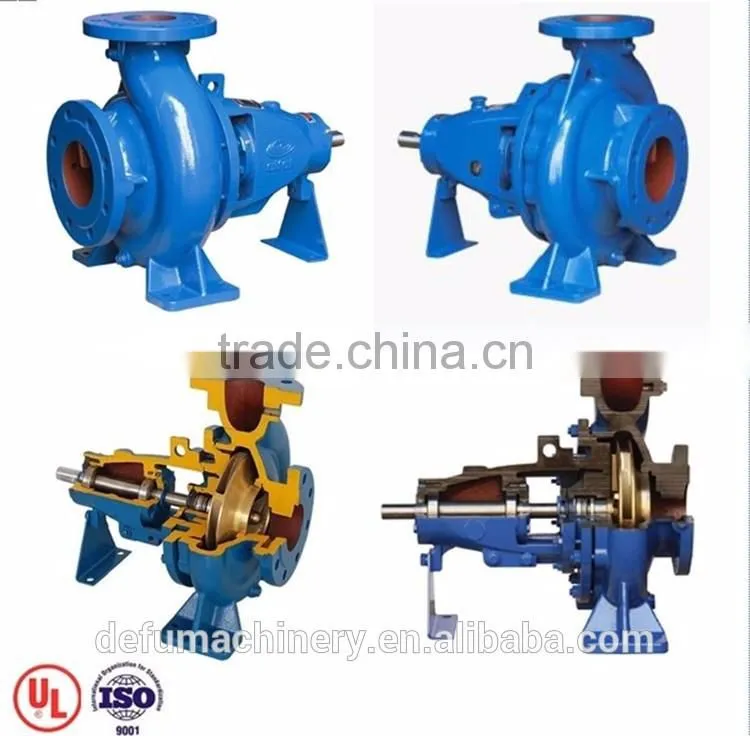

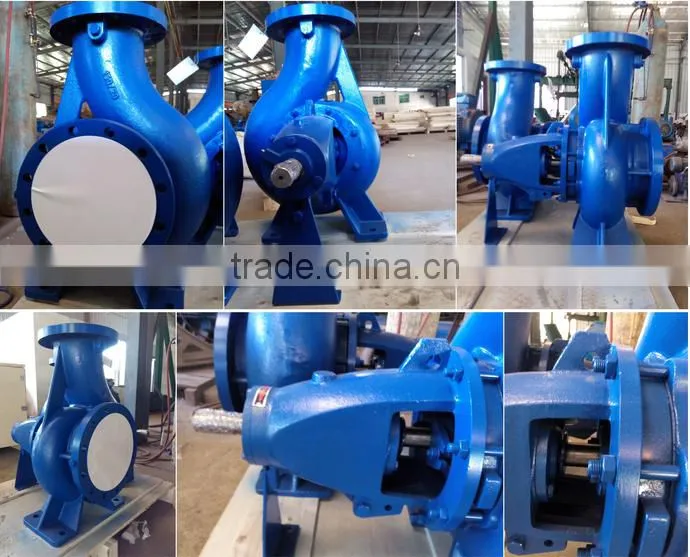

Horizontal, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing, Back pull-out, Centrifugal Pump |
Flange |
DIN2501 (ISO7005.2 / GB/T17241.6 PN1.6) standard, ANSI B16.5 Class150lb optional |
Rotation |
Clockwise viewing from the drive side |
Material
Casing |
Cast Iron standard, Ductile Iron, Stainless Steel optional |
Impeller |
Bronze standard, Cast Iron, Stainless Steel optional |
Shaft |
ASTM420 standard, ASTM304, ASTM316, ASTM1045 optional |
Shaft Seal |
Mechanical Seal standard (Carbon-Ceramic/Viton standard, Caron-Sic/Viton optional) , Gland Packing optional |
Operating Range
Flow Rate (Q) |
2-1100m3/h |
Head (H) |
2-150m |
Speed |
1450 or 2900 rpm (50Hz) 1750 or 3500 rpm (60Hz) |
Temperature |
-10℃ to 105℃ |
Working Pressure |
10 Bar standard, 16 Bar on request |

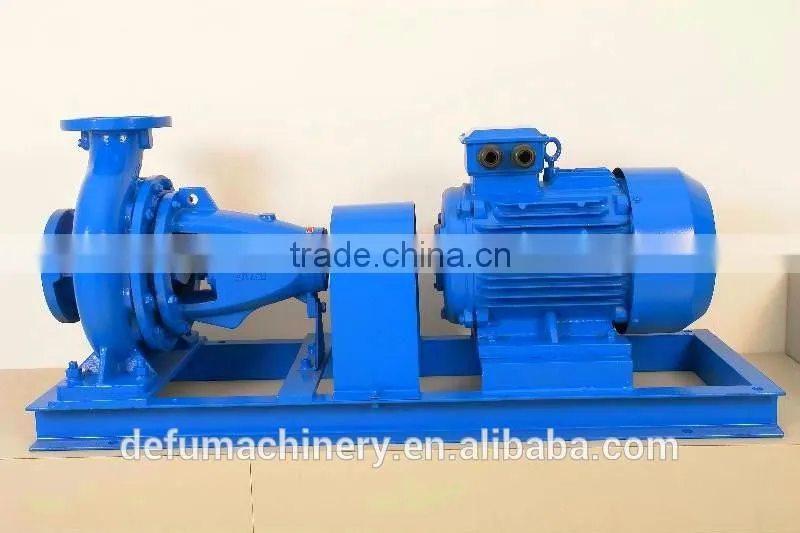

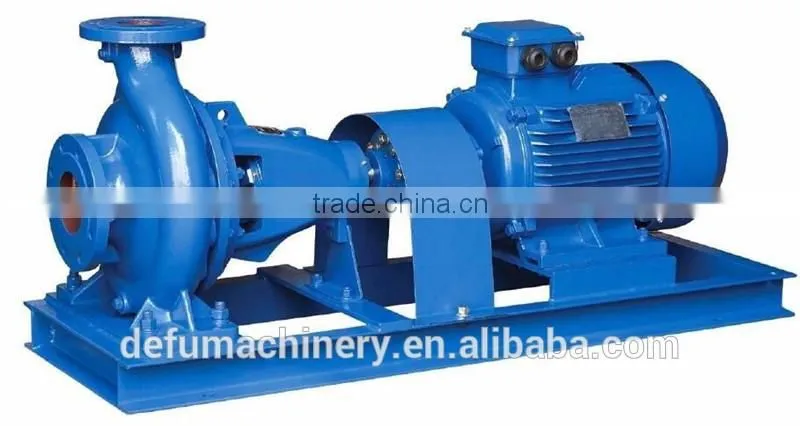

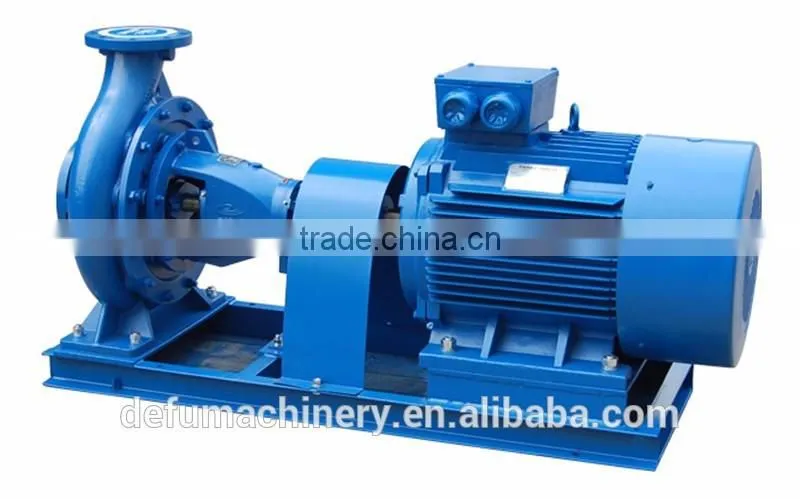

pump with elestric:
Defu Machinery is an Enterprise involved in designing ,developing , manufacturing and selling water pumps ,
Including self priming pump , centrifugal pump , diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial chain , DEFU has established its production base in Shanghai ,Hubei and Shandong province .
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do u make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If u have any other questions,pls contact us.
