Horizontal split case centrifugal pump , centrifugal water pumps , centrifugal pumps price
1.Brief Introduce :
TPOW series double suction centrifugal water pump is single-stage double-suction split volute casing centrifugal pump and is specially designed and manufactured by our company which based on the market requirement and introducing in German lead technology. Pump through original impeller and modified impeller and cutting, the pump is with full and broad, high efficiency. In the performance scope, according to consumers’ needs, may provide pump with any flow and head.
2.Specification :
| Model: | TPOW Series (Outlet diameter: DN80-800mm ), FX: TPOW80-220 |
| Max. capacity: | 11600m3/h |
| Max. Head: | 200m |
| Working Pressure: | up to 25bar (2.5Mpa) |
| Operation Temperature: | up to +105°C |
| Voltage: | U=380V, 6kV,10kV |
| Net.Weight (bare pump): | 181KGS-7809KGS |
| Materials of Construction: | Cast iron,ss304,ss316,ss316l |
| Engine: | Cummins,Perkinks,Deutz,Chinese Diesel engine,Electric Motor or as customer request. |
| Engine type: | Water cooled/Air cooled |
| Accessories: | fuel tank, control panel, two or four wheels trailers, silence-box or weather-proof etc. |
| Method of Connection: | Motor mounted,engine mounted,V-belt driven |
| Skid Mounted on the Trailer: | 2 or 4 wheels trailer |
| Package: | Standard export plywood case |
3.Performance Curve :

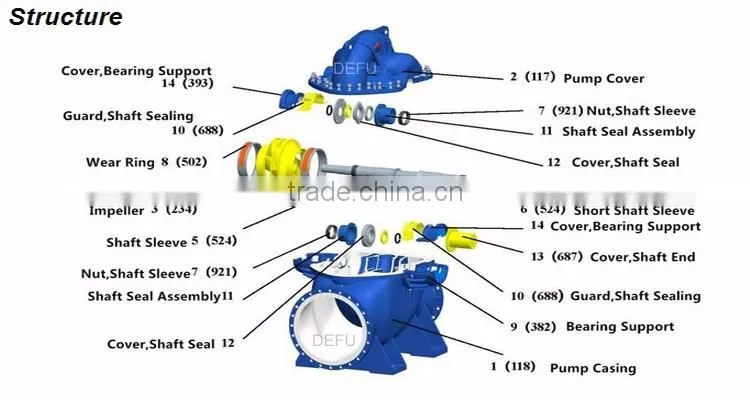

4.Structure performance :
1.Compact structure, less room occupied, compressed axial size.
2. Low vibration, low noise, the following meansure to reduce vibrates and noise.
A The pump casing is double-volute structure.
B. Rotor part axial size is short and fine rigidity.
C. The shaft uses high precise imported bearing.
| Part | Material |
| Pump casing: | Casing Iron, Ductile cast iron, Cast steel |
| Impeller: | Casing Iron, Bronze,Silicon brass, Stainless steel |
| Shaft: | Stainless steel. Carbon steel |
| Seal-ring on pump casing: | Casing Iron, Bronze,Silicon brass, Stainless steel |
5.Application Area :
1. Constructional engineering: Clear water transportation, pressurization system,air -condition circulation water,circulation system, fire-fighting system,swimming pool and water circulation system.
2: Industry : Industrial water supply , shipbuilding industry , circulating cooling system ,process water for paper making and paper pulp,steel production,shipbuilding,sea transportation, and other manufacturing industry.
3: Mini industry : waterworks ,mine drainage pump station,generating station,electric power station ,ect.
4: Other: municipal water supply, agricultural irrigation,and some others.

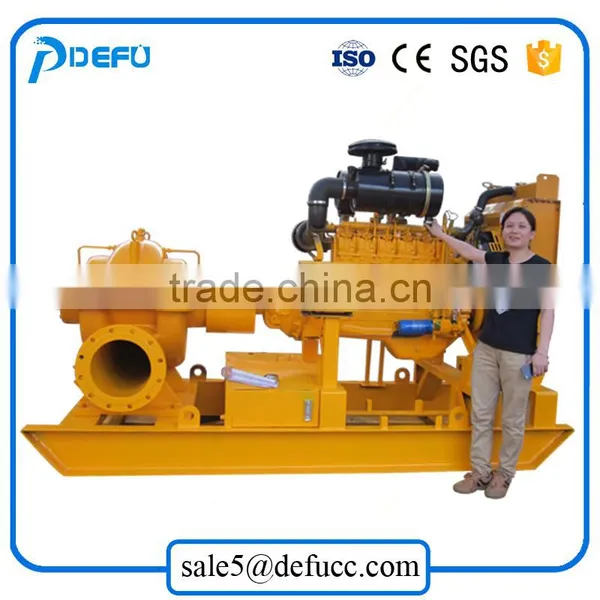

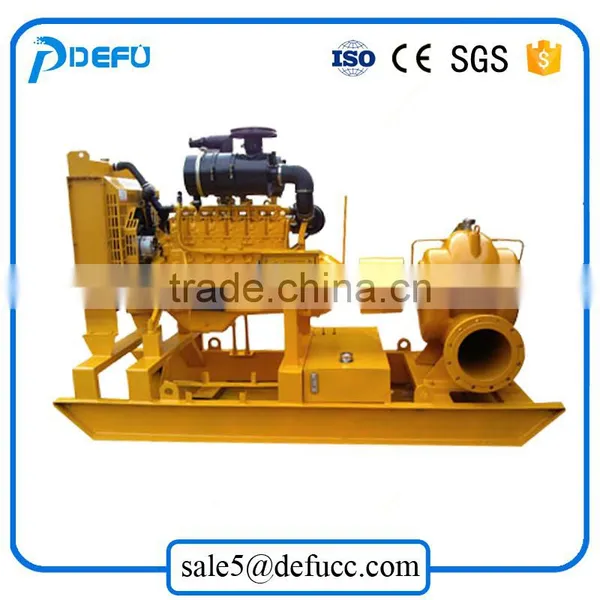

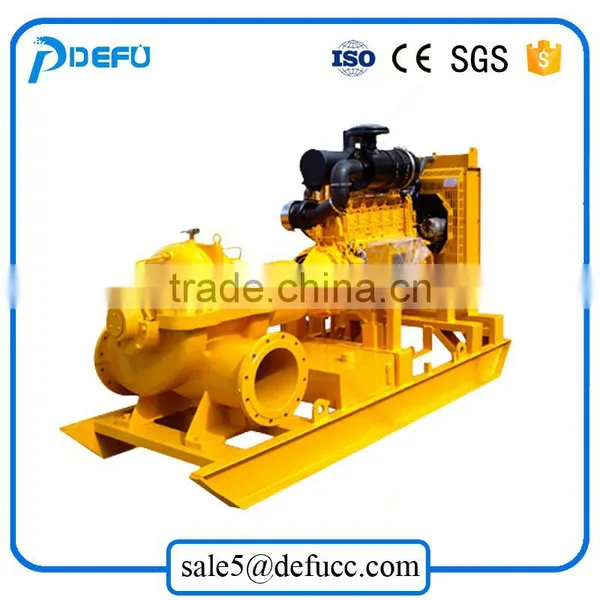

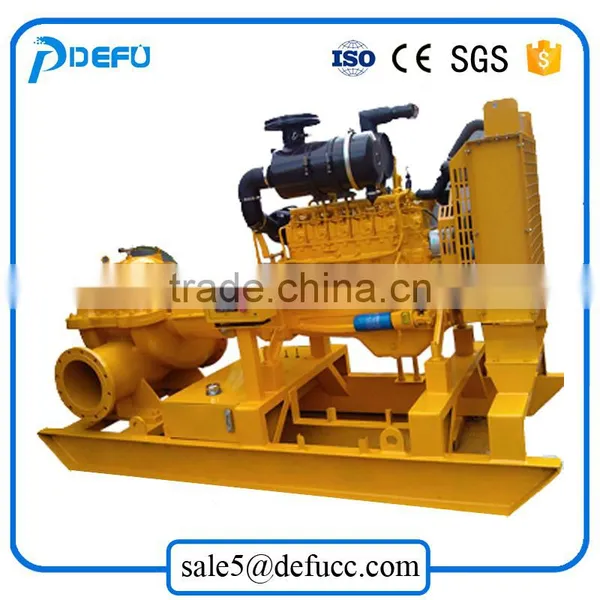

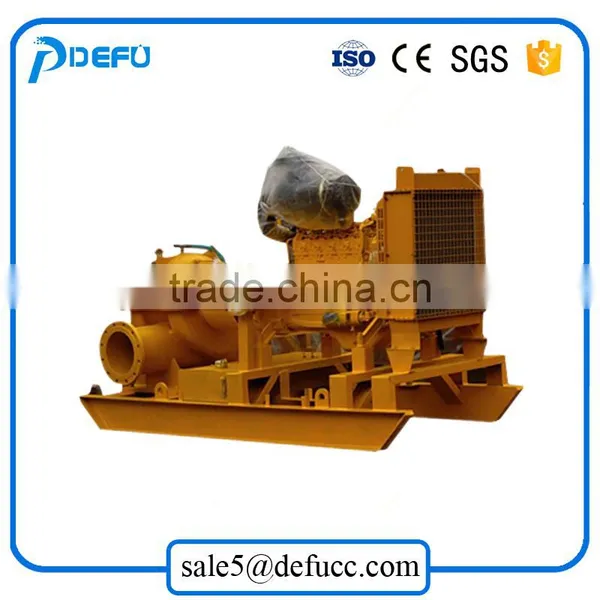

6.The Images of our double suction pump :
1 .Q: Whats the MOQ ?
Welcome to our Factory
About Us :
defu Machinery is an Enterprise involved in designing ,developing ,manufacturing and selling water pumps , Including self priming pump ,centrifugal pump ,diaphragm pump , gear pump , diesel engine pump and some others . Relying on the local industrial chain , DEFU has established its production base in Shanghai ,Hubei and Shandong province .
