Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > DEFU Brand Agricultural Irrigation Diesel Water Pump (TPOW/S)

DEFU Brand Agricultural Irrigation Diesel Water Pump (TPOW/S)

Name: DEFU Brand Agricultural Irrigation Diesel Water Pump (TPOW/S)
Brand: DEFU
SKU: 139317045
Availability: InStock

US$ 305 - 1,005 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

DEFU

Model Number:

TPOW/S

Contact Supplier Request Quote Chat Now

Wenzhou Defu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name DEFU

Model Number TPOW/S

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Other, agriculture

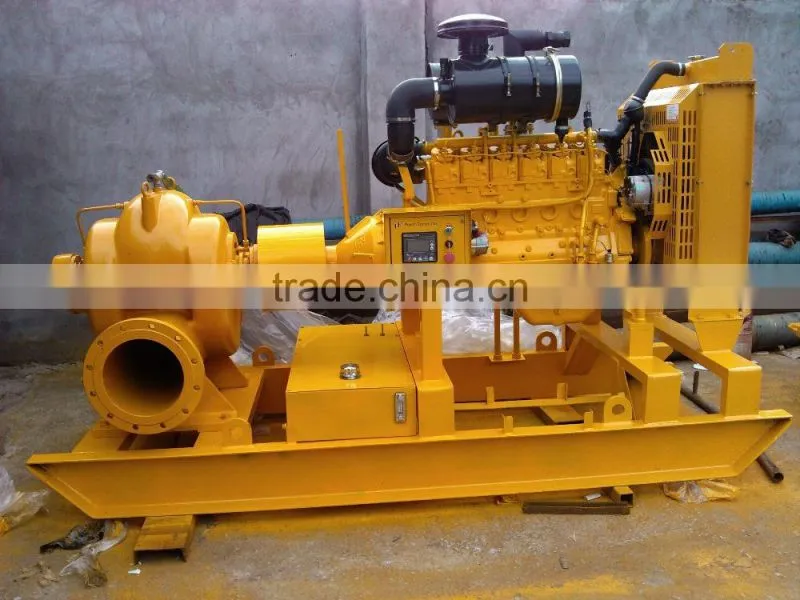

DEFU brand Agricultural irrigation diesel water pump (TPOW/S)

Product Description

1.Brief Introduce :

TPOW series double suction centrifugal water pump is single-stage double-suction split volute casing centrifugal pump and is specially designed and manufactured by our company which based on the market requirement and introducing in German lead technology. Pump through original impeller and modified impeller and cutting, the pump is with full and broad, high efficiency. In the performance scope, according to consumers’ needs, may provide pump with any flow and head.

Performance paramete

2.Specification :

Model:	TPOW Series (Outlet diameter: DN80-800mm ), FX: TPOW80-220
Max. capacity:	11600m3/h
Max. Head:	200m
Working Pressure:	up to 25bar (2.5Mpa)
Operation Temperature:	up to +105°C
Voltage:	U=380V, 6kV,10kV
Net.Weight (bare pump):	181KGS-7809KGS
Materials of Construction:	Cast iron,ss304,ss316,ss316l
Engine:	Cummins,Perkinks,Deutz,Chinese Diesel engine,Electric Motor or as customer request.
Engine type:	Water cooled/Air cooled
Accessories:	fuel tank, control panel, two or four wheels trailers, silence-box or weather-proof etc.
Method of Connection:	Motor mounted,engine mounted,V-belt driven
Skid Mounted on the Trailer:	2 or 4 wheels trailer
Package:	Standard export plywood case

3.Performance Curve :

Advantages

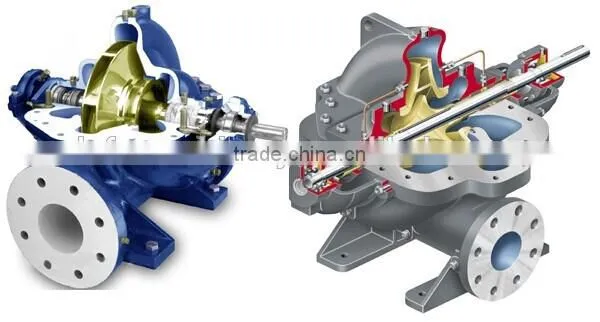

4.Structure performance :

1.Compact structure, less room occupied, compressed axial size.

2. Low vibration, low noise, the following meansure to reduce vibrates and noise.

A The pump casing is double-volute structure.

B. Rotor part axial size is short and fine rigidity.

C. The shaft uses high precise imported bearing.

Part	Material
Pump casing:	Casing Iron, Ductile cast iron, Cast steel
Impeller:	Casing Iron, Bronze,Silicon brass, Stainless steel
Shaft:	Stainless steel. Carbon steel
Seal-ring on pump casing:	Casing Iron, Bronze,Silicon brass, Stainless steel

Product Uses

5.Application Area :

1. Constructional engineering: Clear water transportation, pressurization system,air -condition circulation water,circulation system, fire-fighting system,swimming pool and water circulation system.

2: Industry : Industrial water supply , shipbuilding industry , circulating cooling system ,process water for paper making and paper pulp,steel production,shipbuilding,sea transportation, and other manufacturing industry.

3: Mini industry : waterworks ,mine drainage pump station,generating station,electric power station ,ect.

4: Other: municipal water supply, agricultural irrigation,and some others.

Detailed Images

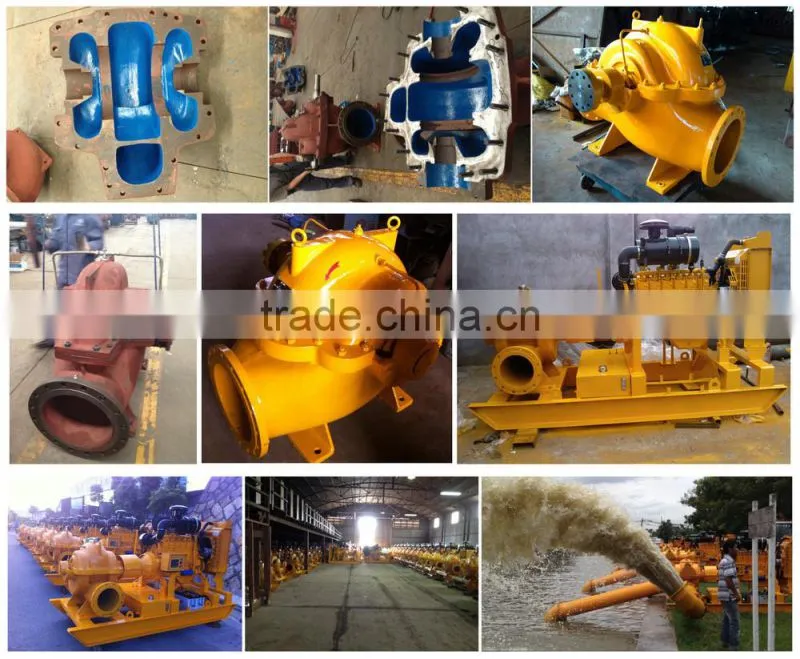

6.The Images of our double suction pump :

FAQ

1 .Q: Whats the MOQ ?

A: 1 set for regular product ,the special one we need to discuss.

2. Q : What're your payments ?

A: For small order valve < 4000USD, our customer chose 100% T/T . For order valve >4000USD ,we can accept 30 % T/T inadvance , 70 % should be paid before shipping.

3 . Q : How long is the deliver time ?

A : For the order in stock ,we will deliver goods at once against payment.

For the orders out of stock , the products time is 7 days for bare pump,diesel engine pump need 25days deliver time is 3-6days for express , if by sea ,the deliver time is base on the shipping date.

4. Q: What about the package ?

A : Standard export Plywood case or carton .

5.Q : How is the pump delivered to us ?

A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.

For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.

6. Q : How long is the warranty ?

A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts .

Certifications
