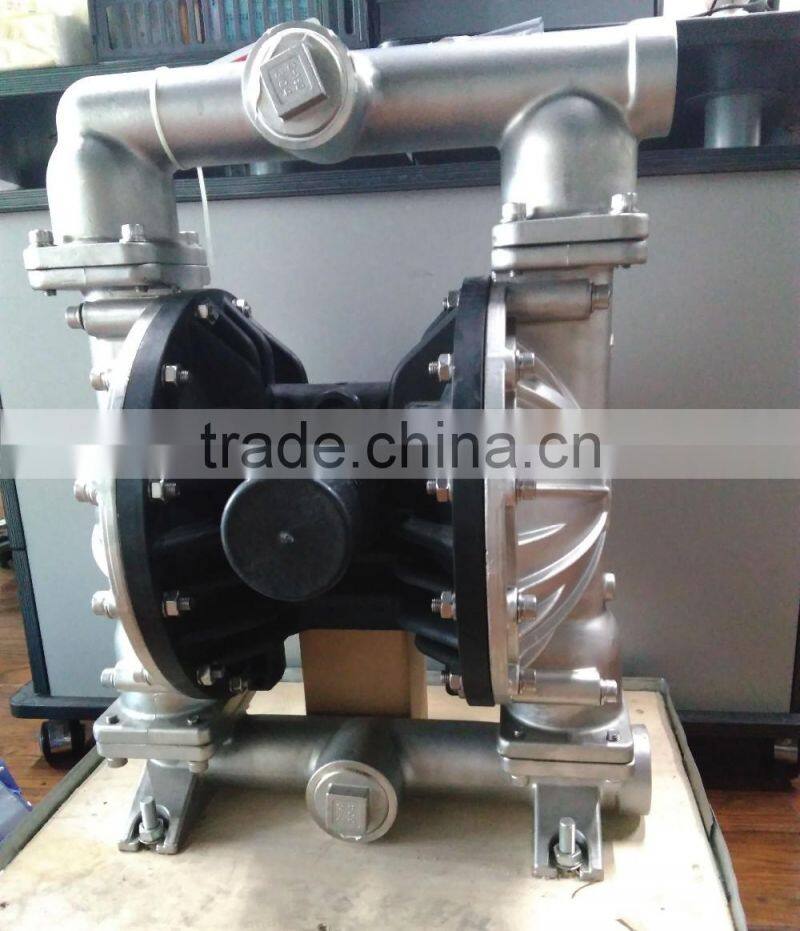

air driven diaphragm pump using for acid liquid ,chemical industry or food etc
QBK series air operated diaphragm pump is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side.
Head |
0-84m |
|
Sucktion Lift |
6.4-8m |
|
Exit Pressure |
7-8.4 kgf/cm2 |
|
Max Grain Dia |
9.4mm |
|
Max Air Pressure |
8.4 kgf/cm2 |
|
Max Air Consumption |
9.8 m3/min |
|
Certification |
ISO9001:2008;CE |
|
Pump body |
Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined; |
|
Diaphragm |
NBR,Viton,Neoprene,Teflon,EPDM,Santoprene,Hytrel,PVDE etc. |
|
Model |
Flow (m3/h) |
Head (m) |
Suction Stroke (m) |
Max Particle Dia. (mm) |
Max.Air Pressure (kg/cm2) |
Max.Air Consumption (m3/min) |
QBK-10 |
0-1.6 |
0-84 |
6.4 |
1.6 |
7 |
0.14 |
QBK-15 |
0-3.4 |
0-84 |
7.6 |
2.5 |
8.4 |
0.56 |
QBK-25 |
0-9.4 |
0-84 |
8 |
4 |
8.4 |
1.12 |
QBK-40 |
0-21.4 |
0-84 |
8 |
5 |
8.4 |
2.24 |
QBK-50 |
0-35.2 |
0-84 |
8 |
6 |
8.4 |
2.8 |
QBK-80 |
0-63.6 |
0-84 |
8 |
9.4 |
8.4 |
9.8 |
Diaphragm pump can be using for sewage;chemical;acid liquid;oil and so on
different materials for diaphragm pump

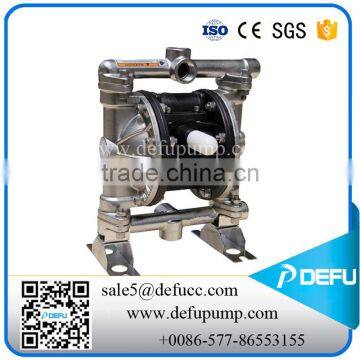

Stainless Steel Pump (SS304/316/316L)
Packing of Pneumatic Diaphragm pump :
Our air operated double diaphragm pump can be packaged by carton or ploywood case.
Shipping of Pneumatic Diaphragm pump :
| International Express | we can send goods by TNT, DHL, UPS, FedEx, etc. |
| By Sea | Acording to the product's quantity and weight. |
hot sale high efficiency Max Particle Dia 5mm air operated diaphragm Pum
DEFU Machinery is an enterprise involved in designing, developing, manufacturing andselling water pumps, including self priming pump, centrifugal pump, diaphragm pump, gear pump, diesel engine pump and some others. Relying on the local industrial chain, DEFU has established its production base in Shanghai, Hubei and Shandong province.
Factory Visiting
Our Certificate
Welcome To Our Factory!
Contact me if you are interested in this double Diaphragm pump .
