Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > DEFU Brand Electric Waste Oil Pump With Explosion Proof Motor

DEFU Brand Electric Waste Oil Pump With Explosion Proof Motor

Name: DEFU Brand Electric Waste Oil Pump With Explosion Proof Motor
Brand: DEFU
SKU: 139316541

US$ 789 - 2,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DEFU

Model Number:

KCB

Contact Supplier Request Quote Chat Now

Wenzhou Defu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DEFU

Model Number KCB

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, electric grease pump

Pressure Low Pressure

Application Other, electric waste oil pump

DEFU brand electric waste oil pump with explosion proof motor

Product Description

Product Introduction

Usage:

DEFU series oil transfer electric gear pump

is applicable to transport not containing solid particles and fibers,temperature is not higher than 200°C, the viscosity for 5 x 10~6 ~ 1.5 x 10~3 m2 / s (5~1500 CST) lubricating oil or other liquid properties similar to lubricating oil .
Reduce the pump’s speed, the medium’s viscosity can reach 5x104 cst.

Structure features:

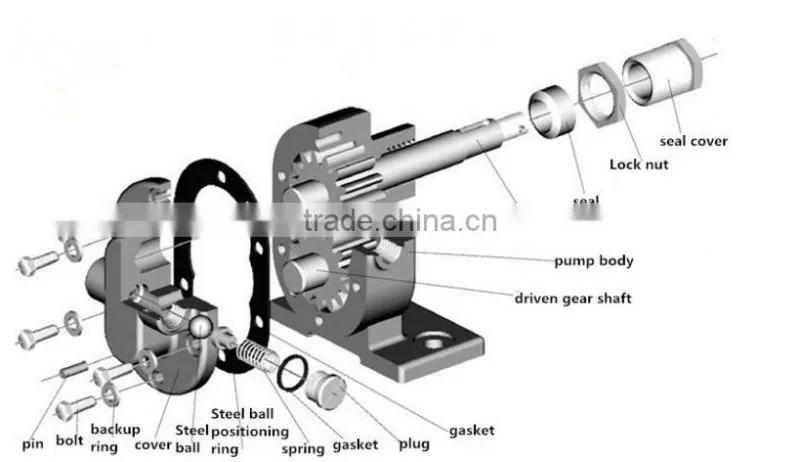

DEFU series oil transfer electric gear pump are mainly composed by gear, shaft, pump body, safety valve, shaft end seal etc. Gear after heat treatment have higher hardness and strength, and together with the shaft installed in the replaceable sleeve to operate. All the parts in the pump will automatic reach lubrication by transferring medium when pump working.

There are properly designed unloading groove and return chute in pump, which makes the gear bear the least torque force and therefor reduce the load of bearings and wear, pump’s efficiency raised.

Pump have safety valve as protection of overload. safety valve’s return flow pressure is 1.5 times higher than pump’s rated exhaust pressure. Also can adjust within the allowance according to actual requirement. But please note the safety valve can not be used as pressure reducing valve working for long time. Can separately install pressure reducing valve if it is needed.

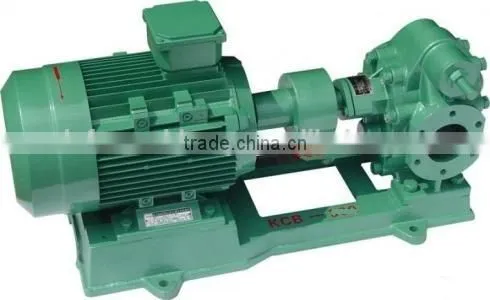

Product display :

Specification

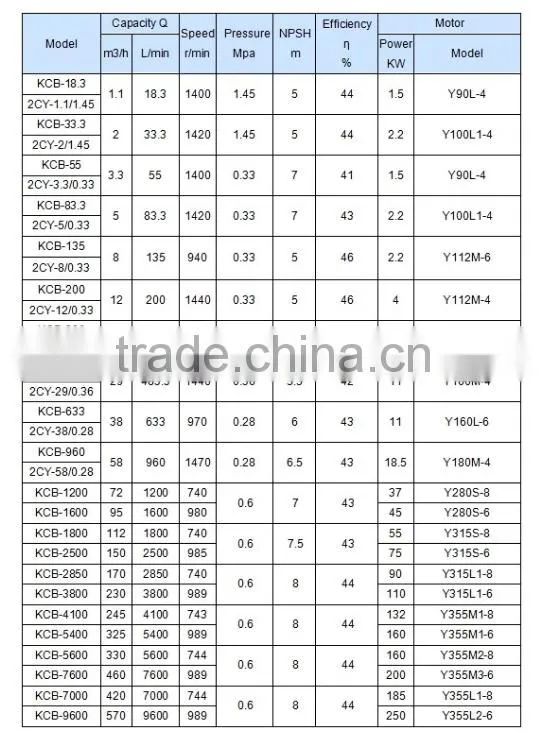

Technical Parameter:

Features

1. In the transfer oil system can be used for transmission, booster pump;

2. In the fuel oil system can be used as a transport, pressure, jet fuel pump

3. In the hydraulic drive system can be used to provide hydraulic power of hydraulic pump;

4. In all industrial fields, all can be used as lubricating oil pump.

Application

Company Information

DEFU Machinery is an enterprise involved in designing, developing, manufacturing and selling water pumps. Relying on the local industrial chain, DEFU has established its production base in Shanghai, Hubei and Shandong province.

Our main product:

self priming pump, double suction pump, diaphragm pump, diesel engine pump, multistage pump, gear pump and some others.

>>> ISO 9001:2000 & CE Certificate

Payment & Transport

Terms of Payment

1. T/T

2. Western Union

3. L/C

Mode of Transport

Plywood Case
