Food Grade Oil Pump
Specifications of Air Operated Double Diaphragm Pump
| Model |
Inlet&Outlet Diameter (mm) |
Flow Rate (m3/h) |
Head (m) |
Suction Stroke (m) |
Max. Particle Diameter (mm) |
Max. Air Pressure (kg/cm2) |
Max. air Consumption (m3/min) |
| QBK-06 | 6 | 0-1.62 | 0-84 | 6.4 | 1.6 | 7 | 0.14 |
| QBK-10 | 10 | 0-1.62 | 0-84 | 6.4 | 1.6 | 7 | 0.14 |
| QBK-15 | 15 | 0-3.42 | 0-84 | 7.6 | 2.5 | 8.4 | 0.56 |
| QBK-20 | 20 | 0-3.42 | 0-84 | 7.6 | 2.5 | 8.4 | 0.56 |
| QBK-25 | 25 | 0-9.42 | 0-84 | 8 | 4 | 8.4 | 1.12 |
| QBK-40 | 40 | 0-21.48 | 0-84 | 8 | 5 | 8.4 | 2.24 |
| QBK-50 | 50 | 0-35.22 | 0-84 | 8 | 6 | 8.4 | 2.8 |
| QBK-80 | 80 | 0-63.6 | 0-84 | 89 | 9.4 | 8.4 | 9.8 |
Notice: 1. According to your quantity, the price is different.
2. QBK-06 and QBK-10 only have PP material.

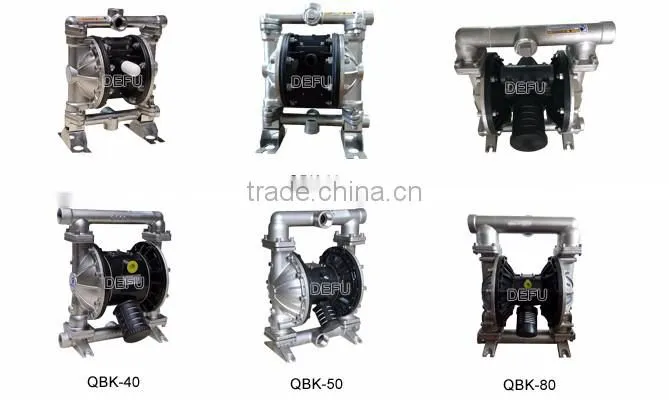

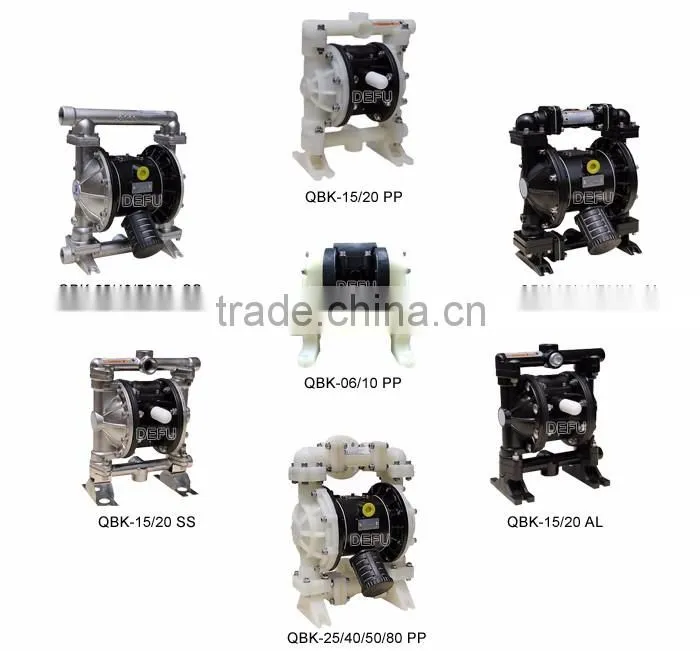

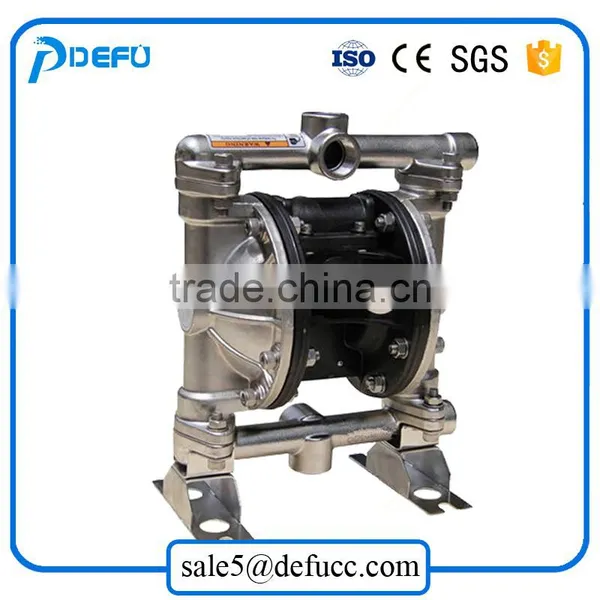

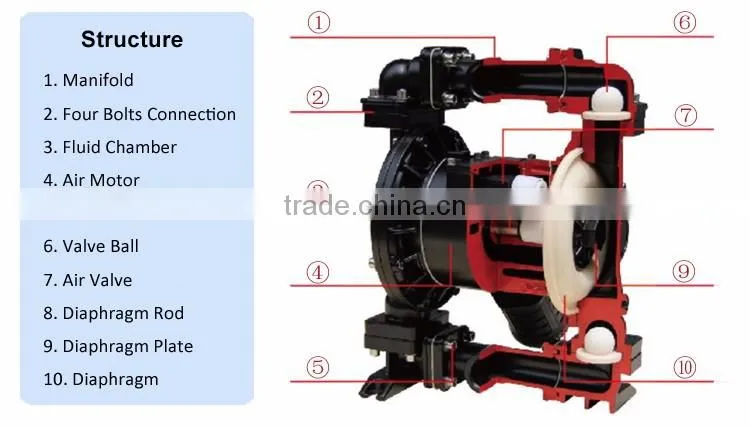

Pictures of pneumatic double diaphragm pump
1. The air diaphragm pump has the function of self priming without rotating parts. It can achieve dry priming and wet priming, which self -priming height is 5m and 8m respectively.

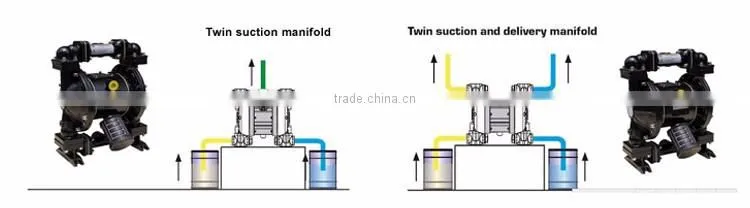

2. With sectional type structure, this self -priming pump can be used for conveying two different liquid by double diaphragm.
3. Our pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.
4. Pumps provide stall-free, ice-free operation.
5. Bolt joint design provides even sealing pressure for optimal performance.

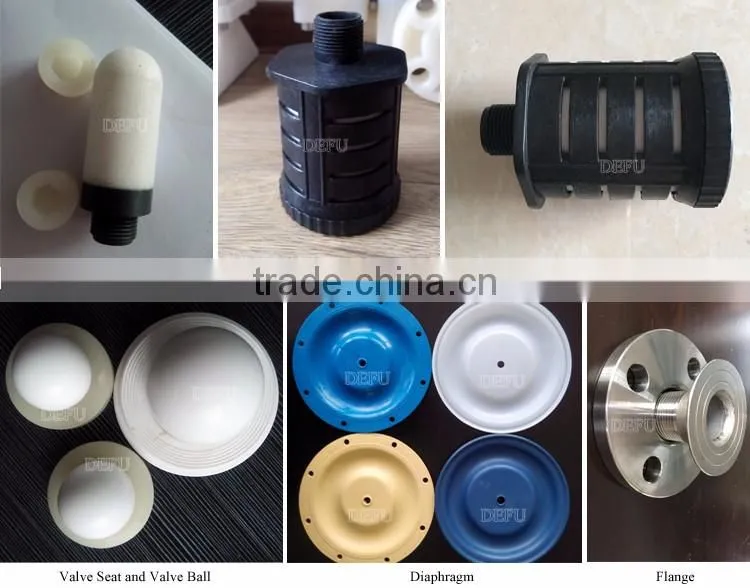

6. Diaphragm,ball and ball seat adopt imported materials with longer service life.
7. Due to their pneumatic motor, they could be used in potentially explosive areas.
8. Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
