impingement water mist nozzle

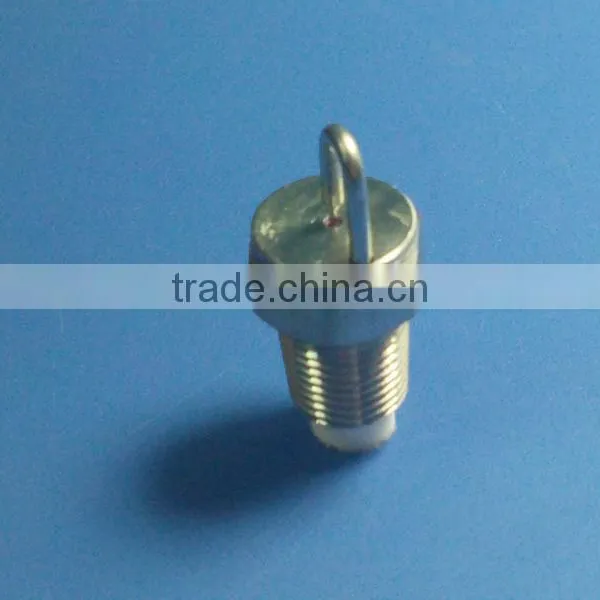

1.Percussion type stainless steel fog nozzle made by YueBoSi Company is one of the key parts of the artificially created mist system.
2.Artificially created mist system engineering can be used in forest, garden, city square, film base, war game, residential quarter, and so on.
3 Mist effect is natural and vivid. Water mist can keep a long time in air and the cost is low, what's more, it can pure the air.
4.The diameter of the mist drop ranges from 7um to 20um, the instant spray height is about 1500mm. In the breezeless or breeze state, it can reach ten meters in height.
5.Single nozzle's mist can spread about more 2 square meters. The mist angle (30 degree to 170 degree) can meet your choose. With the filter fittings, the performance of blocking has been reduced.
6. We can make the nozzles as your requirement, the smallest orifice is 0.05mm and the accuracy can be ±0.002. This technology has reached the world advanced level. Connector usually is 1/8" NPT, we also can provide you with 1/8" BSPT, and the metric system M10*1.
Paremeters:
Orifice(mm) |
Flow rate(L/min) |
Pressure(PSI) |
Male size |
0.15 |
0.035-0.05 |
435-1015 |
NPT1/8-27 |
0.20 |
0.06-0.09 |
435-1015 |
NPT1/8-27 |
0.30 |
0.095-0.165 |
435-1015 |
NPT1/8-27 |
0.40 |
0.14-0.22 |
435-1015 |
NPT1/8-27 |
0.50 |
0.17-0.285 |
435-1015 |
NPT1/8-27 |
Material: and suggestion:
Nozzle body use stainless steel material,nozzle tip including stainless steel and ruby , if you choose stainless steel nozzle tip
advise you use Max 70bar , if you choose ruby nozzle tip, advise you use Max 100bar working pressure, above the max working
pressure, will speed up the nozzle wear and reduce the nozzle's service time.
Advantages:
inluding filter and anti-drip.

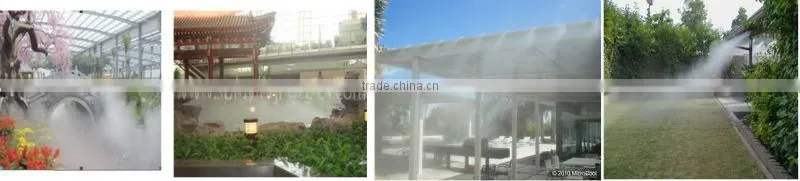

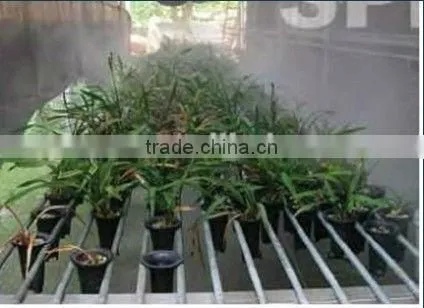

Spray picture:
A
Application:
cooling, dust extraction, wet, artificial water fog
