High Pressure Small Garden Ss Carbide Water Vee Jet Nozzle
PRODUCT DESCRIPTIONS |
| Capacity Chart | Ordering info | |||||||||||||||||||||||||||||||||||||
| US gal/min at 40 psi | Nozzle code | Flow rate code | Connection Code | Price | Equivalent bore diameter (mm) | Flow rate L/min | 602.453.A3.00 | |||||||||||||||||||||||||||||||
| Connection | spray angle | Pmax 350bar | Pmax 350bar | Pmax 200bar | Pressure (Bar) | |||||||||||||||||||||||||||||||||
| 1/8 | 1/4 | nut | 15° | 30° | 45° | 60° | BSPT | NPT | Lock nut | 40 | 60 | 80 | 100 | 120 | 150 | 200 | ||||||||||||||||||||||
| 02 | 608 | 602 | 652 | 361 | 362 | 363 | 364 | A3.00 | A3.07 | A3.29 | 3.0 | 1.00 | 2.86 | 3.50 | 4.04 | 4.52 | 4.95 | 5.53 | 6.39 |
|
||||||||||||||||||
| 025 | 608 | 602 | 652 | 381 | 382 | 383 | 384 | A3.00 | A3.07 | A3.29 | 2.8 | 1.10 | 3.54 | 4.33 | 5.00 | 5.59 | 6.12 | 6.85 | 7.91 | |||||||||||||||||||
| 03 | 608 | 602 | 652 | 401 | 402 | 403 | 404 | A3.00 | A3.07 | A3.29 | 2.7 | 1.18 | 4.31 | 5.28 | 6.10 | 6.82 | 7.47 | 8.35 | 9.64 | |||||||||||||||||||
| 034 | 608 | 602 | 652 | 411 | 412 | 413 | 414 | A3.00 | A3.07 | A3.29 | 2.6 | 1.30 | 4.95 | 6.06 | 7.00 | 7.83 | 8.57 | 9.59 | 11.07 | |||||||||||||||||||
| 04 | 608 | 602 | 652 | 451 | 452 | 453 | 454 | A3.00 | A3.07 | A3.29 | 2.5 | 1.35 | 5.80 | 7.10 | 8.20 | 9.17 | 10.04 | 11.23 | 12.97 | |||||||||||||||||||
| 045 | 608 | 602 | 652 | 471 | 472 | 473 | 474 | A3.00 | A3.07 | A3.29 | 1.40 | 6.51 | 7.97 | 9.20 | 10.29 | 11.27 | 12.60 | 14.55 | ||||||||||||||||||||
| 05 | 608 | 602 | 652 | 481 | 482 | 483 | 484 | A3.00 | A3.07 | A3.29 | 1.55 | 7.29 | 8.92 | 10.30 | 11.52 | 12.62 | 14.11 | 16.29 | ||||||||||||||||||||
| 055 | 608 | 602 | 652 | 501 | 502 | 503 | 504 | A3.00 | A3.07 | A3.29 | 1.60 | 7.96 | 9.74 | 11.25 | 12.58 | 13.78 | 15.41 | 17.79 | ||||||||||||||||||||
| 06 | 608 | 602 | 652 | 521 | 522 | 523 | 524 | A3.00 | A3.07 | A3.29 | 1.72 | 8.70 | 10.66 | 12.31 | 13.76 | 15.07 | 16.85 | 19.46 | ||||||||||||||||||||
| 065 | 608 | 602 | 652 | 531 | 532 | 533 | 534 | A3.00 | A3.07 | A3.29 | 1.75 | 9.38 | 11.49 | 13.26 | 14.83 | 16.25 | 18.16 | 20.97 | ||||||||||||||||||||
| 07 | 608 | 602 | 652 | 541 | 542 | 543 | 544 | A3.00 | A3.07 | A3.29 | 1.80 | 10.06 | 12.32 | 14.22 | 15.90 | 17.42 | 19.47 | 22.49 | ||||||||||||||||||||
| 075 | 608 | 602 | 652 | 551 | 552 | 553 | 554 | A3.00 | A3.07 | A3.29 | 1.90 | 10.75 | 13.16 | 15.20 | 16.99 | 18.62 | 20.81 | 24.04 | ||||||||||||||||||||
| 08 | 608 | 602 | 652 | 571 | 572 | 573 | 574 | A3.00 | A3.07 | A3.29 | 2.05 | 11.48 | 14.06 | 16.23 | 18.15 | 19.88 | 22.23 | 25.67 | ||||||||||||||||||||
| 09 | 608 | 602 | 652 | 591 | 592 | 593 | 594 | A3.00 | A3.07 | A3.29 | 2.10 | 13.01 | 15.93 | 18.40 | 20.57 | 22.53 | 25.19 | 29.09 | ||||||||||||||||||||
| 10 | 608 | 602 | 652 | 601 | 602 | 603 | 604 | A3.00 | A3.07 | A3.29 | 2.30 | 14.43 | 17.76 | 20.40 | 22.81 | 24.99 | 27.94 | 32.26 | ||||||||||||||||||||
| 125 | 602 | 652 | 641 | 642 | 643 | 644 | A3.00 | A3.07 | A3.29 | 2.50 | 17.82 | 21.82 | 25.20 | 28.17 | 30.86 | 34.51 | 39.85 | |||||||||||||||||||||
| 15 | 602 | 652 | 671 | 672 | 673 | 674 | A3.00 | A3.07 | A3.29 | 2.70 | 21.35 | 26.15 | 30.20 | 33.76 | 36.98 | 41.35 | 47.74 | |||||||||||||||||||||
| 175 | 602 | 652 | 701 | 702 | 703 | 704 | A3.00 | A3.07 | A3.29 | 3.00 | 25.03 | 30.66 | 35.40 | 39.58 | 43.36 | 48.47 | 55.97 | |||||||||||||||||||||
| 20 | 602 | 652 | 723 | 724 | A3.00 | A3.07 | A3.29 | 3.05 | 28.85 | 35.33 | 40.80 | 45.62 | 49.97 | 55.87 | 64.52 | |||||||||||||||||||||||
| 30 | 602 | 652 | 793 | A3.00 | A3.07 | A3.29 | 3.90 | 42.43 | 51.96 | 60.00 | 67.08 | 73.48 | 82.16 | 94.88 | ||||||||||||||||||||||||

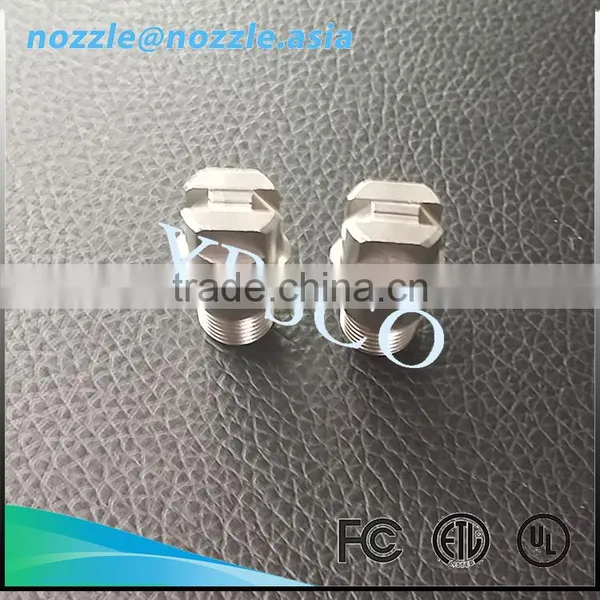

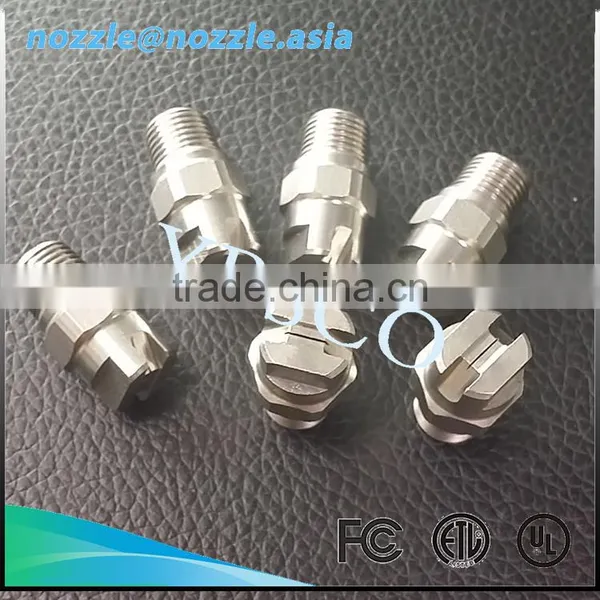

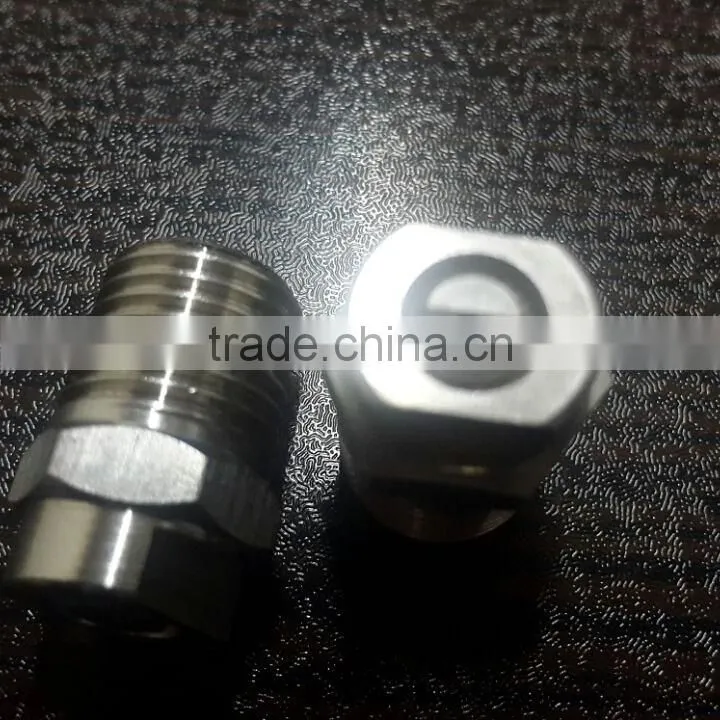

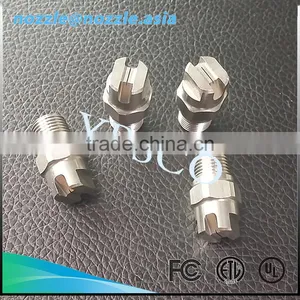

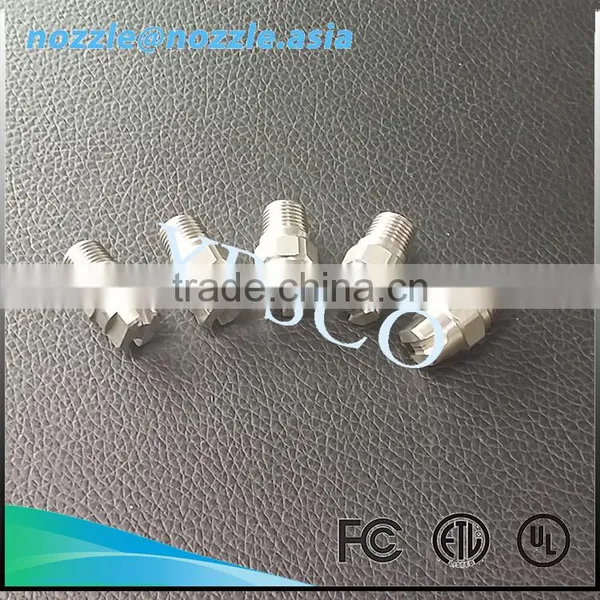

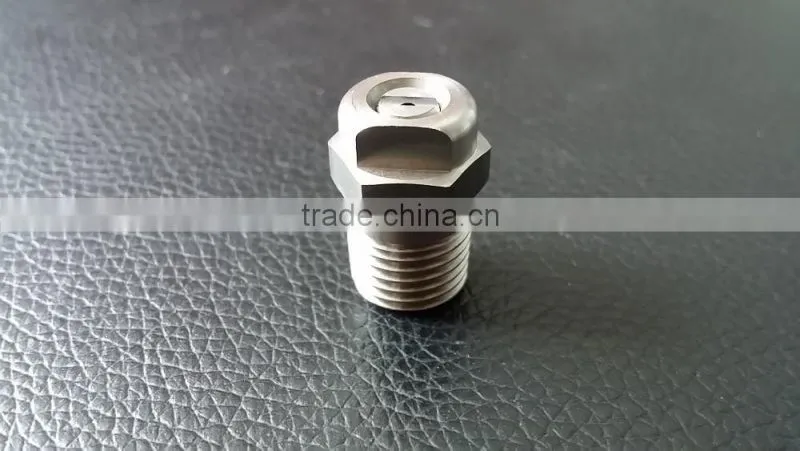

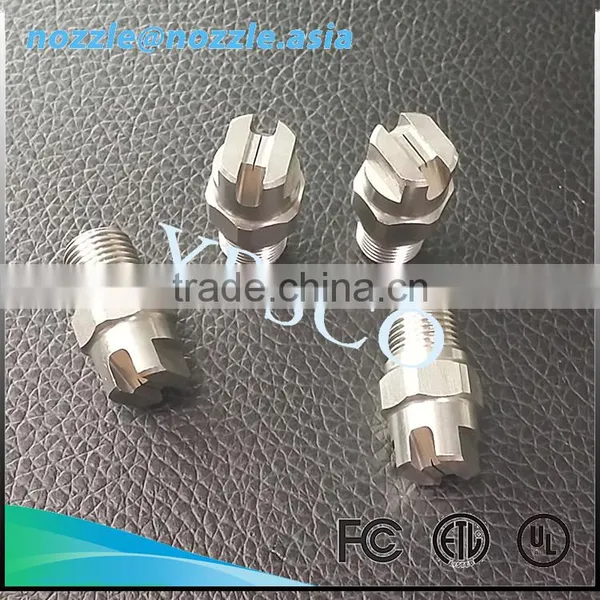

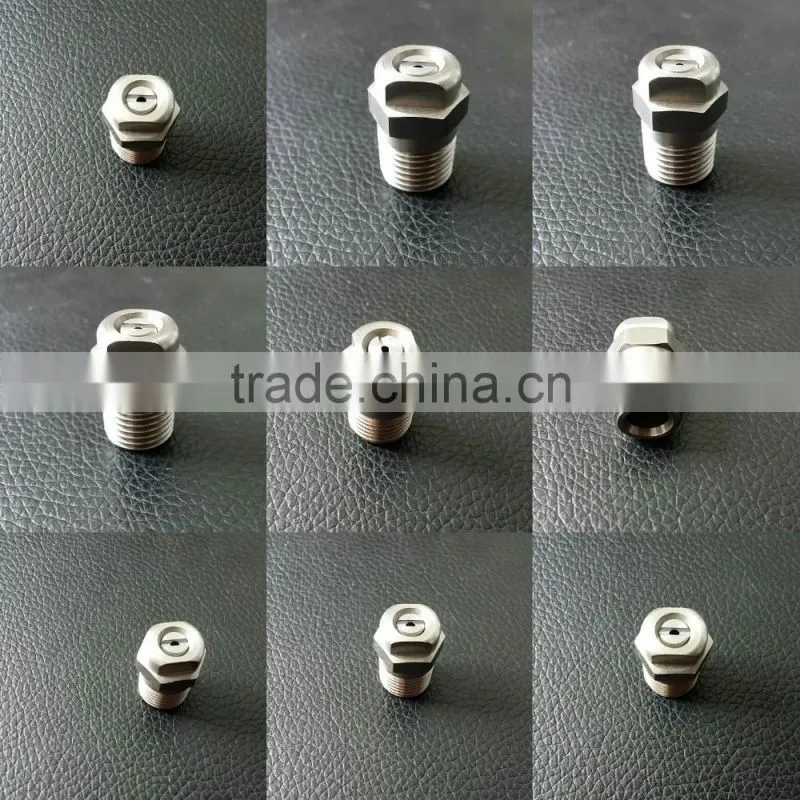

PRODUCT PICTURES |
MORE PRODUCTS |
Our Main Products:
Nozzle, Spray Nozzle, Injectors Nozzle, Water Spray Nozzles, Different Type Of Nozzles
Fuel Nozzle, Mist Nozzle, Fountain Nozzle, Fire Nozzle, Fuel Injector Nozzle, Fog Machine
APPLICATION |
PACKAGING & SHIPPING |
Quality Control
We make quality control for each item separately. Shipping department checks each item before packing, totally avoiding manufacturing defects.
Packaging
We use durable poly bags, reinforced envelopes and boxes. You can be sure that ordered items will reach you in perfect condition.
OUR COMPANY |
We have over 120 employees and an annual sales figure that exceeds USD10 million. And we are currently exporting 50% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.Dongguan Yuebosi Electronics Technology Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of nozzles. We are located in Dongguan, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the USA, Western Europe, India and other countries and regions.
CERTIFICATIONS |
OUR SERVIES |
YBSCO price shop competitors to assure the lowest price.
Lowest Prices
We guarantee unbeatable prices. We will beat any reputable competitor’s price. We price shop competitors to assure the lowest price.
Live Customer Service
Choose from live chat, phone, and live video chat customer service options for instant customer service. Talk to a real person - we are here to help!
china nozzle expert
With our huge knowledge base, unbeatable prices, years of reputable service, and unmatched product selection, we are the Nozzle authority!
Recommended Products
Whether you’re shopping for the best that money can buy or low-cost solutions, our recommended products will fit your budget.
Troubleshooting
Get help when you need it! Our knowledgeable customer service reps are on-hand with answers to your toughest nozzle questions.
OUR CUSTOMERS |
FACTORY VIEW |
OUR TEAM |
FAQ |
Why Choose us ?
1. China direct supplier ,factory price
2. OEM and ODM is available,can faster churning out your innovative products
3. case for TOYOTA,HONDA,CHINA Petroleum,iron and steel plant,paper mill,The coatingfactory,chemicalplant,cementplant,ceramicsfactory,powerplant,Coal plant,phosphorization plant,etc
4. Through the SGS certification
5. Manufacturer over 10 years' experience
6. CHINA Petroleum and Wuhan Iron and Steel (Group) Corp. Authorized manufacturer, you can get reliable quality products at lower cost.
7. 303 Stainless steel Materials are 100% more than 7.8 nickel,,or any other reliable quality materials you demanded,such as BRASS,304SS,316SS,UPE,PVDF,PTFE,PVC,PP,etc.
8. our products are 100% complete inspection
9. If want to import a small number of nozzles to test the spray effect ,we can lower the MOQ.
10. Can provide samples.
11. Reply your inquiry within 8 hours.
12. Delivery Term: DHL/ UPS/FEDEX/TNT/postal service Express; Air/ Sea Transportation
13. The angle can be customized 0 degrees to 180 degrees, the flow can also be customized according to customer requirements.
