Freeze Drying Machine
Characteristics of Mini Freeze Drying Machine:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted.
Material Tray of Lab lyophilizer:
Common type: specially designed stainless steel sample shelf, the space of common sample tray can be adjusted, the amount of layers can be designed freely; the diameter of material tray is 200mm,amouting to 4 layer, the amount of the material on it is about 1000mL (the depth of the material 10 mm) .
Mini Freeze Drying Machine :
Name and Model |
TOPT -10A Vacuum Freeze Dryer / Lyophilizer |
Freeze Drying Area |
0.03m2/layer |
Cold trap temperature |
-55, (optional -80)°C |
Vacuum |
<10 Pa |
Water-capture capacity |
3~4 Kg/24h |
Material tray |
diameter 200 mm |
Tray number |
4 (optional 6) layer |
Whole power |
600 W |
Main frame size |
425*615*(370+445) mm |
Main frame weight |
40 Kg |
Liquid capacity |
1.2 L |

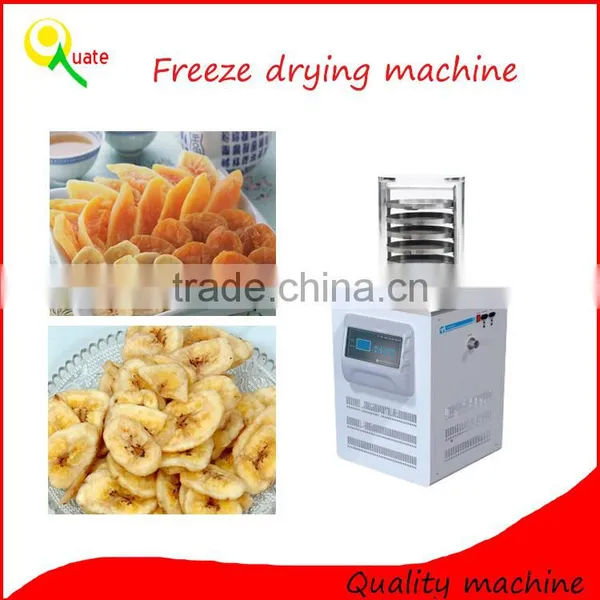

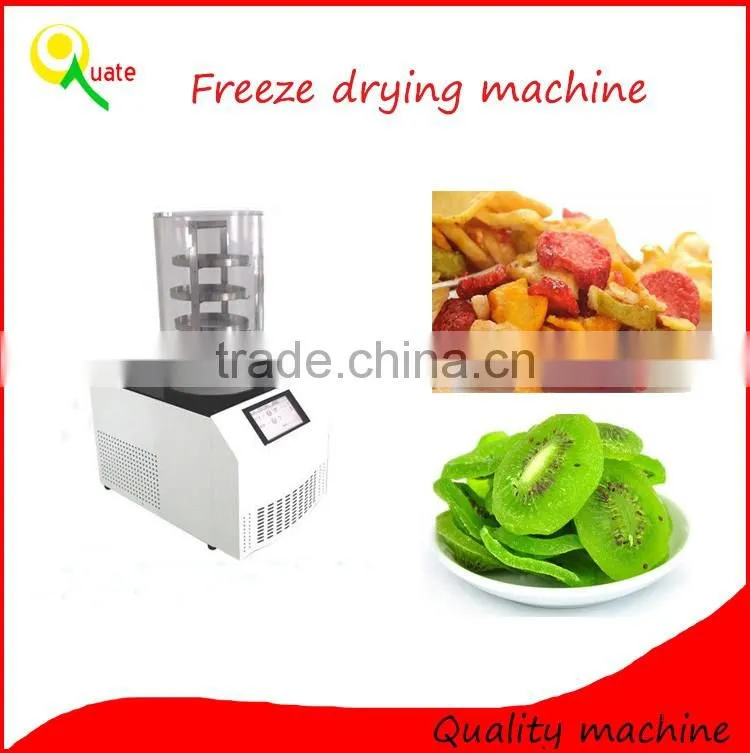

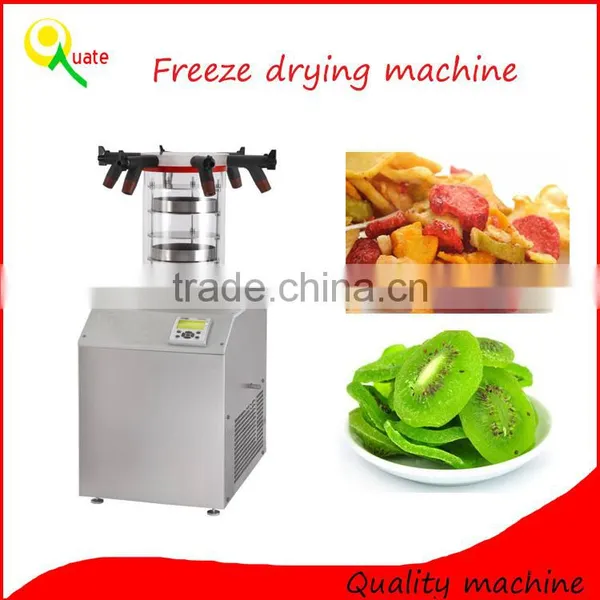

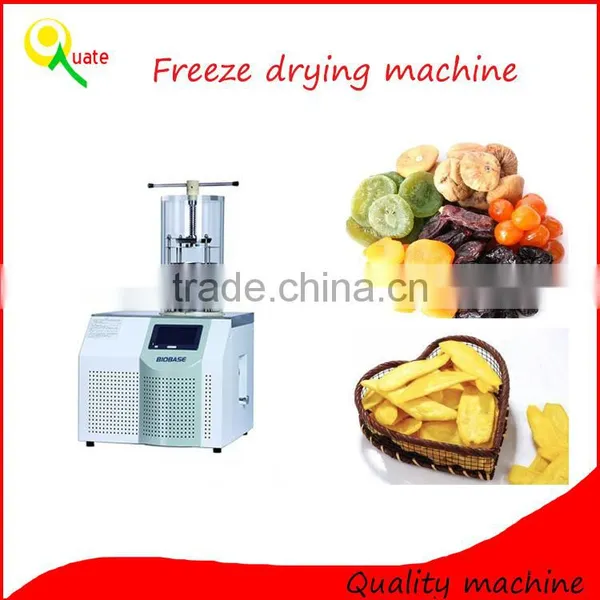

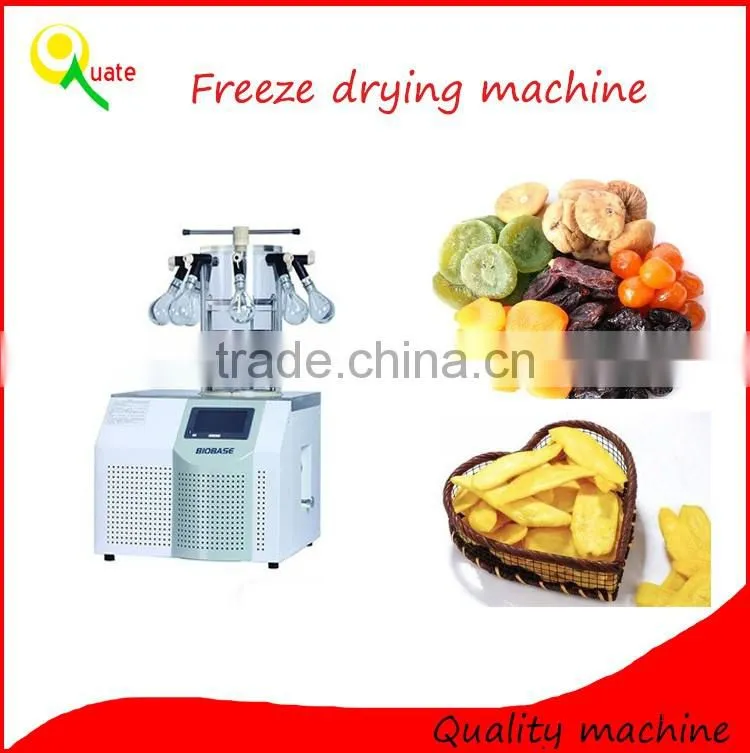

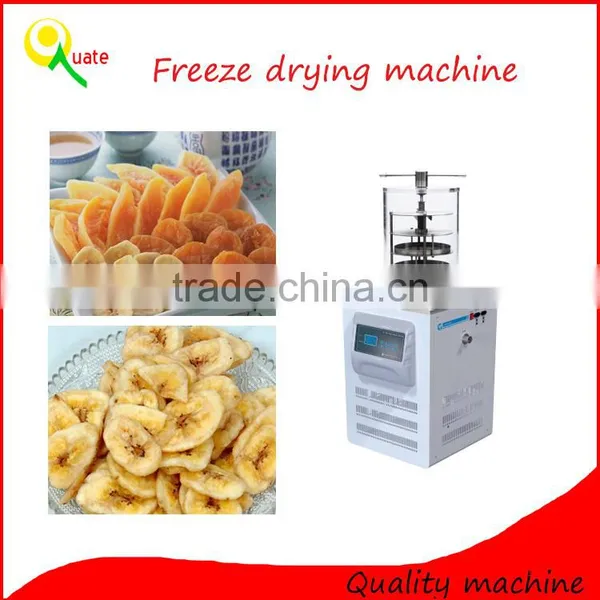

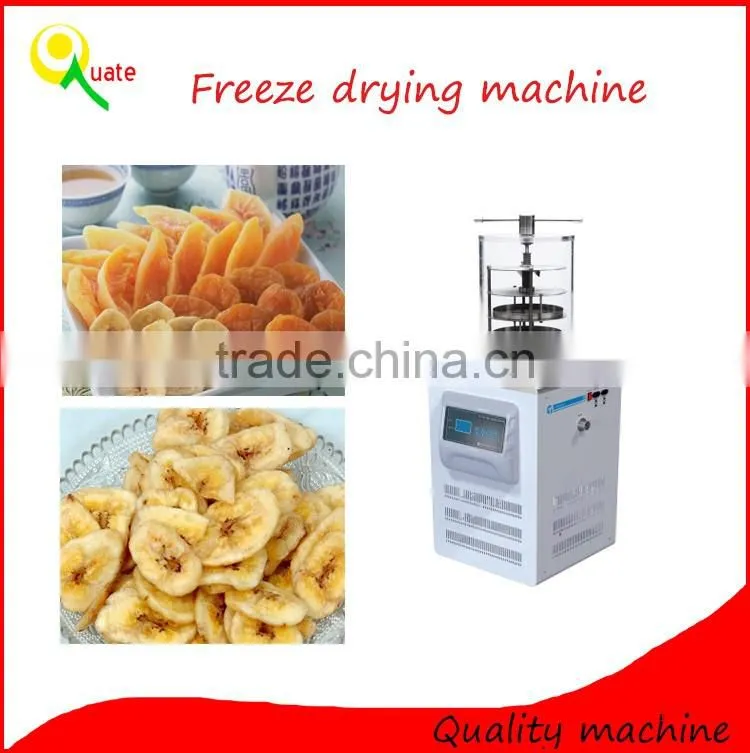

picture of machine:
packing:
shipping:
