Diesel / Electric bread baking oven (CE /ISO9001/ BV)
JK-DOV-9920A baking oven
Features of baking oven:
1. Polished stainless-steel chamber
2. Latest PID controller
3. Uniform distribution of air temperature
4. Forced-air convection
5. Double Layer glass door, larger viewing window.
6. Independent temperature-limiting alarm system ensures experiments run safely. (option)
7. RS485 connector is option which can connect computer to record the parameters and the variations of temperature. (option)
8. Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research
Specifictions of baking oven:
Model |
JK-DO-9030 JK-DO-9030A |
JK-DO-9050A |
JK-DO-9070 JK-DO-9070A |
JK-DO-9140 JK-DO-9140A |
Electrical Requirements |
220V 50HZ |
|||
Temperature Range |
RT+10~200℃/RT+10-250℃ |
|||
Temperature Accuracy |
0.1℃ |
|||
Display Resolution |
±1.0℃ |
|||
Ambient Temperature |
+5~40℃ |
|||
Power Consumption |
850W |
850W |
1550W |
2050W |
Chamber Volume |
30L |
50L |
80L |
136L |
|
Internal Dimension (W×D×H, mm) |
340×320×320 |
420×395×350 |
450×400×450 |
550×450×550 |
|
External Dimension (W×D×H, mm) |
620*530*490 |
700*610*630 |
740×618×630 |
840×670×730 |
Shelves |
2(pcs) |
2(pcs) |
2(pcs) |
2(pcs) |
Timing Range |
1~9999min |
|||
Model |
JK-DO-9240 JK-DO-9240A |
JK-DOV-9420A |
JK-DOV-9620A |
JK-DOV-9920A |
Electrical Requirements |
220V 50HZ |
380V 50Hz |
||
Temperature Range |
RT+10~200℃/RT+10-250℃ |
|||
Temperature Accuracy |
0.1℃ |
|||
Display Resolution |
±1.0℃ |
|||
Ambient Temperature |
+5~40℃ |
|||
Power Consumption |
2450W |
3100W |
4000W |
6000w |
Chamber Volume |
220L |
420L |
620L |
1000L |
|
Internal Dimension (W×D×H, mm) |
600×500×750 |
640×585×1355 |
840×600×1355 |
1000*600*1600 |
|
External Dimension (W×D×H, mm) |
880×720×930 |
780×750×1880 |
980×800×1880 |
1140* 800*2150 |
Shelves |
2(pcs) |
3(pcs) |
4(pcs) |
5(pcs) |
Timing Range |
1~9999min |
|||
Remark:
“A”—Polished stainless-steel chamber
“Without A”—Galvanized sheet chamber
Option: 1. Intelligent programmable temperature controllerLCD
2. Printer
3. Independent temperature-limiting Alarm
4. RS485 connector
5. EBM fan motor

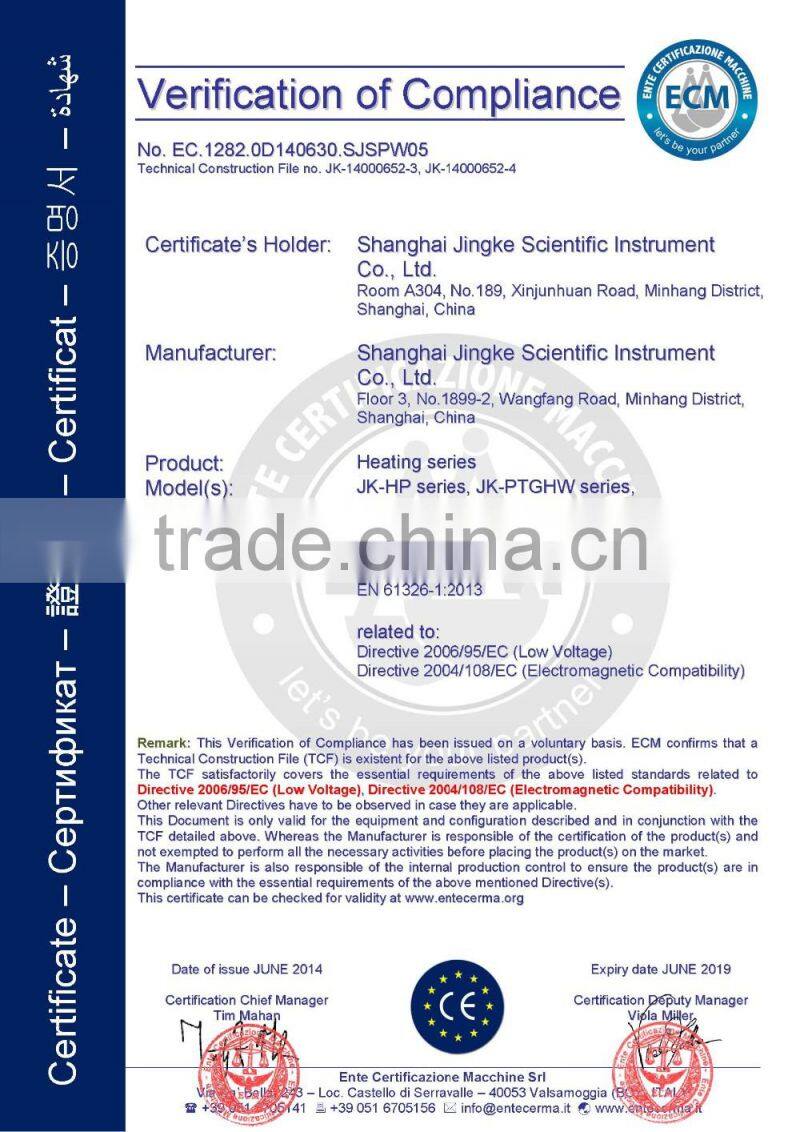

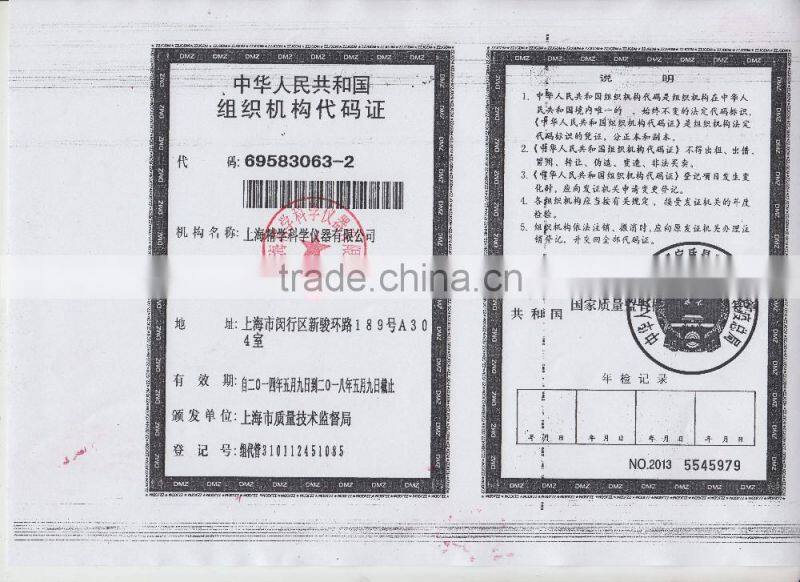

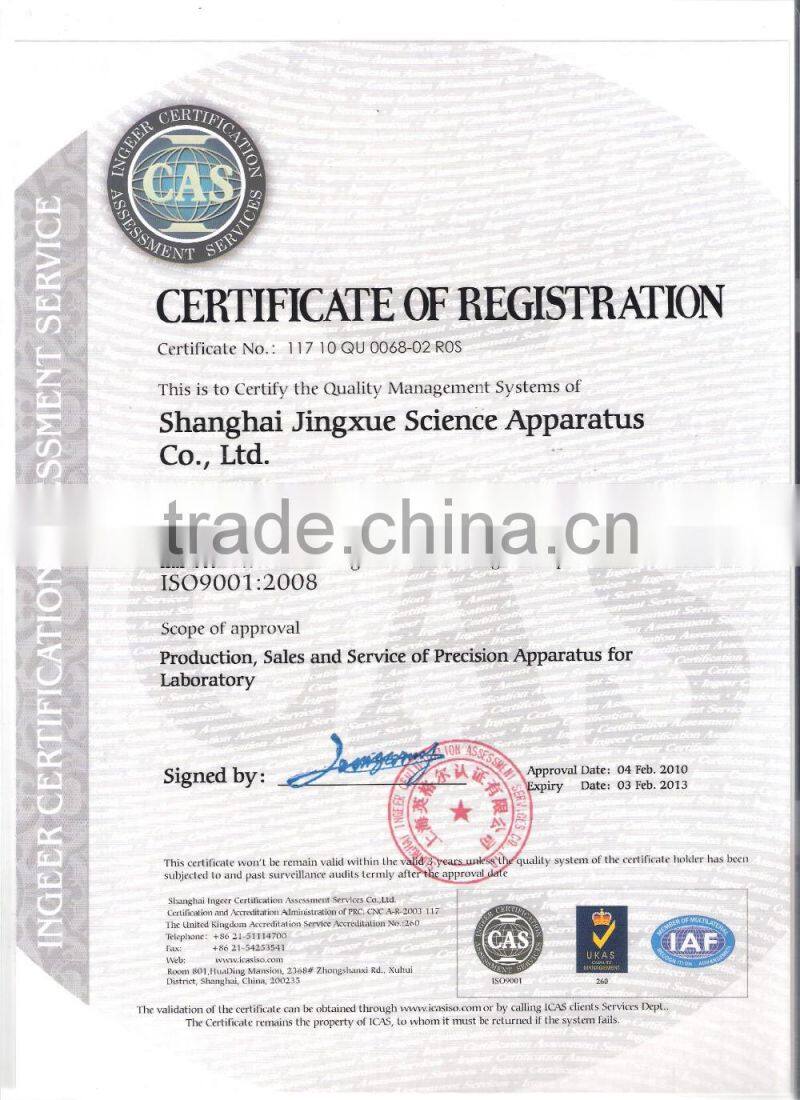

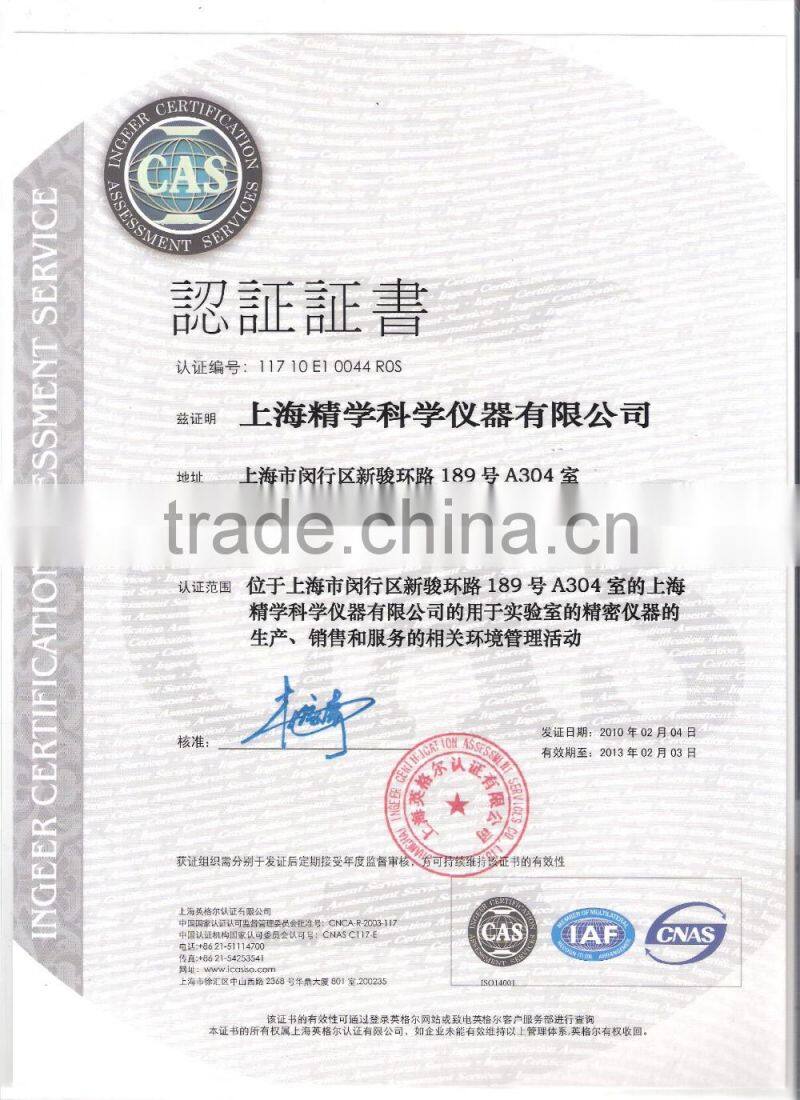

certification of drying oven
