25 Micron Stainless Steel Wire Mesh,304 316 stainless steel woven wire mesh
Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
Woven style: plain,twill,dutch
Mesh :1-635mesh
Diameter: 0.0008"-0.08"
Roll Width: Max 240"
Roll Length: Max 2000'

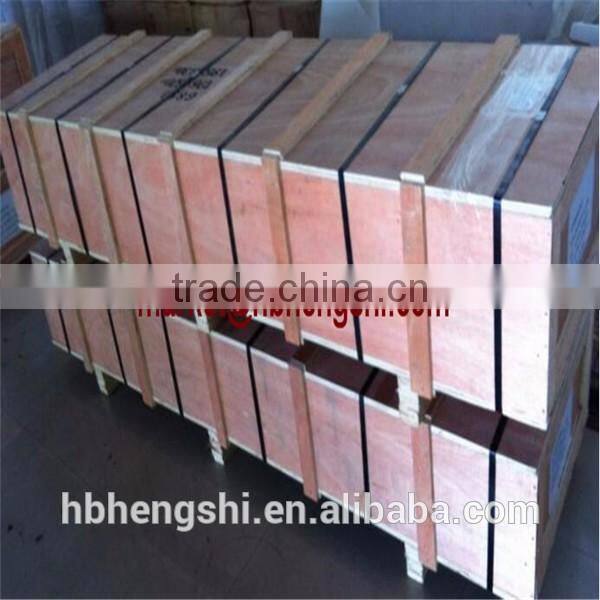

Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
1.Specification of stainless steel wire mesh
Type |
Mesh/Inch
|
Wire diameter (inch) |
OPen Area |
Weight (LB) /100 Square Foot |
Plain,Twill Weave Wire Mesh |
1 × 1-635 × 635 |
0.0008"-0.08" |
25 to 84.6 |
2.53 to 41.1 |
Type |
Mesh/Inch
|
Wire diameter (inch) |
Absolute Filtration Finess µm |
Nominal Filtration Finess µm |
Plain Dutch Weave Wire Mesh |
8 × 85-80 × 400 |
0.014'' × 0.0126''- 0.0049'' × 0.0028'' |
318-340 to 43-48 |
250-255 to 35-40 |
Twill Duntch Weave Wire Mesh |
20 × 250 - 500 × 3200 |
0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' |
110-120 to 8-9 |
98-105 to 2-3 |
Woven Type

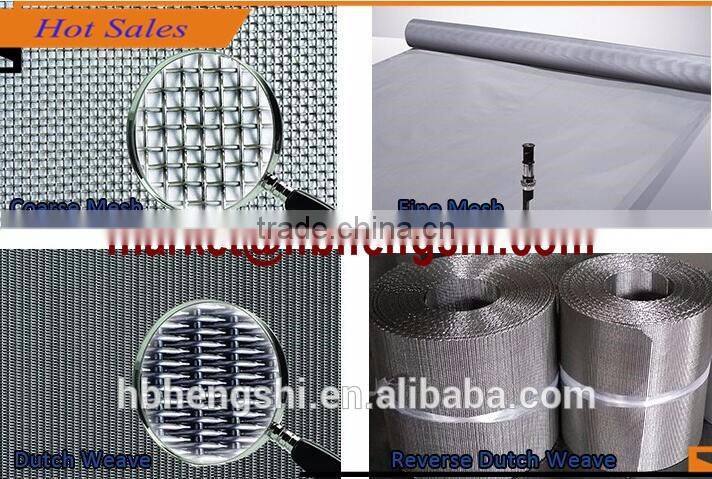

Type : Plain ,Twill, Plain Dutch , Twill Dutch, Reverse Dutch Weave and Five-Heddle Weave.
2.Stainless Steel Wire Mesh Feature:
- Corrosion resistance.
- Anti-acid and alkali.
- Anti-high temperture.
- Good filter performance.
- Long using life

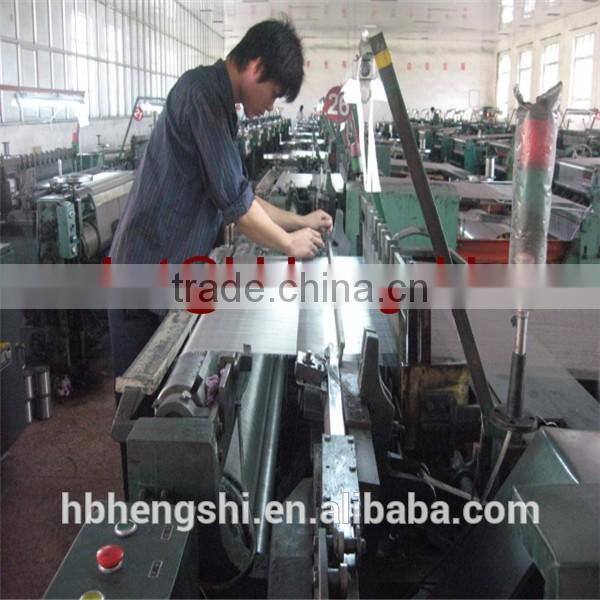

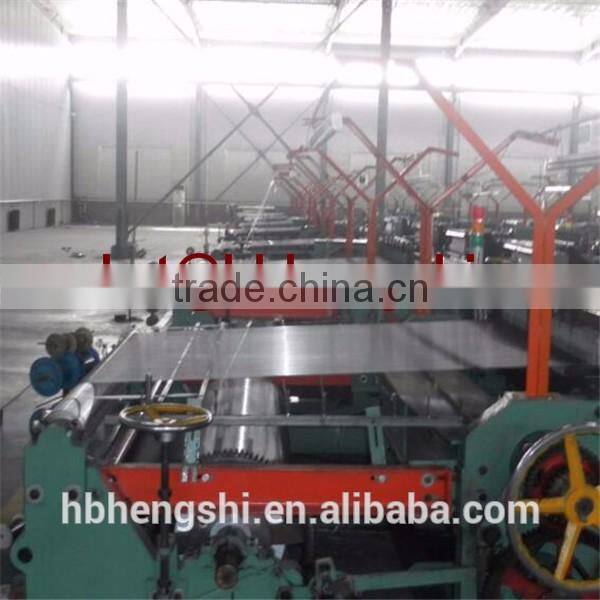

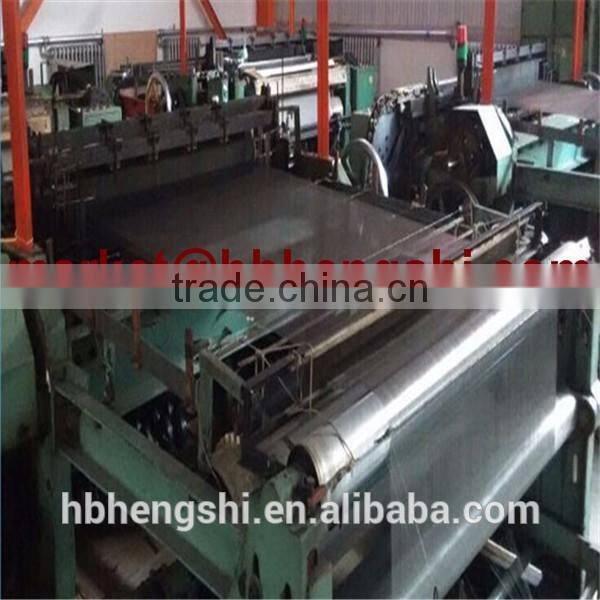

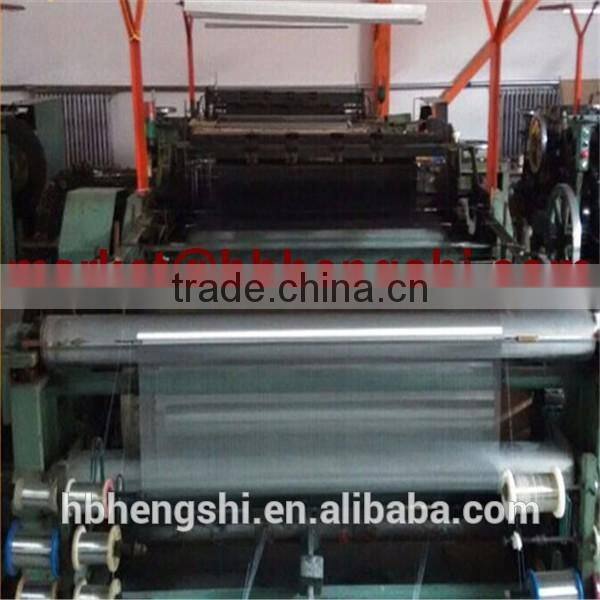

3. Process of production of stainless steel wire mesh :
4.Stainless Steel Wire Mesh Advantages
Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant, heat-resistant .

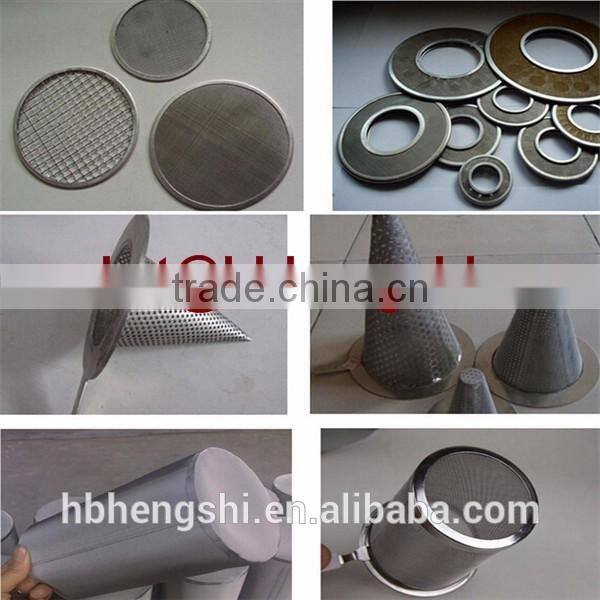

5. Stainless steel wire mesh Application:
- In acid, alkali environment conditions sieving and filtering.
- Petroleum industry as mud mesh,.
- Chemical fiber industry as screen mesh.
- Plating industry as acid cleaning mesh.

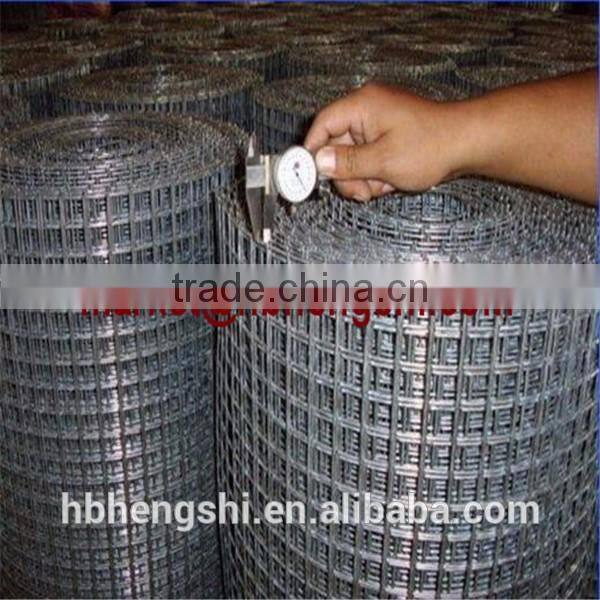

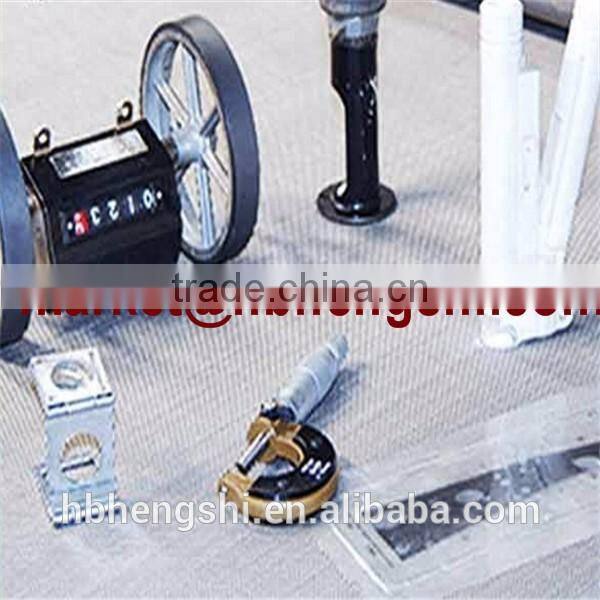

Strict Quality inspection
