Chain link fence paige wire fence barbed wire
Barbed wire Specifications

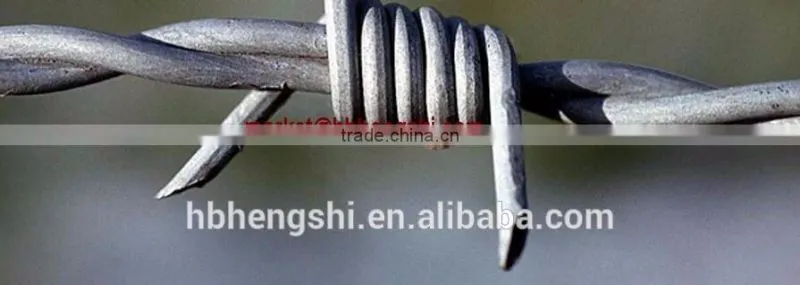

1.Barbed wire
1)Wire dia.2.1mm
2)Barbed distance:26mm-100mm
3)Barbed length:10mm-65mm
Barbed wire lead by the twist barbed wire machine is made up of full automatic. Folk commonly known as lifting. Product categories: single twist weave and double wire twist.
2.Raw materials:high quality low carbon steel wire (electric galvanized, hot dipped galvanized, plastic coated, plastic spraying), such as blue, green, yellow color.
Usage: used for pasture boundary, railway, highway isolation protection, etc
3. Galvanized Barbed Wire
Core of PVC coated barbed wire can be galvanized iron wire
A variety of colors like green, blue, yellow, orange, gray
Packing: In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C

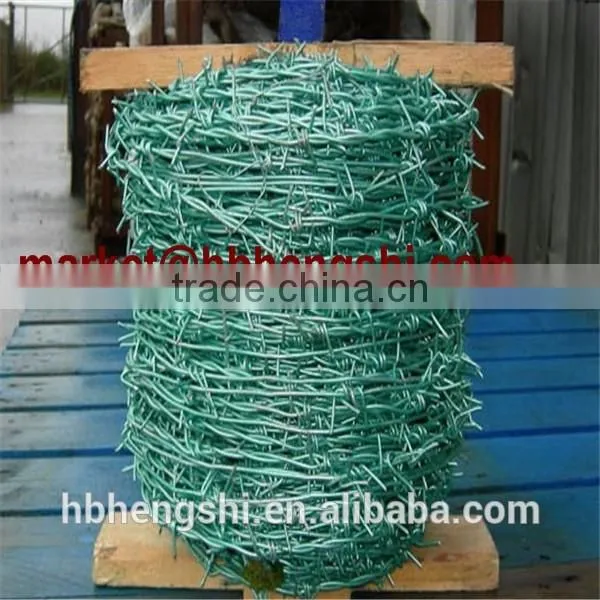

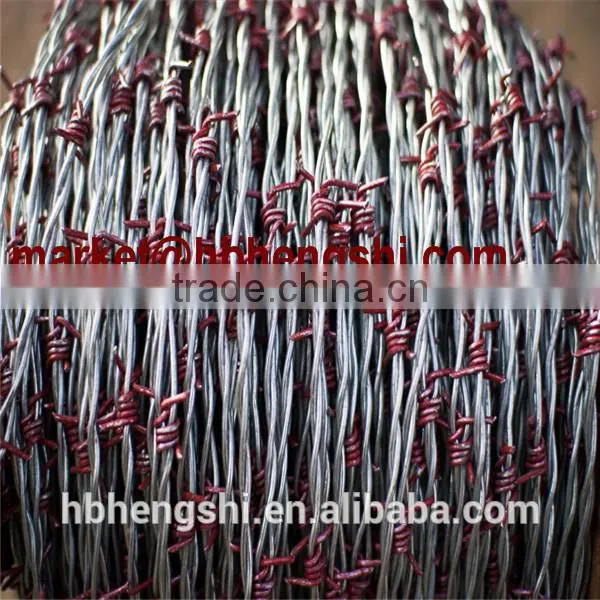

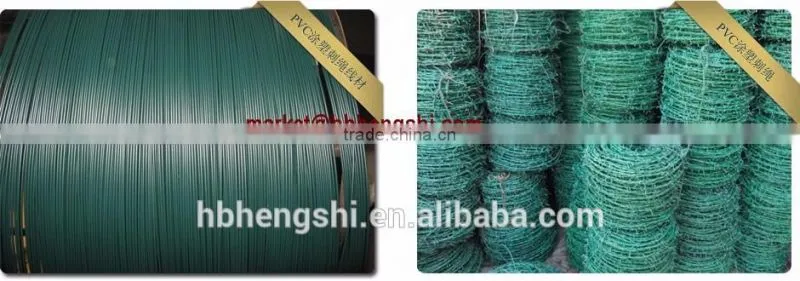

PVC Coated Barbed Wire

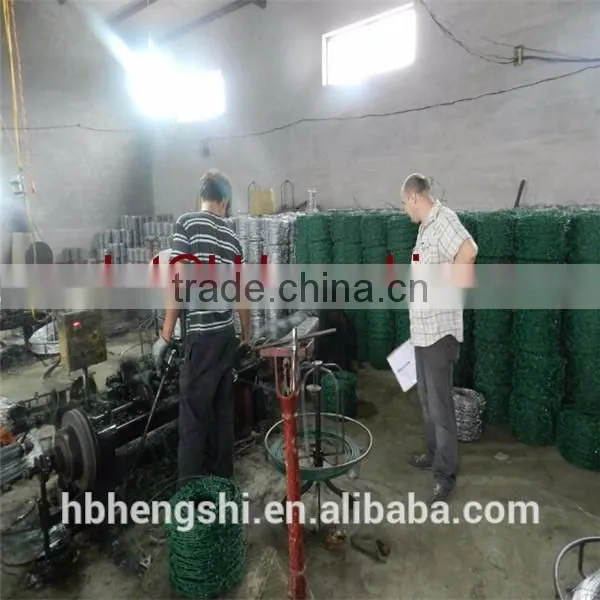

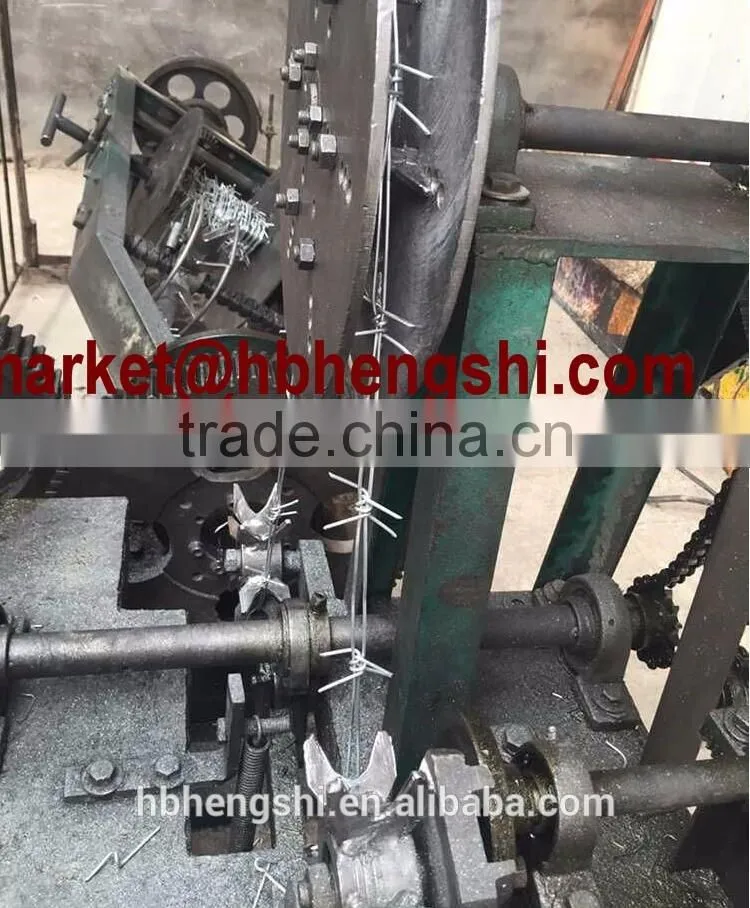

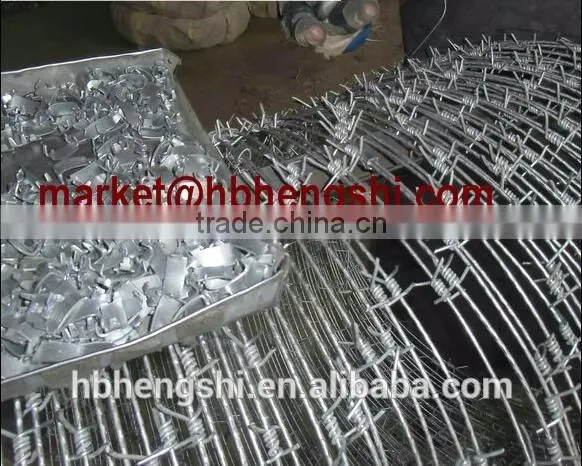

4.Barbed wire production process:
5. barbed wire information:
wire Gauge: 16#-12#
Barb Wire Gauge: 16#-12#
Barbed length:1-3cm
Barbed spacing:7.5-15cm
Weight:25kg,50kg
Weaving way: Twist, standard
Surface finished: Electro galvanized,Hot dipped galvanized,PVC coated
Weight of packing in coil: 25kg/coil,50kg/coil as standard
6. Barbed wire Specification List:
Gauge of |
Approximate Length per Kilo in Meter |
|||
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
14x16 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
Note: Customer request acceptable.
7.Features:
* Barbed wire has the feature of extremely difficult to cut and hard to climb.
* Barbed wire is very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action.
* Barbed wire enjoys good appearance.

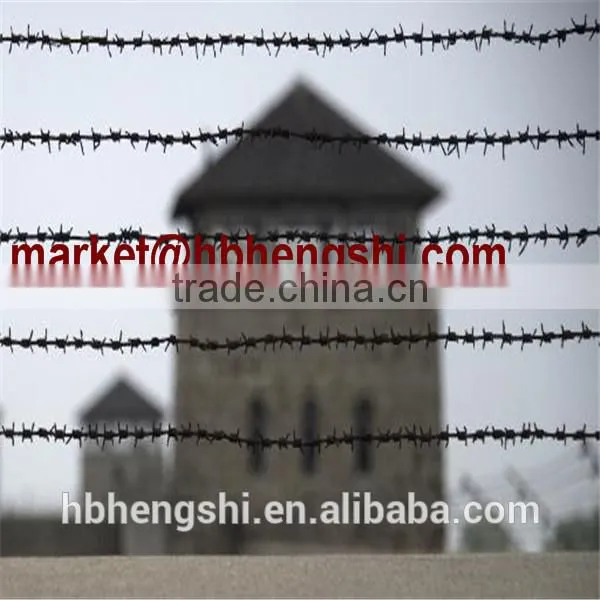

8. Application
Application: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape

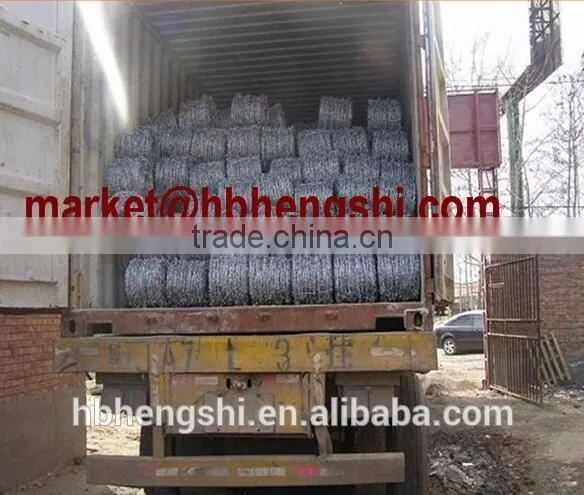

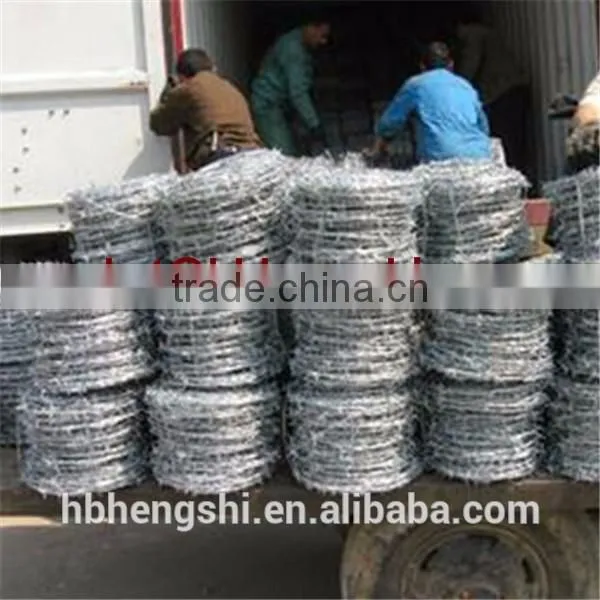

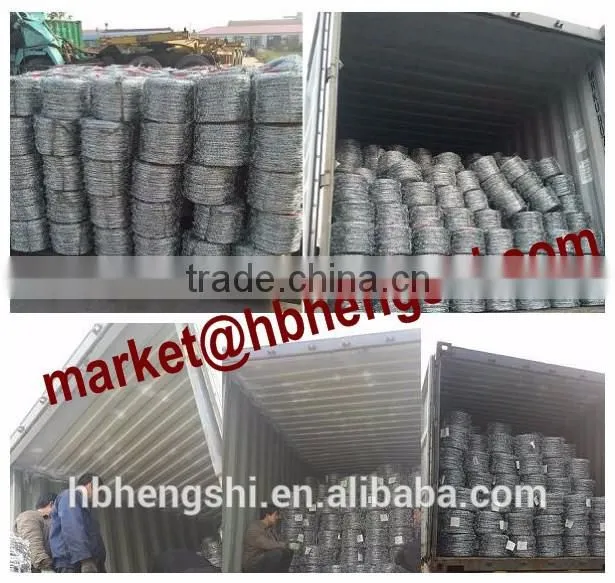

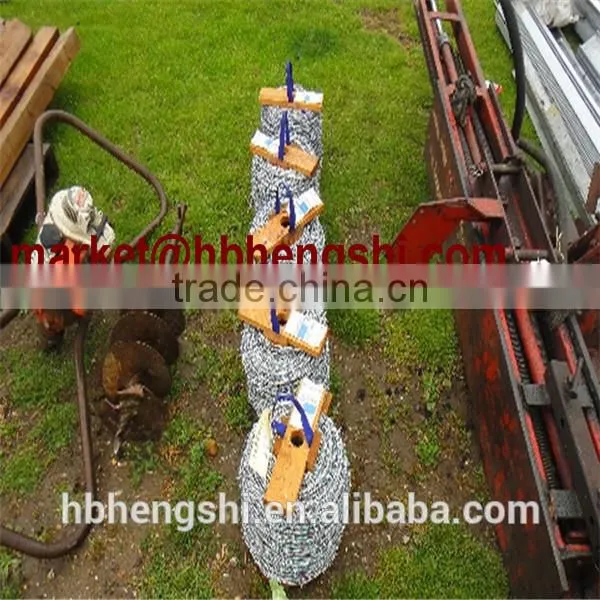

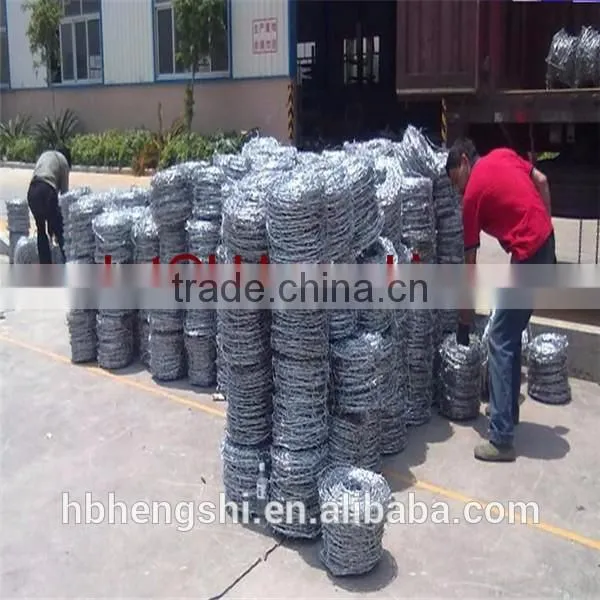

9. Packing:
Packing: barbed wire, barbed wire price, cheap barbed wire:
> Plastic inside, hessian outside; plastic inside,weaving bag outside 1)in nude coils 2)in iron axletree 3)in wood axletree 4) in wood pallet 5) in coils by bulk 6) waterproof paper+woven bag > According to your requirements
