Specification:
1.Factory with more than 20 years history
2.Full set of pre-sale and after-sale service
3.Professional engineers and mature technology workers
Full automatic pet food extrusion machine Machinery
Description of dry pet food extrusion machine
Pet food is plant or animal material intended for consumption by dogs or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.Different shapes can be made by adjusting the dies from extruder
Material of pet food extrusion machine
Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials

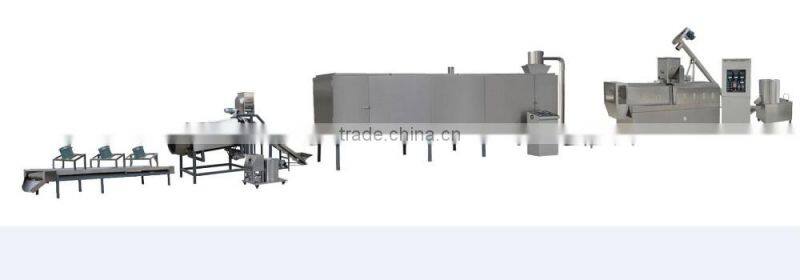

Flow chart of pet food extrusion machine
pet food samples produced by pet food machine
This pet food machine can be used to produce dog food, cat food, meanwhile it can produce
fish pellets; the pellets size can be from 1.5mm to 15mm by adjusting the moulds from extruder .
Voltage of pet food machine :
Three phases: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to
customers’ Local voltage in different countrie
Technical Parameter of Pet food extrusion machine
| Model | Installed capacity | Power consumption | Output | Length |
| SX65-I | 95KW | 55KW | 100-200KG/H | 15M |
| SX85-II | 110KW | 90KW | 200-300KG/H | 18M |
| SX95-II | 170KW | 130KW | 800-1000KG/H | 24M |
Main machines introdution of pet food extrusion machine

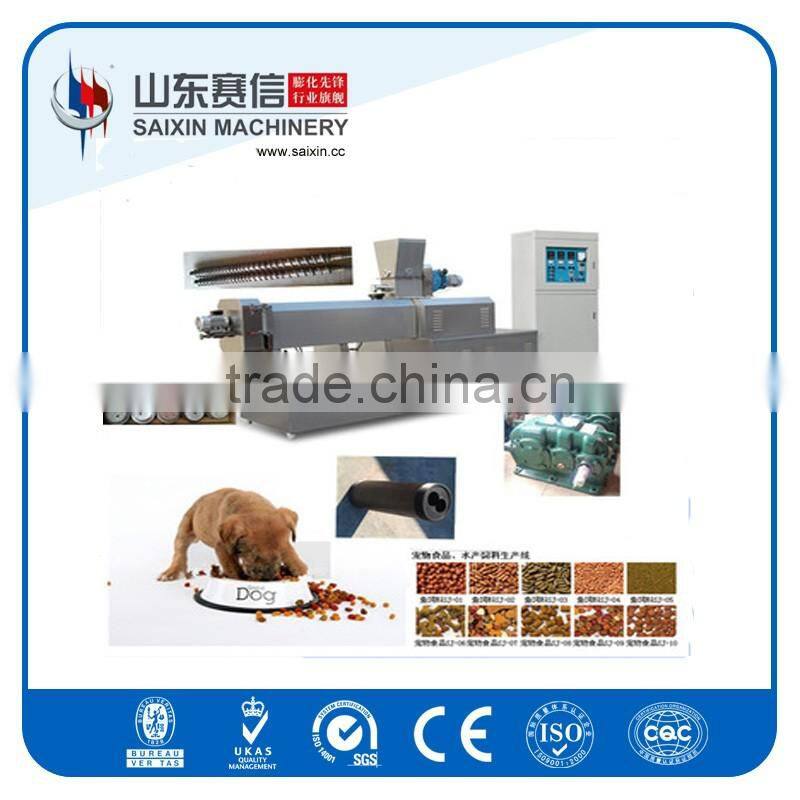

1. Twin screw extruder
- The main extruder adopts frequency speed controlling with high automation and stable performation.
- The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.
- Adopting the building block structure and combining willingly according to the different demand.
- The forced lubrication system,so that it can guarantee the equipment transmission life is longer
- Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
- Self-cleaning, screws can be cleaned by reputing wasted material.
- According to different screw design rate to full different technology request.
- With different structure, it is used in human food area and pet food area.

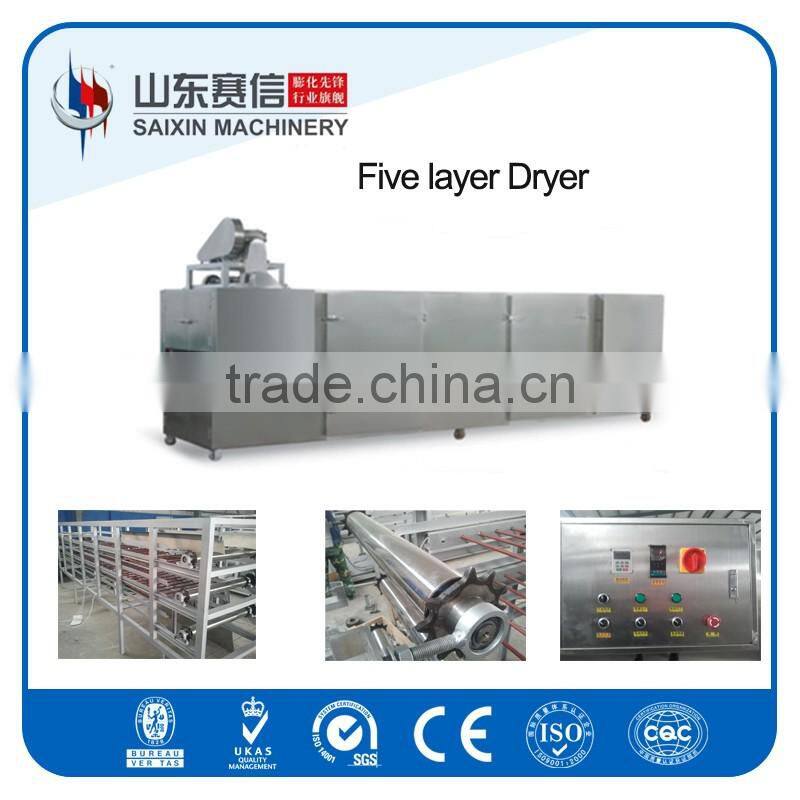

2. Electica oven
- .Food grade stainless steel mesh conveyor belt,free of damage to animal or human body.
- Drying temperature and time can be adjusted through the button on controller.
- World famous brand of electric parts,such as LG,FUJI,and Omron etc
- Various heating types are available, such as electric,gas,LPG,diesel and team.
- For small granule,mesh cloth need to put on conveyor belt to avoid leakage from the mesh.
- Different types of dryer can be made according to users' requirement based on layer,lenth,
- heating type,machine material etc
Professinal loading and strong package promising safe shipping for our customers.
If you are like,you cuold contact with me directly:
Contact: Eva Chow
Mobile:+86-15866711259
Whatapp: +86-15666776101
Skype:foodmachine881
