Ring die wood pellet machine with CE motor

Ring die wood pellet mill machine:

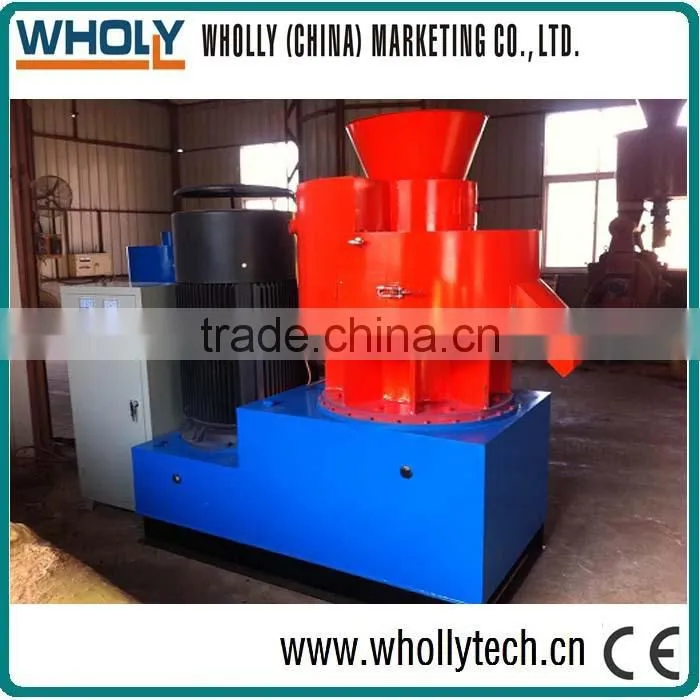

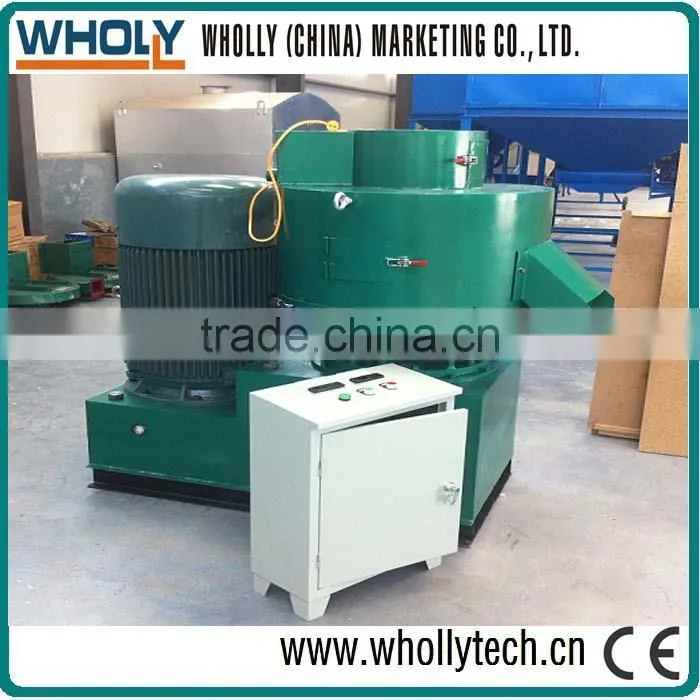

Design of the ring-die wood pellet machine: double vertical

The electrical motor is vertical, the ring-die is vertical.
They are professional machines for wood, straw, rotton stalk, rice husk, peanut shell, bamboo, empty fruit branch,

palm fiber, ect.

Advantage:

1. Gearbox: driving with high-precision gears, anto-matic lubricant pump system to keep the gearbox working stability.

    The warranty of the gearbox are 5 years.

2. Electrical motor: vertical design for the motor, mounting hole with output as the center, equidistant distribution around,

    more powerful and stability of machine working.

3. Blower system: Located in one side of work bin, free control the working time, the main function is dedusting

    and discharge steam.

4. Working parts: ring-die and roller materials are alloy steel, after heat treatment, the hardness can be more than 52.

     The serivice time can be 1800~2000 hours.

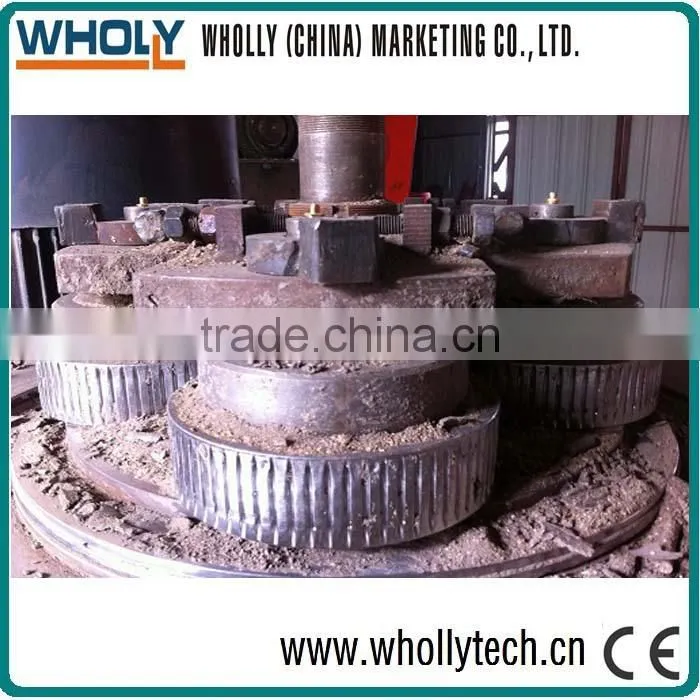

     The roller working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced

     more capacity. And the special design is 4-rollers working, to increase press rate.

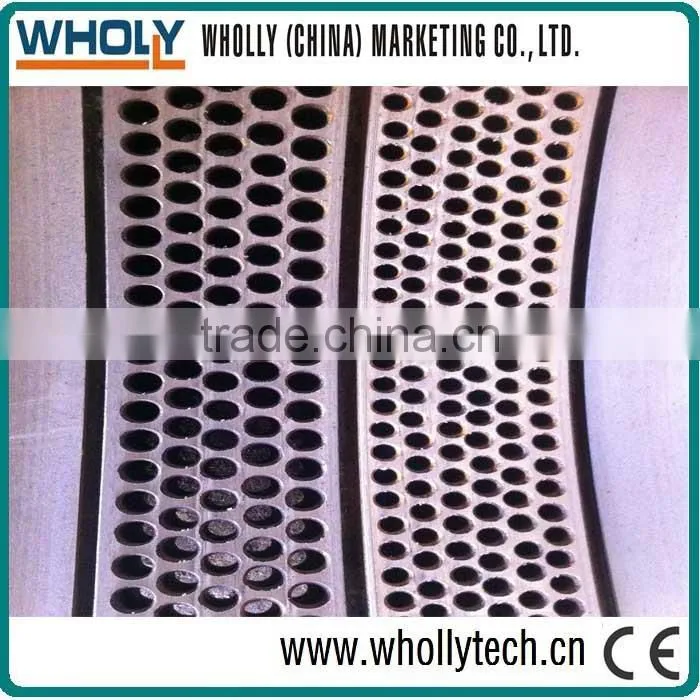

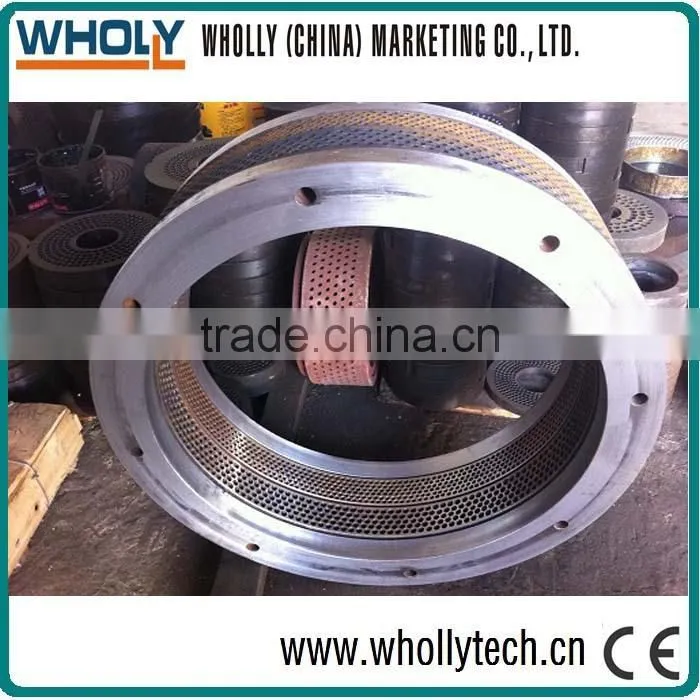

     Ring-die is vertical double-deck structure. It means you can use one mould with different hole size.

Technical Parameters:
