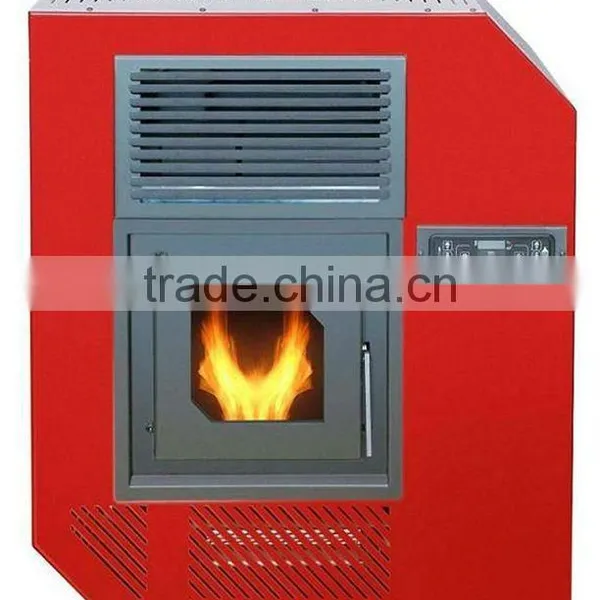

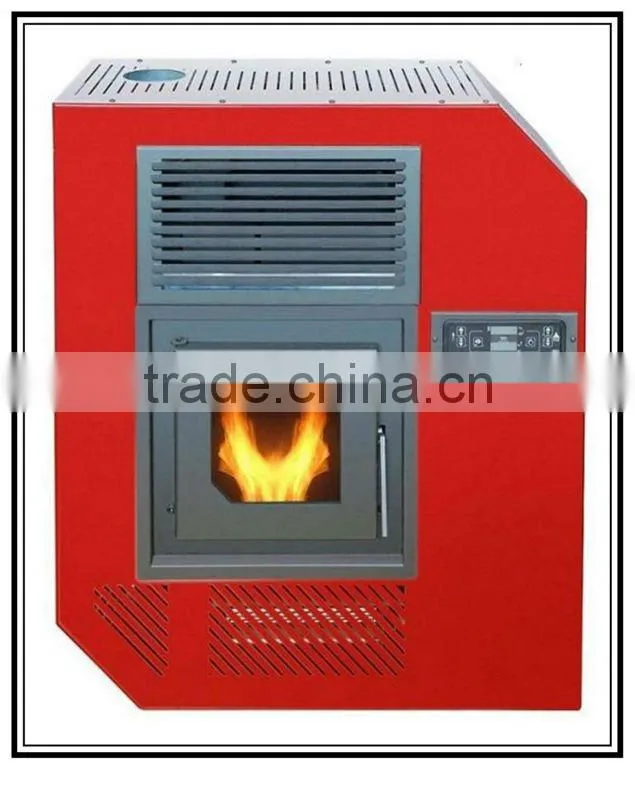

wood pellet stove

Specifications

1. Rated power: 7 KW
2. Heat area: 70 square metre
3. Consumption for Pellet(Min-Max): 0.6-1.6 KG/Hour

Products description:



1. Outside: steel-powder coating.

2. Inside: monobloc steel structure, hand welded, heat-resistant up to 1200°C with high temperature paint.

3. Door: carbon steel, high temperature resistant, with ceramic-glass.

4. Removable ash box: it collects the ash fallen through the holes in the brazier.

5. Glass-self cleaning: designing wind to blow ash from the glass keeps the glass always cleaning.

6. LCD control panel: it is placed on the upper side of the stove, simple and easy to be used. It is possible to plan the weekly switching on and off of the stove (week-end included).

7. Thermostat: The stove can keep the room's temperature stably. The temperature can be selected by users both on the panel and remote control, showing on the display.

8. Four steps power setting: it is up to your need, which also shows on the display.

9. Smoke outlet: ø 80 mm, inlet ø 50 mm.

10. Electrical supply: 230V-50Hz-1Ph. 120V-60HZ, 100V- 50HZ.

11. Remote Control: it is helpful to have the functions of on and off; Power low or high; temperature low or high; Auto or manual in your hands within 10 meters scope.

12. Automatically clean the dust inside the Burner: it is solved the problem of clogging to the burner when the ash value of biomass pellet is over 2%. Reduce the frequency of your cleaning times.



Technical parameter:



NB-PE07: 7KW                                          Heat area: 70m²
Air inlet Pipe	mm	50
Air outlet Pipe	mm	80
Automatic Burning Time(Min~Max)	hour	11~30
Consumption for Pellet(Min~Max)	kg/hour	0.6~1.6
Efficiency	%	82%
Hopper Capicity	kg	18
Electricity comsuption	w/hour	100~400
Rating Valtage and Frequecy	V/Hz	230/50
Dimension(W*H*D)	mm	724*800*326
Export carton size(W*H*D)	mm	371*940*765
N.W/G.W	kg	105/120
QTY/20"/40"/40HC	pcs	84/168/168
