Specifications
We have years of experience selling this kind of product, and provide a whole solution for home floor heating system.We have 12 kinds of aluminum radiators of different capacities, which will definitely meet your requirement for the appearance and target market.
We are providing the whole floor heating solution, which include pipes, fittings ,valves and so on .We sincerely welcome those companies specilized in providing similar solution locally.
Our price may not be the lowest ,but our quality is garanteed by our years experience in this field and certificates like EN- ISO 9001:2000,RHOS. CE&EN-442 . I am sure we will have a win-win coorperation if you send a inquiry right now.
| Die Casting Aluminimum Radiator | ||||||
| Model No. | Size (H*L*D)mm | Central Distance (H)mm | Radiating(T=70°C) (W/pc) | Connecting size (inch) | Weight (kg/pc) | Water Capacity (L/pc) |
| TM-290001 | 452*80*85 | 350 | 145 | 1″or 3/4"or 1/2" | 1.15 | 0.25 |
| TM-290002 | 582*80*85 | 500 | 200 | 1″or 3/4"or 1/2" | 1.35 | 0.38 |

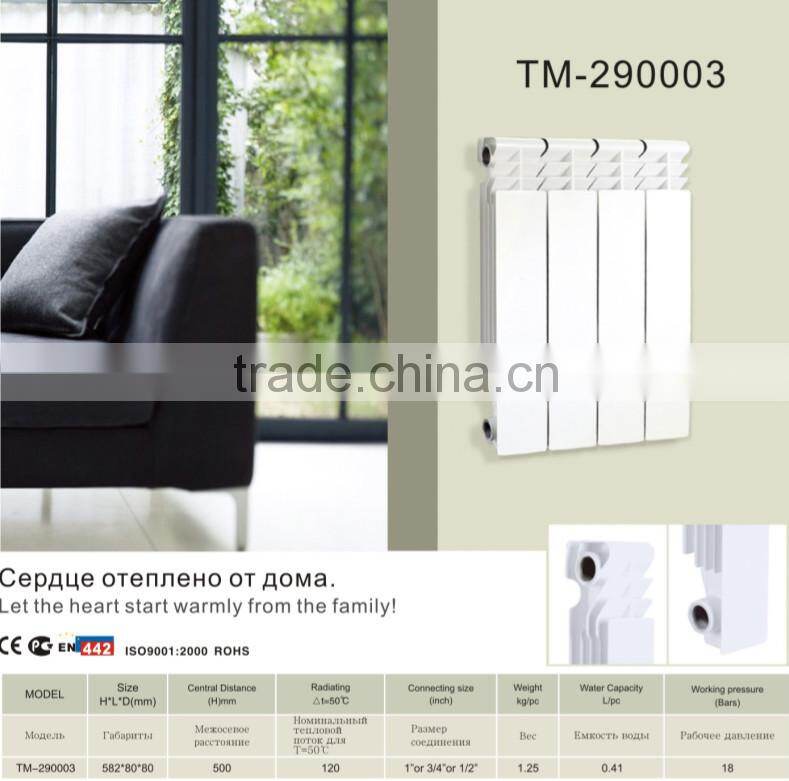

| TM-290003 | 582*80*80 | 500 | 196 | 1″or 3/4"or 1/2" | 1.25 | 0.38 |
| TM-290004 | 682*80*85 | 600 | 228 | 1″or 3/4"or 1/2" | 1.65 | 0.41 |
| TM-290012 | 582*80*85 | 500 | 200 | 1″or 3/4"or 1/2" | 1.35 | 0.38 |
| TM-290008 | 582*80*100 | 500 | 198 | 1″or 3/4"or 1/2" | 1.38 | 0.48 |
| Bimetal Radiator(Steel-Aluminum Radiator ) | ||||||
| Model No. | Size (H*L*D)mm | Central Distance (H)mm | Radiating(T=70°C) (W/pc) | Connecting size (inch | Weight (kg/pc | Water Capacity (L/pc) |
| TM-290005 | 582*80*85 | 500 | 200 | 1″or 3/4"or 1/2" | 2.27 | 0.4 |
| TM-290006 | 582*80*80 | 500 | 195 | 1″or 3/4"or 1/2" | 2 | 0.4 |
| TM-290007 | 432*80*85 | 500 | 145 | 1″or 3/4"or 1/2" | 1.5 | 0.25 |
| Curve Models | ||||||
| Model No. | Size (H*L*D)mm | Central Distance (H)mm | Radiating(T=70°C) (W/pc) | Connecting size (inch) | Weight (kg/pc) | Water Capacity (L/pc) |
| TM-290010 | 582*80*100 | 500 | 202 | 1″or 3/4"or 1/2" | 1.35 | 0.38 |
we are a professional OEM manufacturer and supplier of brass products in China. We have more than 10 years of experience manufacturing brass fittings for different kind of piping systems, especially for screw and press fittings for PEX-AL-PEX (multilayer pipes), PEX pipes; we also produce brass valves, brass manifolds for underfloor heating, brass inserts for PPR fittings and many others.

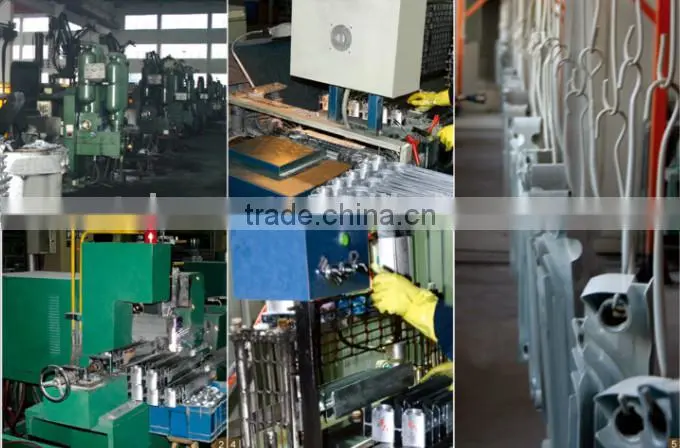

Our factory is equipped with over 200 sets of machines & equipments including production machinery such as CNC Multi-Spindle Process Machines, CNC Machines, Torque-Controlled Assembly Equipments & Production Assembly Line, as well as testing devices such as Spectolab, Pressure Tester & Life Time Tester. Auto CAD and 3D solid simulating design system are introduced into the complete process throughout R&d and production.
500 employees work in our company, of whom about 80 are technicians, engineers and QC engineers, providing continuous and powerfull supports to our development & creation in technologies and quality assurance as well as improvement.
Strictly abiding by quality management system of ISO9001:2000,the company runs the whole managing progress of R&D, Material Input, PRP(product realization process), inspection & testing and consignment delivery service
All our products are exported to most parts of the world, such North and South America, Europe, Russian countries and Middle East. We promise to give our clients high quality products, reasonable prices and good services.
Sample can be free , and will be sent within 3 days after confirmations.
