Rotary drum dryers price
If more details, please contact:
Alice
18353139932
Skype: alice chusongtao
Coconut Corpa dryer introduction as below :
1 Dryer Machine is mainly to dry biomass or Fertilizer powder materials ,at max feed 15mm dimension materials, it has changeable speed rotary drum , which can dry high humidity materials, such as to dry biomass from sawdust, straw, stalk,e.c.t and fertilizer materials from poultry manure , home or
factory waste
2.Dryer machine dryer drum RPM can be controlled according to raw materials humidity. If humidity is large, then can control feeding speed and drum RPM lower to make longer drying time. The longer drum ensure high heat use efficiency.
3. Dryer machine has temperature adjusting equipment between stove and dryer, which can adjust the hot air temperature before feeding to drum according to raw materials humidity
,after adjusting, then feed to dryer drum
4. Dryer machine has two ways to discharge materials,
one is to outlet from rotary drum bottom, it is mainly fit for large weight ratio materials , the other is to outlet materials from cyclone bottom , which mainly fits for light ratio materials . On one hand with high drying efficiency , on the other hand clean dust.
Parameter for Dryer machine :
Model |
Power (kw) |
Steam Evaporation capacity (ton) |
DZLP0.8*6*1 |
4+3 |
0.1-0.2 |
DZLP0.8*12*1 |
4+5.5 |
0.2-0.3 |
DZLP01*6*1 |
4+7.5 |
0.2-0.3 |
DZLP01*12*1 |
5.5+7.5 |
0.4-0.5 |
DZLP1.2*12*1 |
5.5+7.5 |
0.4-0.6 |
DZLP1.4*12*1 |
5.5+11+7.5+3 |
0.6-0.8 |
DZLP1.5*12*1 |
5.5+15+7.5+4 |
0.8 |
DZLP1.6*12*1 |
5.5+18.5+7.5+4 |
0.8-1 |
DZLP1.6*24*1 |
7.5+22+15+5.5 |
1.1-1.2 |
DZLP1.8*12*1 |
7.5+18.5+11+4 |
0.8 |
DZLP1.8*12*3 |
11+30+5.5 |
1 |
DZLP1.8*24*1 |
11+30+4 |
1 |
DZLP2*12*1 |
7.5+22+11 |
1.2 |
DZLP2*12*3 |
11+45+5.5 |
1.5 |
DZLP2*24*1 |
7.5+37 |
1.2 |
DZLP2.2*12*1 |
7.5+22+4 |
1.2 |
DZLP2.2*12*3 |
11+45 |
1.5 |
DZLP2.2*24*1 |
7.5+37 |
1.8 |
DZLP2.5*12*1 |
15+22+4 |
1.5 |
DZLP2.5*12*3 |
18.5+45 |
1.8 |
DZLP2.5*24*1 |
15+37 |
1.8 |
DZLP2.8*12*1 |
18.5+30+4 |
1.8 |
DZLP.8*12*3 |
22+55 |
1.8 |
DZLP2.8*24*1 |
22+45 |
2.4 |
DZLP3*12*1 |
22+45+4 |
2.5 |
DZLP3*12*3 |
30+55 |
2.5 |
DZLP3*24*1 |
22+45 |
3 |
DZLP3.5*24*1 |
30+45+5.5 |
3.6 |
DZLP3.5*12*3 |
75+45 |
3.8 |
DZLP3.5*24*1 |
22+45 |
3 |
About Us:
As a professional manufacturer of biomass rotary dryer with CE & ISO certificate in China, we can take responsibility to our every client very seriously.
The rotary dryers use for drying many kinds of materials and finished products, such as the crop straw powders, sawdusts, small wood shavings/chips, animal waste, household waste and so on. The dryers generally applied to the farm straw processing plant, wood working factory, organic fertilizer factory and Chinese medicine factory.
The rotary dryers adopt air inhale device to inhale the hot air from air-heating furnace to the inner of dryer to complete heating change with wet material. According to the different character of materials, we use different type lifting plate and Anti-sticking measures.

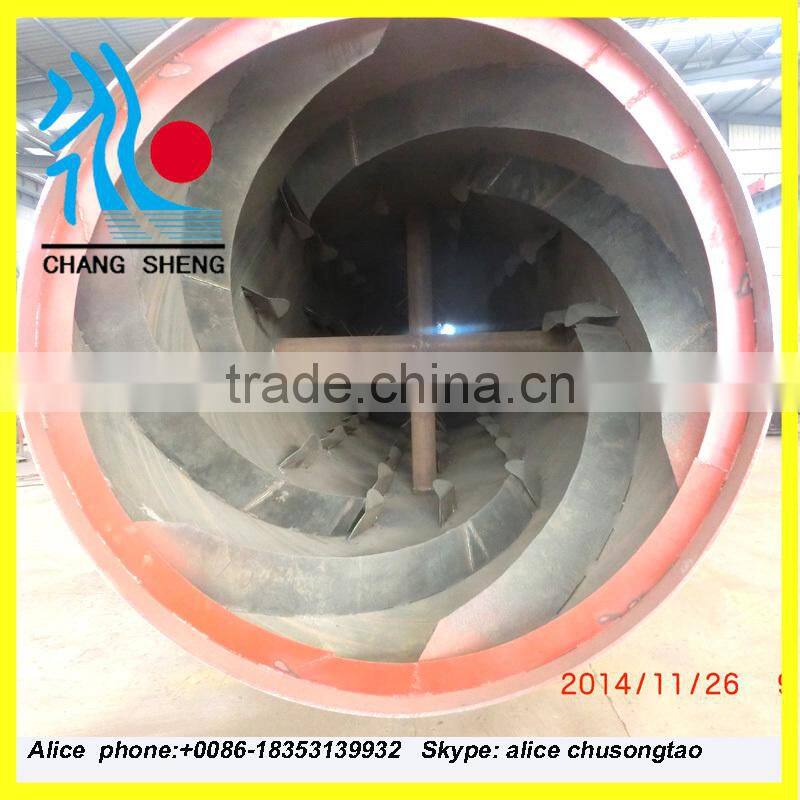

There are multi angle lifting style lifting plate inside of rotary dryer; during drying, the lifting plate will raise the material evenly, which can ensure the material complete heating change with the hot air enough and also ensure the drying efficiency is good.
contact information:
Alice
skype: alice chusongtao
phone:+0086-18353139932
