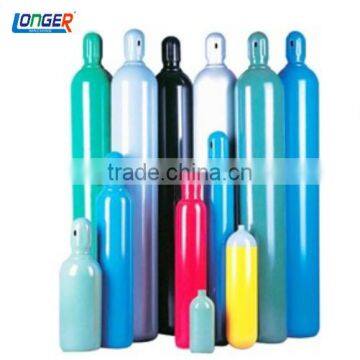

big gas cylindersHigh quality and security gas cylinders
High porosity and can be filled with full dose gas.
big gas cylinders
1. big gas cylinders Performance:
Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of
cutting,welding,illumination,chemical analysis,military projects and so on.There are advantages of safety, energy conservation,convenience, little pollution so and ao fourth.
Our products are welded by high grade and low alloy steel plate ,cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.
The products have the advantages of high porosity,much filling gas and so on.
The big gas cylinders produced by our company have the stable quality,safe economy.
They are well received by customers.
2. Structure of the big gas cylinders :
3. big gas cylinders -Specification:
| Nominal Capacity | 40L | |
| Nominal Diameter | 250mm | |
| Limited Filling Pressure(15c) | 1.52Mpa | |
| Hydrostatic Test Pressure | 5.2Mpa | |
| Air Test Pressure | 3 Mpa | |
|
Material properties |
Compressive Strength | ≥1.8N/mm2 |
| Porosity | 90~92% | |
| Volume Density | ≤270g/L | |
| Shoulder Axia Gap | ≤2.5mm | |
| Solvent | acetone | |
| Filling Gas Quantity | About7.2kg approx7.2kg | |
| Environmental Temperature | under 40 | |
4. The main technical targets:
- Material Porosity:90~92%
- Material Volume Density:≤270g/L
- Material Compressive Strength:≥1.8N/mm2
- Fusible Alloys Operating Temperature:100±5°C
5. Pass the followed tests:
1,falling and tempering test
2,analogue fire test
3,water bath.heating-up test
4,operation performance test
