portable water well used drilling rig for sale
- 300 Set / Sets per Month
- China main ports for used drilling rig
- Credit Card PayPal
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | Lance | Model Number: | LJ130 |
| Usage: | Water Well | Voltage: | 220v/380v | Power(W): | 1000kw |
| Dimension(L*W*H): | 5700*2300*2700mm | Weight: | 560kg | Certification: | CE |
| Warranty: | 2 years | After-sales Service Provided: | Overseas third-party support available |
Product Description
portable water well used drilling rig for sale
Applications:
Geological general investigation and exploration, road and tall building groundsill exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil water wells and geothermal air conditioner, etc.
Parameters:
Unity machine parameter | |
Drilling depth | 200m |
Max. open hole caliber | 220mm |
End hole caliber | 75mm |
Drill pipe caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight | 560Kgs |
Spindle | |
Spindle speed: | 142,285,570r/min |
Spindle stroke: | 450mm |
Hoist | |
Max. lifting capacity: | 1600Kgs |
Single line lifting speed: | 0.41,0.82,1.64m/s |
Reel caliber: | 140mm |
Tightrope caliber: | 13mm |
Tightrope size: | 27mm |
Mud pump | |
Type: | Horizontal single-urn double action |
Flow Diesel engine/Electric motor: | 95/97L/min |
Max. pressure: | 1.2Mpa |
Work pressure: | 0.7Mpa |
Water inlet diameter: | 30mm |
Water outlet diameter: | 20mm |
Triangle conveyer belt: | B1575mm |

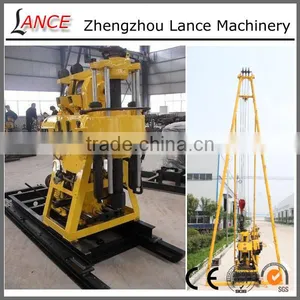

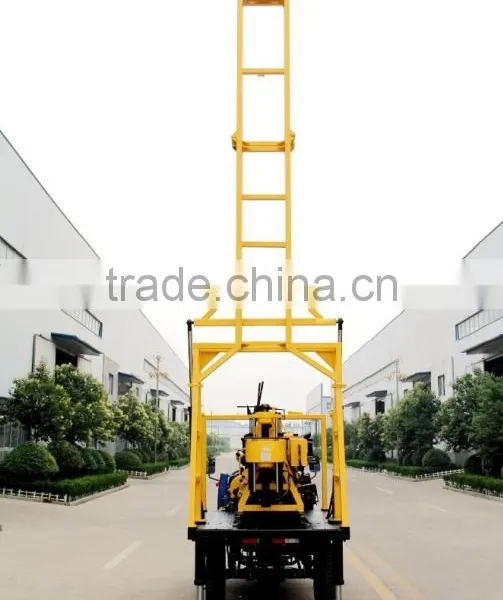

Equipment photos:
Working field:
Our service:
1. quick response, enquiries or questions shall be answered within 12 hours
2. professional advice helping you get ideal items
3. top quality goods with international certificates
4. prompt shipment by reputed shipping lines with professional documents for goods picking up
5. 24 hours on line after-sale service, removing international purchase worries
Main certificates:
