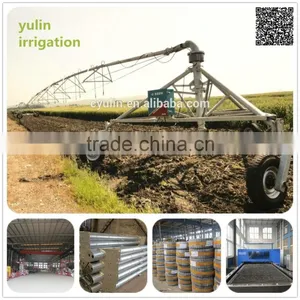

Help CenterHigh Effecient China Center Pivot Irrigation System Used for Large Farmland
Related Products
-
Agriculture Farm Towing Irrigation System for Farm Irrigating of Three Wheels and Four WheelsUS$ 5,000 - 50,000MOQ: 1 Set -
Yulin Cosechadora de Cebolla/Agriculture Center Pivot Irrigation System /Riego de Pivote Central CostoUS$ 5,000 - 50,000MOQ: 1 Set
-
Center Pivot Irrigation System/Lateral Move Irrigation Machine/Towing Irrigating EquipmentUS$ 5,000 - 50,000MOQ: 1 Set
-
Three Wheels and Four Wheels Towing Pivot Agriculture Irrigation System for SaleUS$ 5,000 - 50,000MOQ: 1 Set
-
Towing Center Pivot Agricultural Sprinkler Irrigation With High Quality for Three WheelUS$ 5,000 - 50,000MOQ: 1 Set
towing irrigation system standard:
Main pipe diameter of center pivot irrigation |
6-5/8 (168mm*3.2mm,high frequency welded steel pipe) |
Standard span of towing irrigation |
6-5/8"(168mm) *54.5m(8 pipes) |
Cantilever pipe |
5-9/16″(141mm) |
King-sized cantilever pipe |
4″(101mm) |
Pipe length |
22 feet/one, (6.7m) |
Sprayer of center pivot irrigation |
USA Nelson D3000/R3000 |
Power supply mode |
diesel generator and the local power company provide |
Main pipe Flange |
Thickness:10mm(double welded technology.) |
Working voltage |
460--380V/50--60HZ |
Tire type of center pivot irrigation |
14.9 * 24 irrigation tire |
Span body tower structure |
adopt “V” model tower |
Main cable |
4*4mm²+6*1.5mm²(resisting ultra violet and aging) |
Motor speed reducer |
electric transmission gear box (American Brand ) |
The end |
LED working status instruction light |
Motor power of center pivot irrigation |
0.75~1.5 horse power |
Motor speed reducer |
output speed of electric transmission gear box :28--86RPM |
Sprayer spacing |
2.2-4m(the quantity:2-3 sprayer/water pipe |
Irrigation intake |
1 water inlet in center point, quick pipe joint connected structure |
Irrigation intake caliber |
8 inches, the spot water supply pipe is more than 6 inches. |
Irrigation intake pressure |
0.20—0.35mpa |
Standard irrigation truss height from the ground |
3.2m |
After complete machine steel components are welded, it adopts hot galvanizing.
Yulin Irrigation Equipment Co., Ltd is the leading manufacturer for irrigation equipment in China. We had started to supply the center pivot irrigation systems for world famouse irrigation company of American Lindsay since 2000. We are the OEM rpoduction manufacturer of Lindsay from 2000 to 2008,and also the only one factory was certified by them on teconology,process,quality and understand.We had supplied more than 1000 sets of large scale irrigation for many irrigation companies all over the world.
Yulin will dedicated to the construction and development of Modern Agriculture .We will supply advanced irrigation facilities, efficient installation &training programs for the customers all over the world.We also own one professional after-sale service team to service for you at any time.We hope to set up long business relationship with you in the near future.
Packing&Shipping:We will supply the standard exporting wooden box to load the irrigation accessories,and then put these boxes and the whole irrigation parts into the 40'OT or HQ container,and ready to ship to other countries all over the world throughout the famouse shipping line such as COSCO,ZIM,CMA or the appointed shipping agent of foreigner clients.
Pure quality—Yulin Irrigation—Perfect service:
1.best before—sale design.
2.Careful installation and debugging.
3.Satisfactory after service.

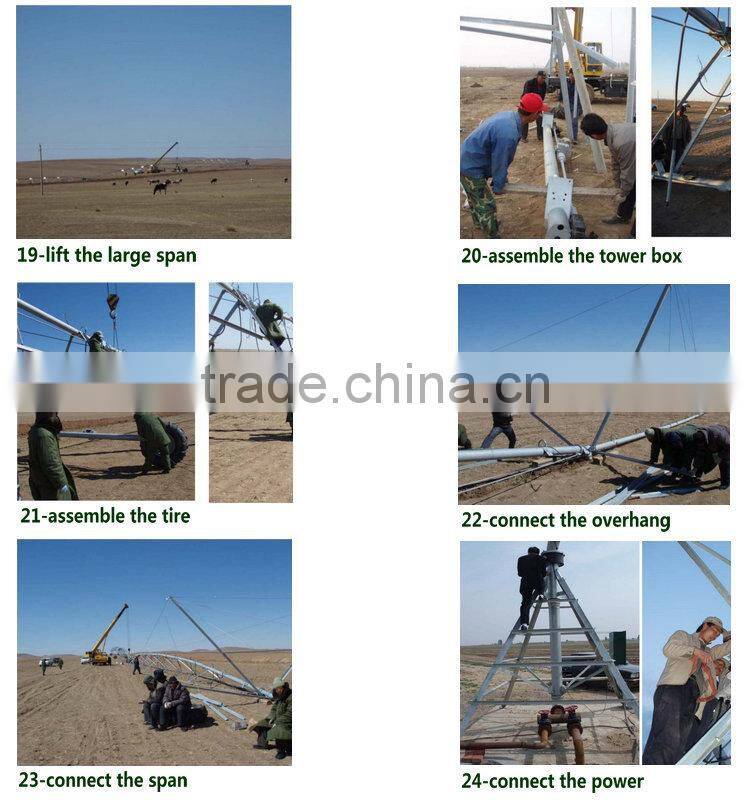

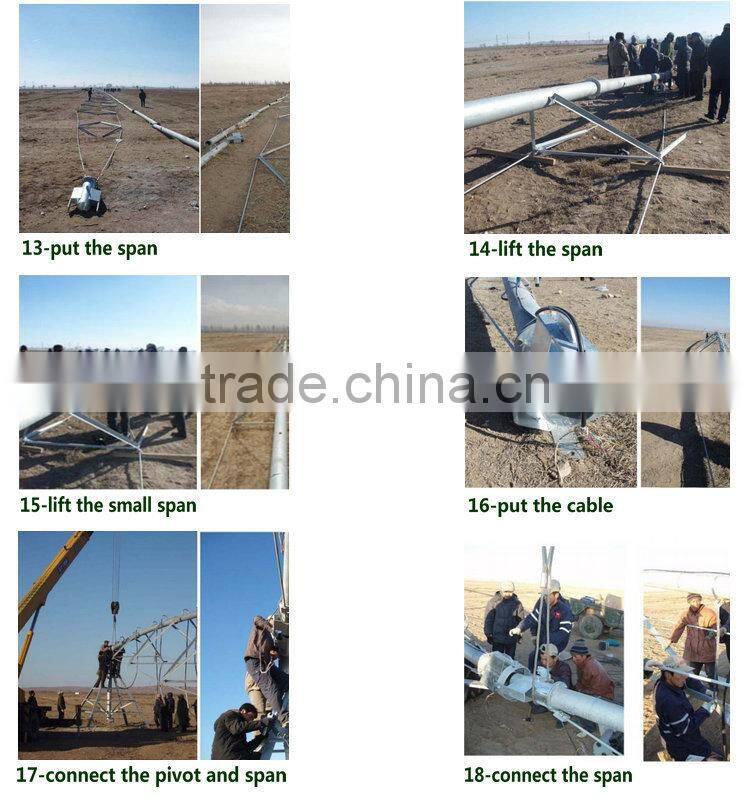

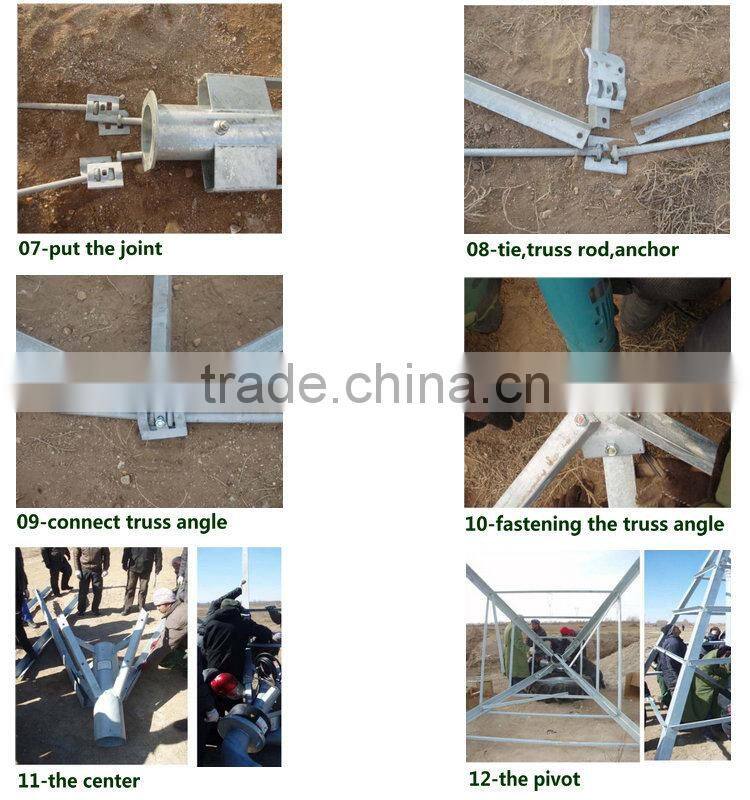

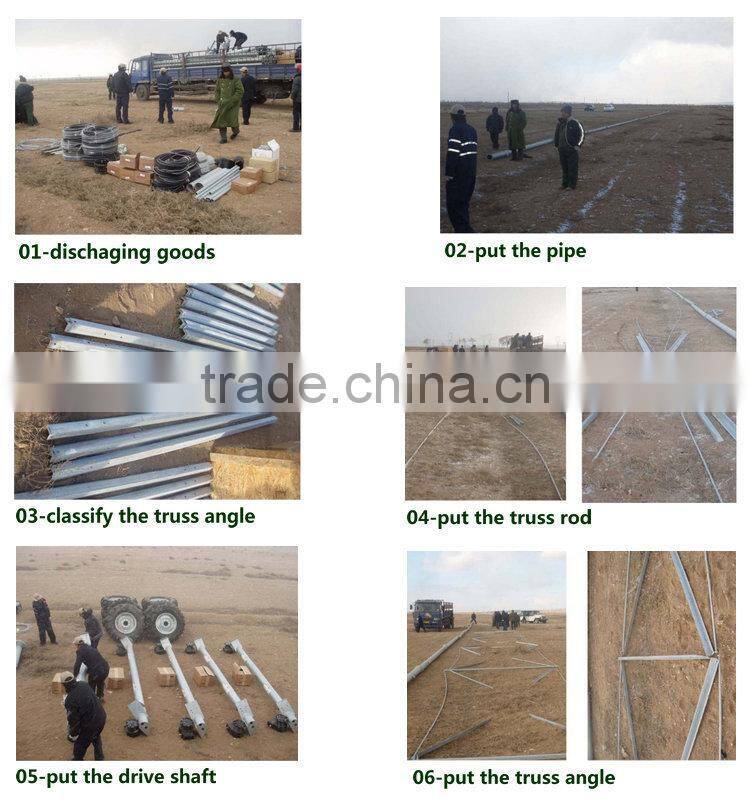

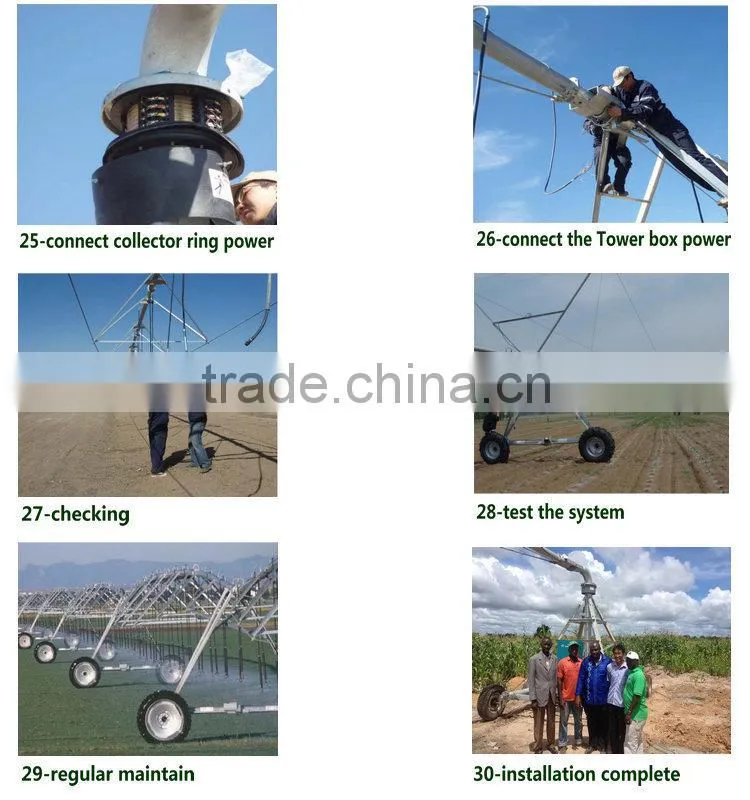

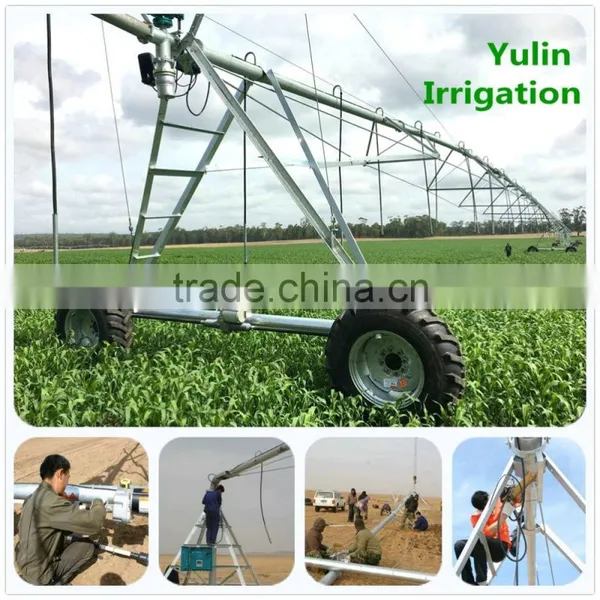

The installation step for irrigation system:
irrigation system parts:

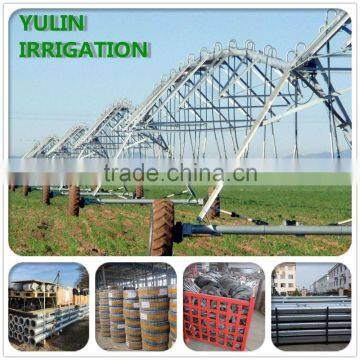

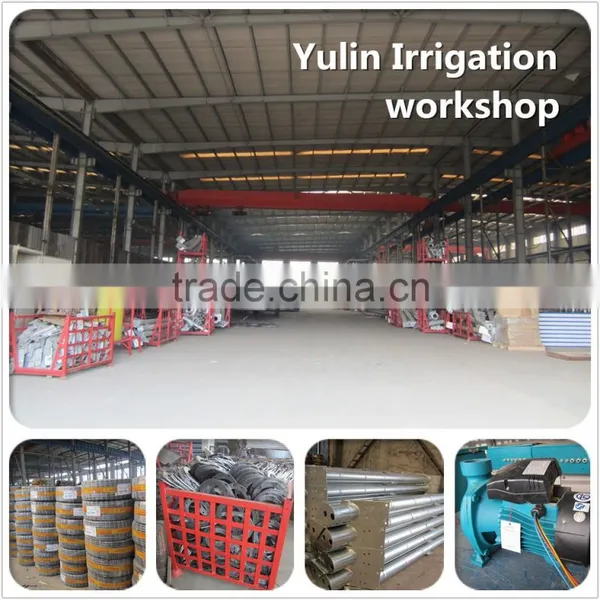

Agriculture irrigation plant by Yulin:
