Agriculture Farm Towing Irrigation System for farm irrigating of three wheels and four wheels
1, Specification of farm towing irrigation system
Main pipe diameter of sprinkler irrigation machine |
6-5/8 (168mm*3.2mm,high frequency welded steel pipe) |
Standard span of sprinkler irrigation machine |
6-5/8"(168mm) *54.5m(8 pipes) |
King-sized span |
6-5/8"(168mm) *61.3m (9 pipes) |
Cantilever pipe |
5-9/16″(141mm) |
King-sized cantilever pipe |
4″(101mm) |
Pipe length |
22 feet/one, (6.7m) |
Sprayer of sprinkler irrigation machine |
USA Nelson D3000/R3000 |
Power supply mode |
diesel generator and the local power company provide |
Main pipe Flange |
Thickness:10mm(double welded technology.) |
Working voltage |
460--380V/50--60HZ |
Tire type of sprinkler irrigation machine |
14.9 * 24 vacuum irrigation tire |
Span body tower structure |
adopt “V” model tower |
Main cable |
4*4mm²+6*1.5mm²(resisting ultra violet and aging) |
Motor speed reducer |
electric transmission gear box (American Brand ) |
The end |
LED working status instruction light |
Motor power of sprinkler irrigation machine |
0.75~1.5 horse power |
Motor speed reducer |
output speed of electric transmission gear box :28--86RPM |
Sprayer spacing |
2.2-4m(the quantity:2-3 sprayer/water pipe |
Irrigation intake |
1 water inlet in center point, quick pipe joint connected structure |
Irrigation intake caliber |
8 inches, the spot water supply pipe is more than 6 inches. |
Irrigation intake pressure |
0.20—0.35mpa |
Standard irrigation truss height from the ground |
3.2m |
2, Introduction of Yulin Irrigation Equipemnt Co., Ltd
Yulin Irrigation Equipment Co., Ltd is the leading manufacturer for irrigation equipment in China. We had started to supply the center pivot irrigation systems for world famouse irrigation company of American Lindsay since 2000. We are the OEM rpoduction manufacturer of Lindsay from 2000 to 2008,and also the only one factory was certified by them on teconology,process,quality and understand.We had supplied more than 1000 sets of large scale irrigation for many irrigation companies all over the world.
Yulin will dedicated to the construction and development of Modern Agriculture .We will supply advanced irrigation facilities, efficient installation &training programs for the customers all over the world.We also own one professional after-sale service team to service for you at any time.We hope to set up long business relationship with you in the near future.
3,Packaging of farm towing irrigation system
Packing&Shipping:We will supply the standard exporting wooden box to load the irrigation accessories,and then put these boxes and the whole irrigation parts into the 40'OT or HQ container,and ready to ship to other countries all over the world throughout the famouse shipping line such as COSCO,ZIM,CMA or the appointed shipping agent of foreigner clients.

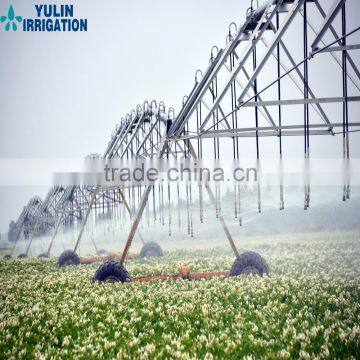

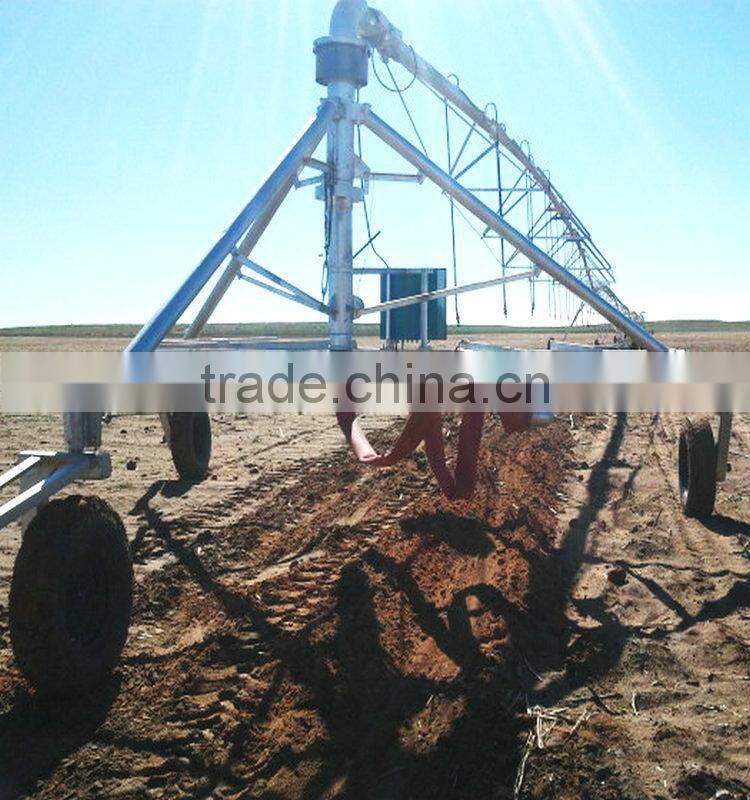

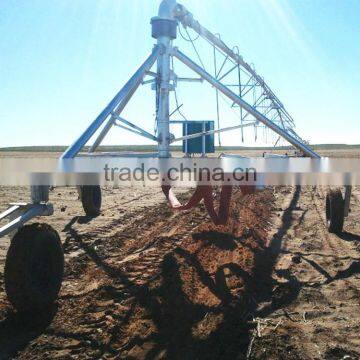

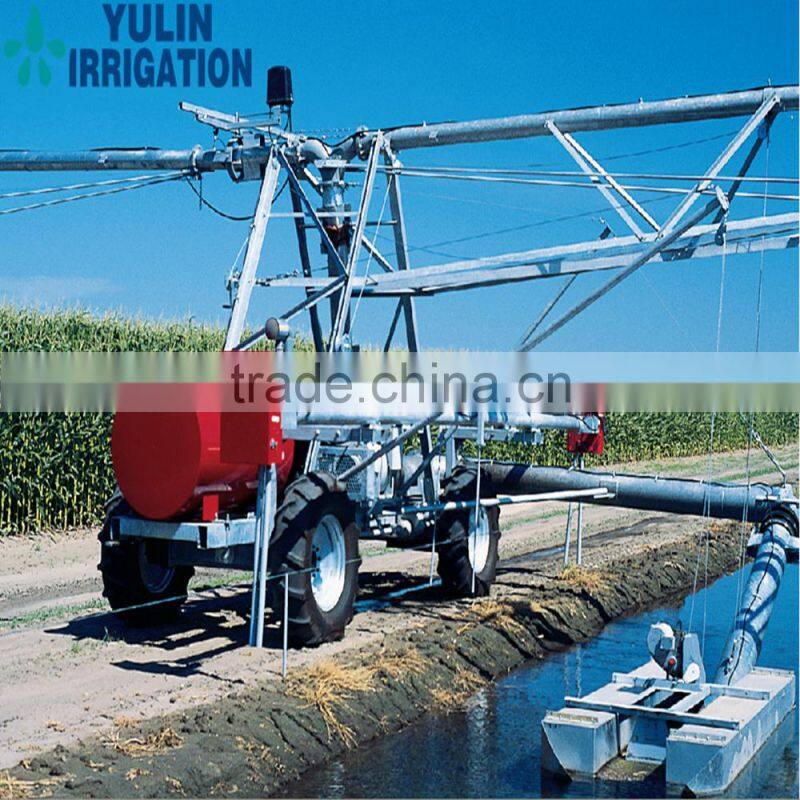

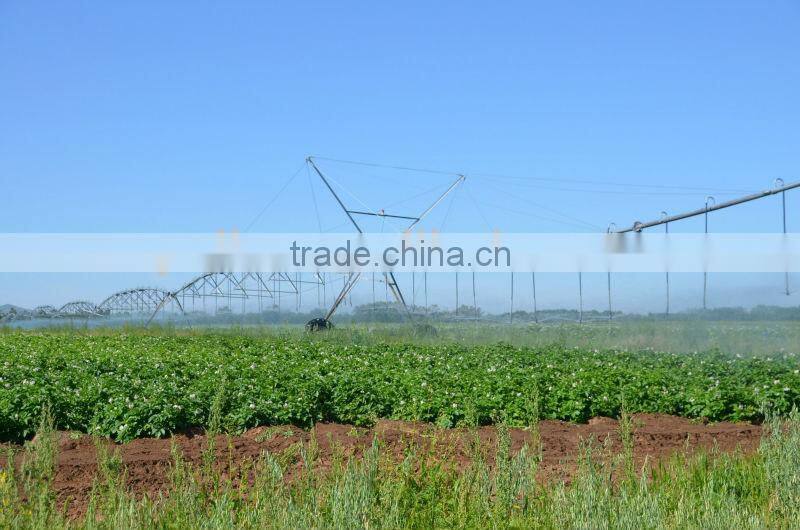

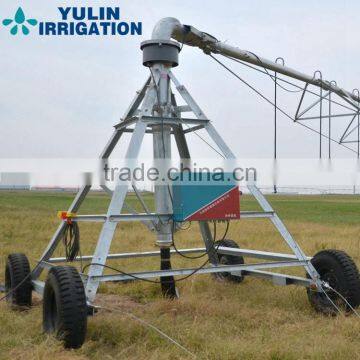

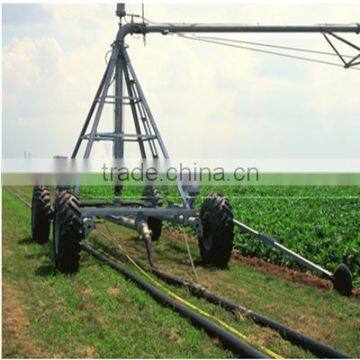

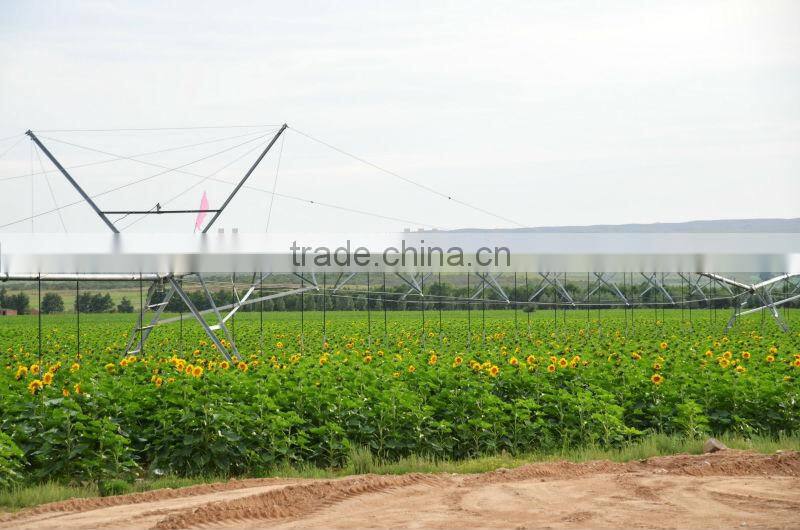

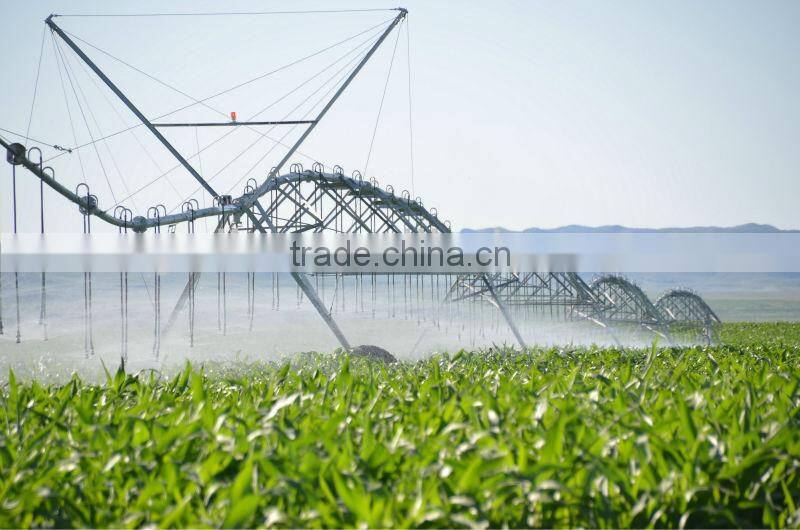

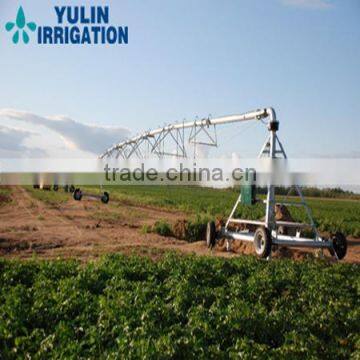

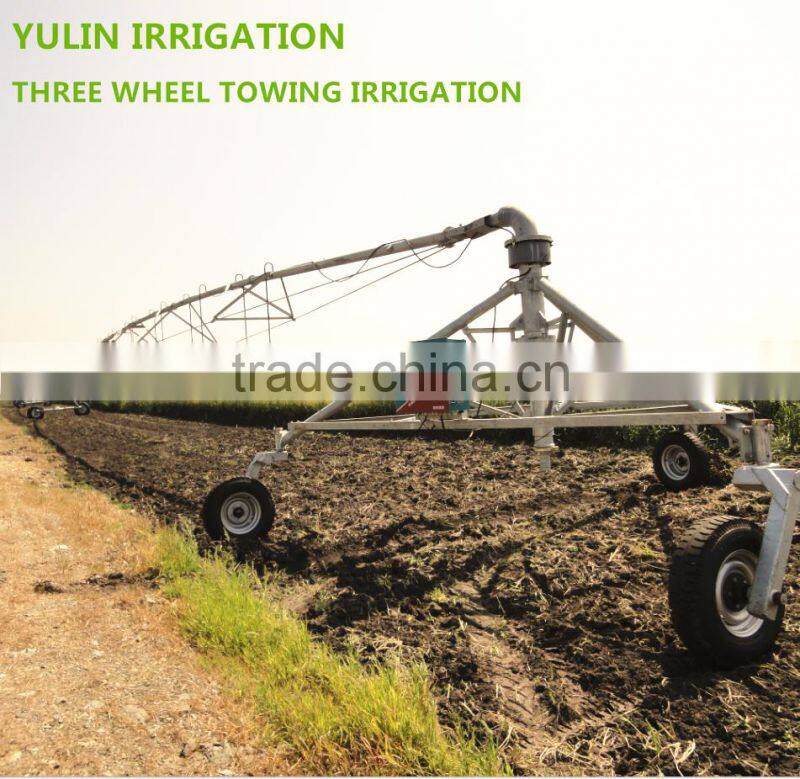

4,Real pictures of our farm towing irrigation system

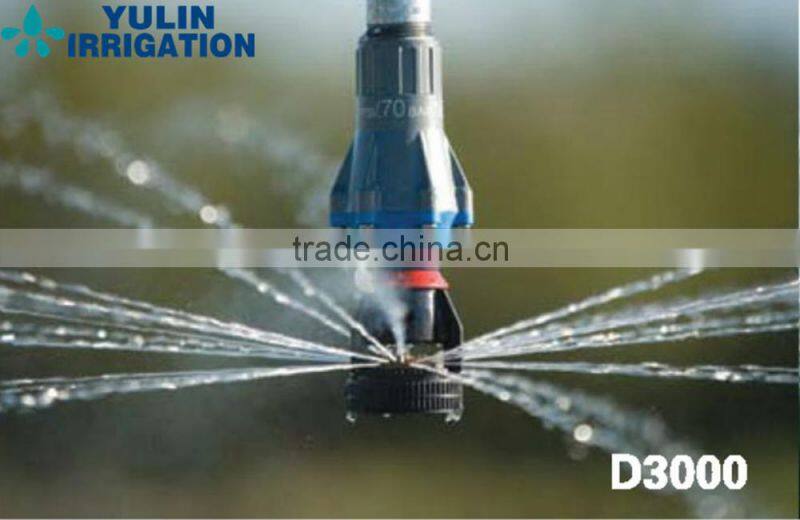

Sprinklers of our farm towing irrigation system
These working sprinklers from American Nelson,which is near to the land to save more water &labour and increase the irrgation ratio each hour.
Other main spare parts
5, Certificate of our farm towing irrigation system
