Single Punch Small Tablet Compression Machine
- Guangzhou
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Newin | Model Number | YP-1.5T | |
| Type | Other, Single Punch, Small Tablet compression machine | Production Capacity | 4000-6000 pcs/h | |
| Max. Pressure(KN) | 15kn | Max. Tablet Thickness(mm) | 6mm | |
| Max. Tablet Diameter(mm) | 12mm | Voltage | 380V | |
| Power(W) | 550 | Weight | 95kg | |
| Dimension(L*W*H) | 570*380*630mm | Certification | ISO | |
| After-sales Service Provided | No overseas service provided |
Product Description

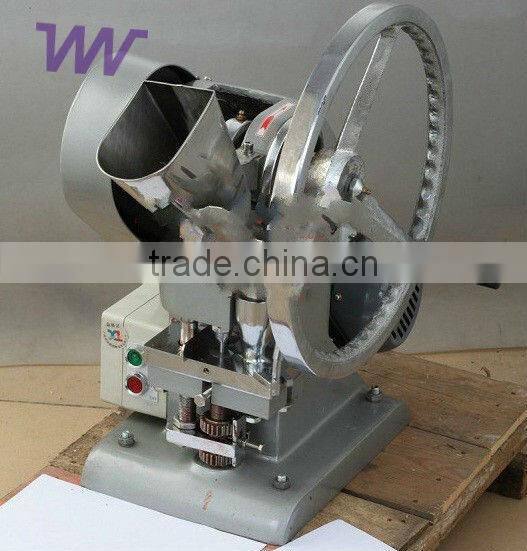

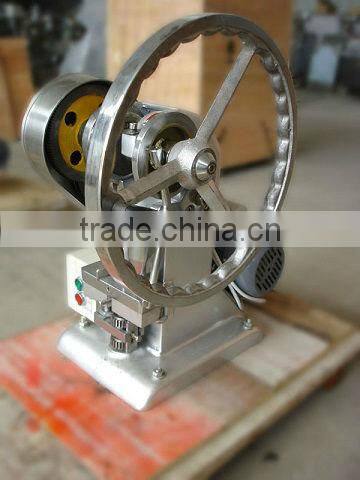

Single punch Small Tablet Compression machine
Introduction:
Single punch tablet machine suitable for suppression of traditional Chinese medicine tablet, western medicine tablets, chewable tablets, calcium tablets, buccal tablets, spirulina tablets, milk tablet, candy tablets, effervescent tablets, tune mothballs (mothballs), aromatic tablets, taste blockdisinfection tablets, catalysts, fertilizer tablets, pesticides piece, button batteries, electronic components, powder metallurgy ceramic particles.
It is a small desktop electric (manually) continuous tableting machine, the machine installed a pair of die filling depth of material and thickness of the tablets can be adjusted. Molds of various shapes according to customer requirements.
Technical parameters of Single punch Small Tablet Compression machine:
Model | YP-1.5T | YP-1.5TL | YP-5 | YP-6 |
Machine material | Iron | Aluminium alloy | Iron | Iron |
Maximum tablet pressure (kn) | 15 | 15 | 50 | 60 |
Maximum tablet diameter (mm) | 12 | 12 | 18 | 24 |
Filling depth (mm) | 11 | 11 | 16 | 18 |
Tablet production (pc / h) | 4000-6000 | 4000-6000 | 4000-6000 | 3000 |
Motor power (w) | 550 | 550 | 750 | 750 |
Motor rotating speed (r /min) | 1400 | 1400 | 1400 | 1400 |
Machine weight (kg) | 95 | 40 | 128 | 165 |
Overall Dimension (mm) (L×C×H) | 570*380*630 | 530*360*590 | 650*440*650 | 750*380*695 |
