quicklime rotary kiln production line with ISO9001:2008 certification

Specifications

Features of Rotary Kiln:
1) High efficiency and big capacity.
2) ISO9001:2008 certification.
3) Environmental protection.



                                Henan Hongji Mine Machinery Co.,Ltd



Rotary Kiln Introduction:



Rotary kiln is the main equipment of calcining the cement clinker. The characteristics of a rotary kiln are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate. It is the equipment calcining the high grad cement in the cement factory. The rotary kiln is widely used in the metallurgy,chemical industry,construction and other industries.







Features of Rotary Kiln:



1) The rotary kiln is an inclined rotary cylinder, the raw material enter the cylinder through the high end of the machine,then move in with the movement of of the rotary kiln. Therefore, the rotary kiln is a conveying equipment.
2) Rotary kiln is a combustion device.

3) Rotary kiln has the function of heat exchange.
4) Rotary kiln has the chemical reaction function.
5) The rotary kiln has the function of degrading and re-using the waste.







Technical Parameters of Rotary Kiln:



Model	Technical parameters			Motor power(kw)	Weight(t)	Remark
	Rotation speed (r/min)	Obliquity(%)	Output(t/h)
1.6/1.9x36	0.53-1.59	4	2.5-4	30	53	---
2.1/1.8x36	0.5-1.51	4	2.9-5	30	75	---
1.2x25	0.5-1.6	3	0.3-1.2	15	34	---
1.6x32	0.158-0.258	3	0.6-2	22	46.82	---
1.8x45	0.66-1.98	4	1-4.5	30	80	---
2.2x50	0.125-1.25	3.5	2-8	45	130.71	---
2.5x50	0.516-1.549	3.5	5.5-13	55	167.5	---
3x48	0.3309-3.309	3.5	9-20	90	237	Decompose
3.2x50	0.398-3.975	3.5	13-32	190	263	Decompose
3.3x52	0.391-3.91	3.5	14-38	190	280.8	Decompose
4x60	0.396-3.96	3.5	32-80	315	487.5	Decompose
4.2x60	0.4165-4.165	3.5	45-100	420	576.1	Decompose
4.3x62	0.398-3.98	3.5	51-120	420	598.5	Decompose
4.8x74	0.35-4	4	90-200

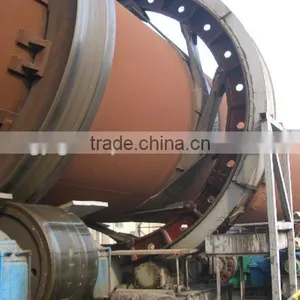

Product Show:











Henan Hongji Mine Machinery Co.,Ltd is a professional rotary kiln manufacturer, it also offers the whole set of cement production line equipments,  and accepts production line turnkey project.If you have the need of a cement kiln or other rotary kiln, please don't hesitate to contact us.
