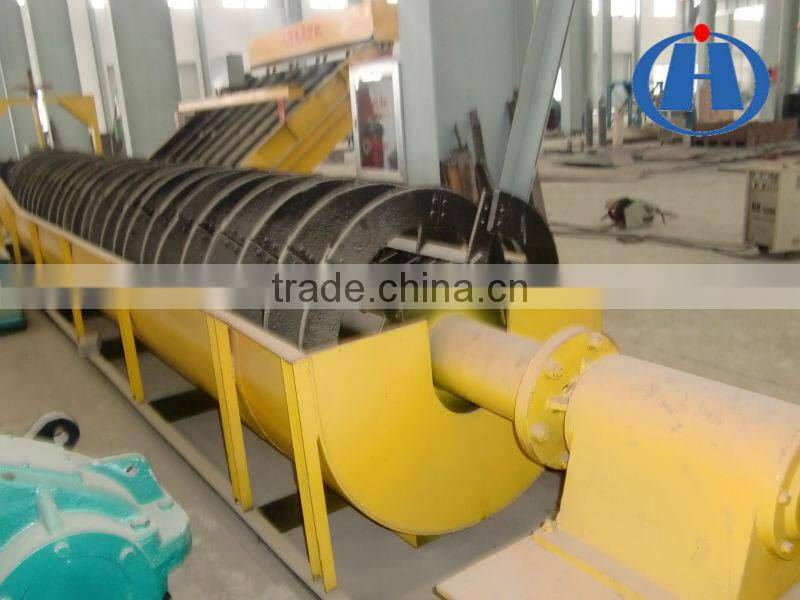

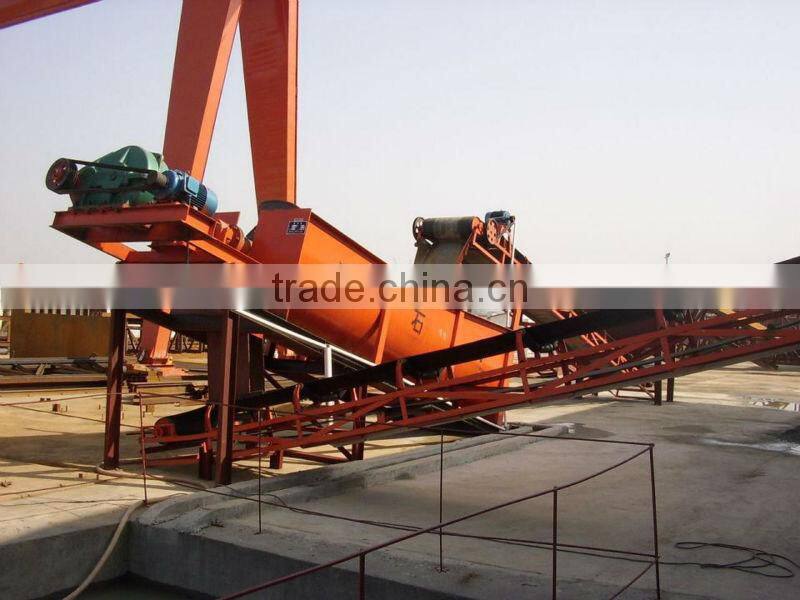

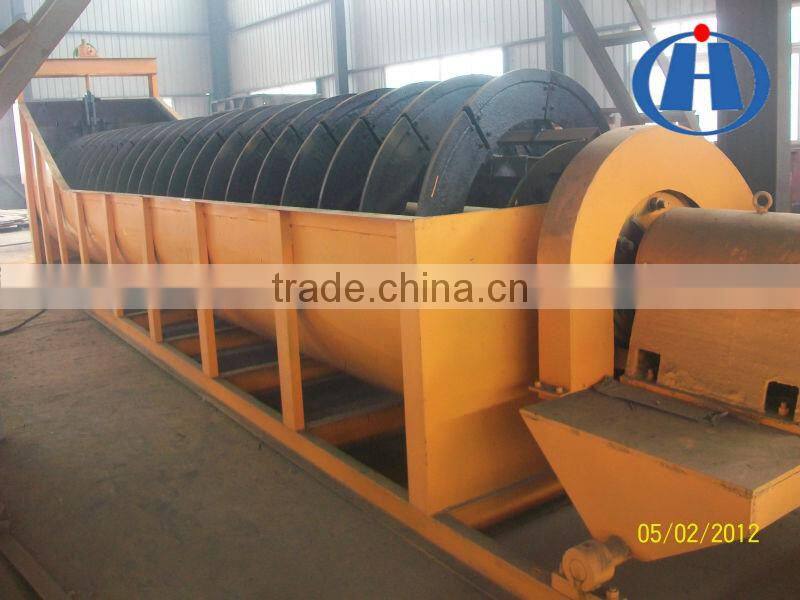

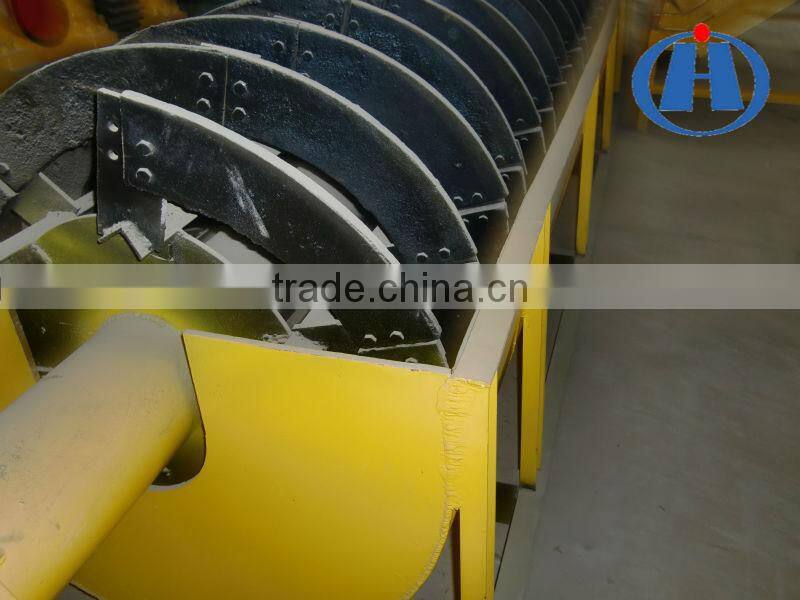

Help Center2013 New FG Screw Ore Washer for Ore Washing
Related Products
-
Quality Warranty Mining Mechanical Spiral Ore Washer, Iron Ore/Ironstone WasherUS$ 999 - 999,999MOQ: 1 Set -
Quality Warranty Mining Mechanical Spiral Ore Washer Machine, Iron Ore/Ironstone WasherUS$ 999 - 999,999MOQ: 1 Set
-
Single Screw Sand Washing MachineUS$ 999 - 999,999MOQ: 1 Set
-
High Quality Sand Washer XS2600 From Manufacture in ChinaUS$ 999 - 999,999MOQ: 1 Set
-
XSD Ore Washer Sand Washing Machine With ISO CertificateUS$ 200 - 100,000MOQ: 1 Set
Specifications
screw ore washer for ore washing1. Easy to operate
2. Use widely
3. Reasonable price
4. Best after sale service
High Quality China Screw Ore Washer
1. Introduction of Screw ore Washer:
Screw Washer is mainly applied to washing minerals of large slit content, such as iron, manganese, limestone, tin ore, and more
It carries out mixing, washing, separating, and desliming
With a washing pressure less than 147 to 196kpa, it is also suitable for washing building materials in construction and power station applications
The gear transmission parts of our screw washing machine are separated from stones, water and sands, which greatly reduces the error rate of our screw washing machine.
2. Working Principle of screw ore Washer:
Screw washing machine makes use of buoyancy of water to separate sand from dust and impurity
It achieves purifying, lifting and conveying of the minerals through the stirring of screw slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.
3. Features of screw ore Washer:
Screw washing machine has features like long screw structure, good sealing system, simple structure, strong processing capability, convenient maintenance, good washing efficiency.
4. Technical Speicification of screw ore Washer:
Model |
FG-60 |
FG-75 |
FG-100 |
FG-120 |
FG-150 |
FG-200 |
Screw diameter(mm) |
600 |
750 |
1000 |
1200 |
1500 |
2000 |
Capacity(t/h) |
15-25 |
40-60 |
70-90 |
90-110 |
120-150 |
180-230 |
Motor Power(kw) |
3 |
5.5 |
7.5 |
11 |
18.5 |
30 |
Weight (kg) |
2550 |
3820 |
4870 |
6900 |
8800 |
11900 |
Note: the above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
