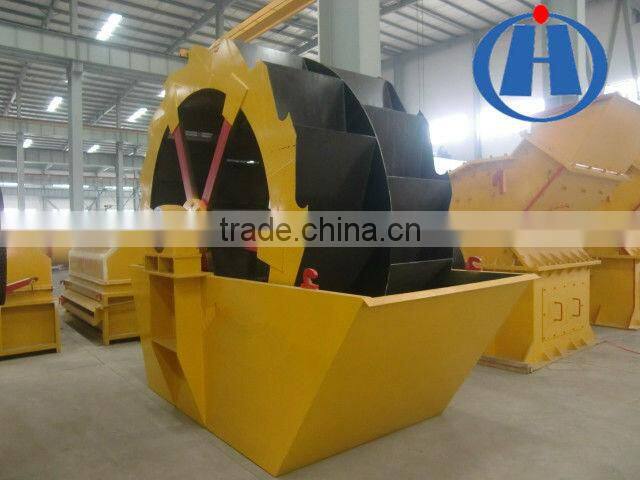

GX wheel sand washing machine Price
1. Application of reasonable price sand washing machine in high quality:
The sand washer is kind of water washing style washing and selecting equipment matched with the sand making machine and can clean the dust and stone powder which mixes with the final sand, so sand washing machine can improve the quality of the sand. The novel seal structure and reliable transmission, ensures the cleaning effect of dehydration. Sand washer is an efficient equipment coordinate with sand making machine.
Sand washer is widely used in construction sites, gravel plants, concrete hydropower dam site, and other industries, which has a high cleaning, reasonable structure, large capacity, low power consumption, less loss of sand during the washing process, particularly thetransmission parts of sand washing machine are separated with water and sand, so the failure rate is much lower than the common sand washing machine, sand washing is the best choice for upgrading the industry.
sand washer is a kind of water washing style equipment to be matched with the sand making machine and can reduce the dust and stone powder which mixes with the final sand, so sand making machine can improve the quality of the sand. sand washer is used in building plant, quarry, concrete plant, dam building, casting-70 sand, glass factorys quartz sand and refilling pressure sand.
GX wheel sand washing machine Price

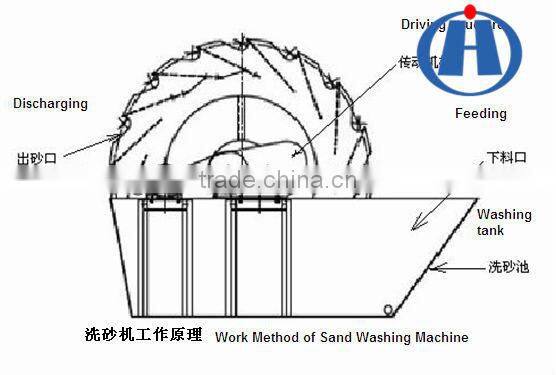

2. Working Principle of reasonable price sand washing machine in high quality:
when the sand washer run, the motor drives the impeller slowly turning through the belt, reducer, after the gear reduce the speed, sand and gravel are washed into the tank to the trough and driven by the the impeller, with tumbling and grinding each other to remove sand and gravel covered the surface of the impurities, while damages to the water vapor coated layer of sand to facilitate dehydration; at the same time, adding water to form a strong water flow, timely brings small proportion of impurities and foreign matter away and discharged from washing exports of the overflow tank, then finish the cleaning action. The cleaned sand and gravel are brought away from the blade, and finally poured into the out trough by the rotation of the impeller, and then finished the cleaning process.
3. Characteristics of reasonable price sand washing machine in high quality:
1) Reasonable structure
2) large capacity
3) low consumption
4) little loss of the sand during the washing process
5) low failure rate
4. Using of Professional reasonable price sand washing machine in high quality
high quality wheel mining sand washer is widely used to wash, classify, rid impurities, and choose the course from the fine in the industries of highway, hydropower, and construction and so on. It is better to wash construction and road sandstone
| Model | GX2000 | GX2600 | GX2800 | GX3200 | GX3600 |
| Capacity(t/h) | 8-40 | 20-100 | 50-130 | 240-300 | 280-500 |
| Return sand capacity(t/h) | 3-8 | 5-15 | 8-70 | 80-130 | 100-200 |
| Power(kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight(kg) | 1900 | 3500 | 5100 | 8800 | 14200 |
Model |
Bucket Wheel Diameter (mm) |
Capacity
(t/h) |
Sand Returned (t/h) |
Motor Power
(kw) |
Weight
(kg) |
XS2600(I) |
2600 |
20-80 |
5-20 |
5.5 |
2400 |
XS2600(II) |
2600 |
30-90 |
8-30 |
7.5 |
2900 |
XS2800(I) |
2800 |
60-150 |
20-50 |
7.5 |
5100 |
XS2800(II) |
2800 |
160-250 |
50-120 |
11 |
8600 |
XS3200 |
3200 |
240-300 |
100-150 |
11 |
11400 |
XS3600 |
3600 |
280-400 |
140-200 |
15 |
16700 |
GX wheel sand washing machine Price
Welcome to visit our factory!
