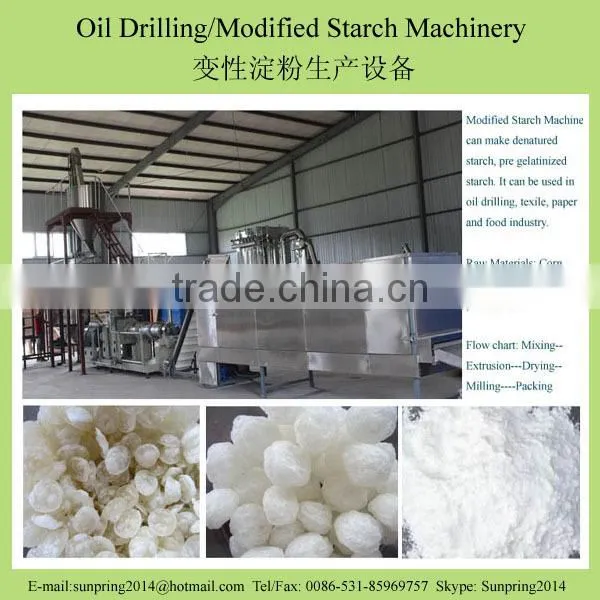

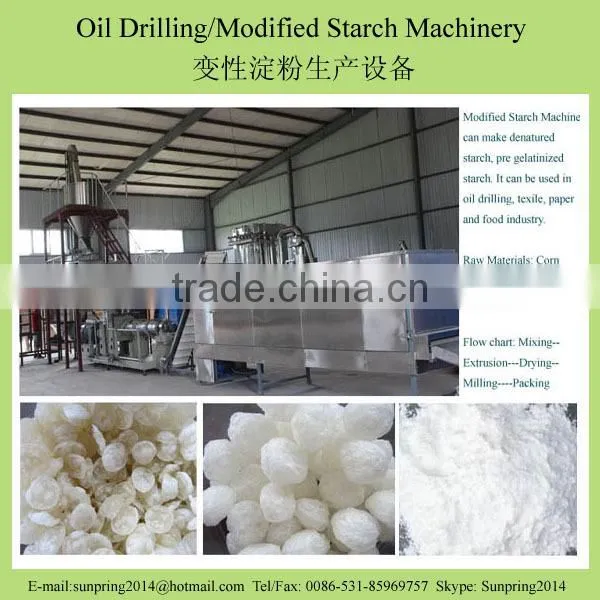

Modified Starch Making Machine
1. Description:
Modified starch/ pre-gelatinized starch extrusion machine can product Denatured Starch, Pre-gelatinized starch is an effective and economical fluid loss agent in water based drilling fluids, which is a starch derivative. It is not bacterial degradation when at 120°C, environmentally acceptable and non-toxic.
Modified Starch can produce a thin, slick, tough filter cake and promotes faster penetration rates with reducer friction. It can be used in all kinds of drilling fluid system. Pre-gelatinized starch is also sometimes "pregelatinized" to make them easier to dissolve during product manufacture. Modified starch is widely used in oil drilling, textile, paper and food industries.
a. Raw Materials: corn starch, cassava starch, potato starch
b. Products: oil drilling starch, Pre-gelatinized starch
c. Capacity: 200-400kg/h, 400-600kg/h
d. Flow chart: Mixing---Extrusion---Drying---Grinding---Blending—Packing
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters:
Model |
Installed power |
Real power |
Output |
Dimension |
SP85 |
145kw |
100kw |
200-400kg/h |
20000x2000x3500mm |
SP130 |
145kw |
100kw |
400-600kg/h |
30000x3500x4500mm |

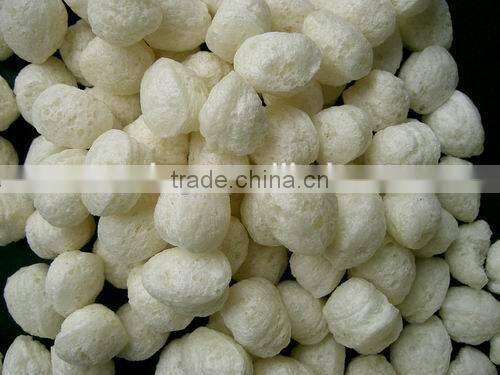

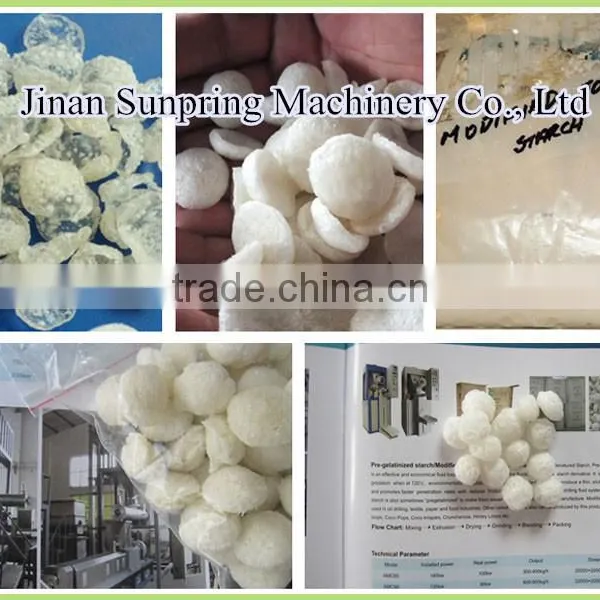

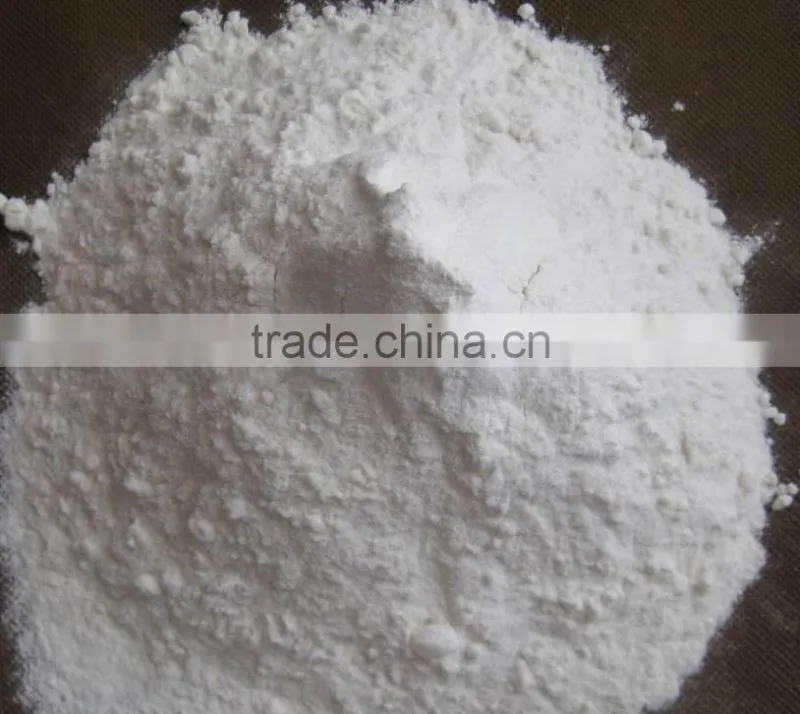

2. Modified Starch Products

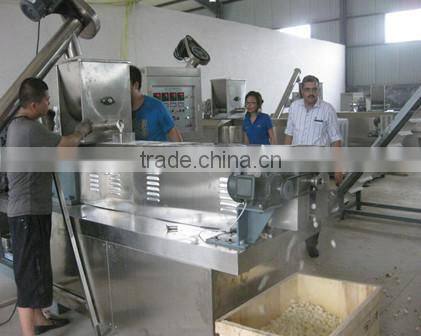

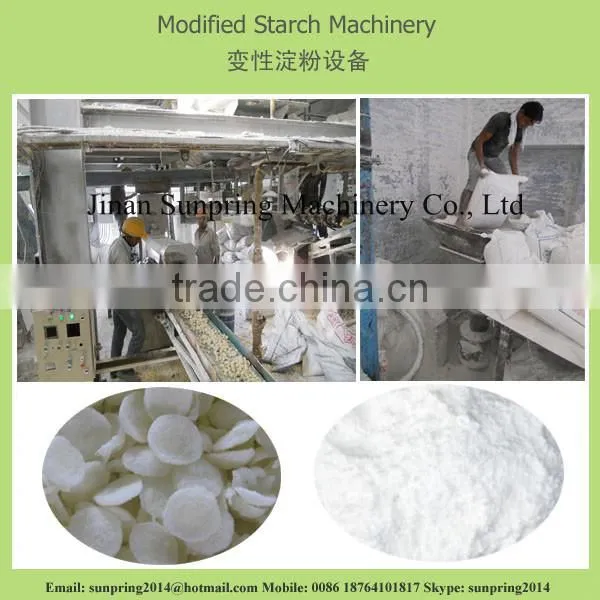

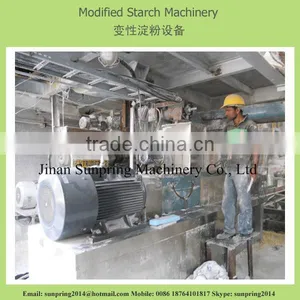

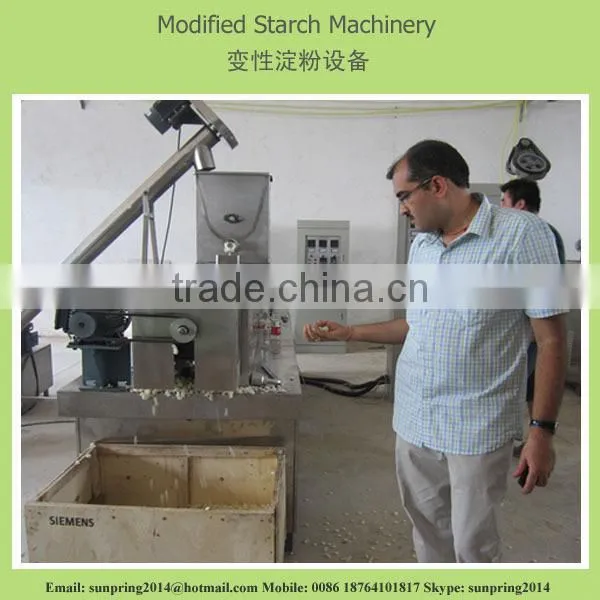

3. Modified Starch Machines

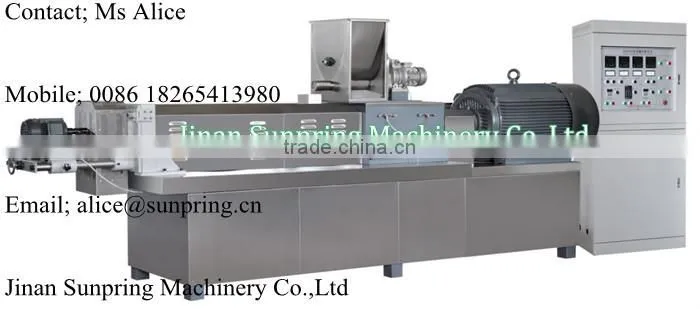

SP-85 Twin Screw Extruder with 200-400kg/h

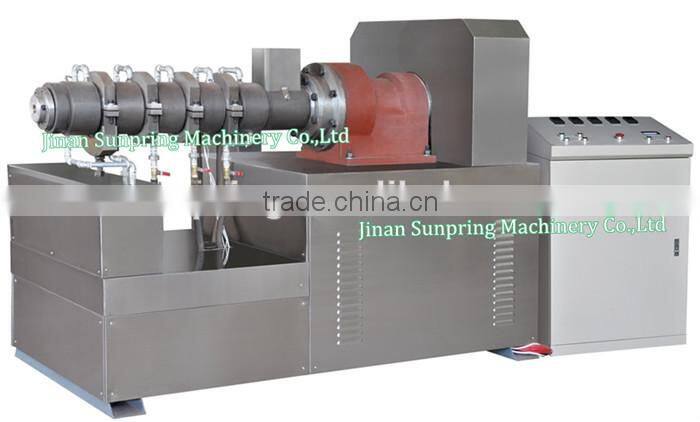

SP-130 Single Screw Extruder with 400-600kg/h
A.Series of twin screw inflating extruder are consisting of feeding system, gear system and controlling system.
B. Consisting of feeding system, extruding system and cutting system, adopts frequency speed controlling with high automation and stable per formation.
C. Automatic lubricating, cooling, to guarantee the extruder running safely.
D. According to different material, to choose the relative single or double screw feeding system, the material should be uniformity and stable.
E. The screw is made by special technique, is able to bear grinding, steady and reliable, longer using life.

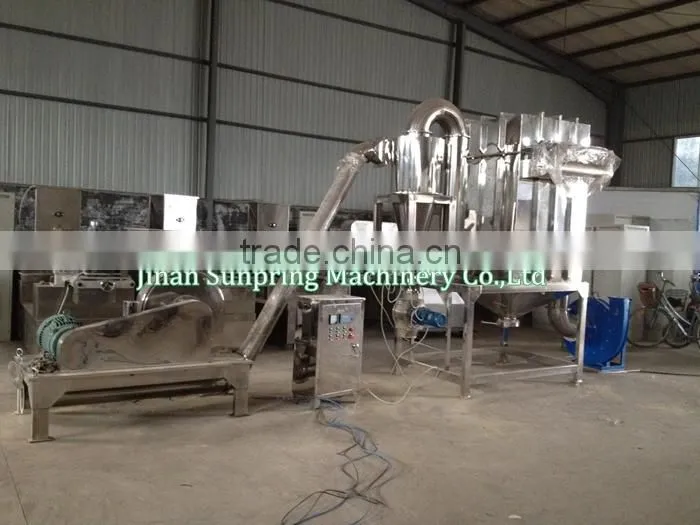

4. Pulverizer/ Milling System for Modified Starch
1. Stretch film packing
2. Fumigation-free wooden case packing
a. We can keep product design in the same level with internationally advanced technology consistently.
b. We have high diathesis staff and excellent processing equipment, and quality control runs through the whole production process from parts stock to the beginning of production.
c. We can guarantee customers superior quality machines up to design requirements and
perfect working state.
d. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
e. We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
f. We provide 1 year complete Guarantee and life-time maintenance service.
Jinan Sunping Machinery & Equipment Co., Ltd. is a professional food machinery manufactory
in China, business scope covering mainly machnery and equipment for corn flakes/breakfast cereal/baby food machinery,corn puffs/core filling snacks machinery,nik naks/cheetos/kurkure machinery,frying pellets machinery,artficial rice machinery,soy nuggets/meat analogue machinery,pet food/pet treats/fish food machinery as well as packing machinery.
We are able to supply markets for different countries clients, so more and more customers choose to trust us and the annual turnover increasing year by year.
If you are a newer for this industry, hope we can assist you to construct your factory in local and to understand the machines.
If you are a experienced in food industry, we hope to establish mutually beneficial trading relations between us and expand your business.
1). Operator Needed: 3-5
2). Guarantee time: one year
3). We provide Turnkey Project
a. Provide factory layout according to your factory size in advance.
b. Provide the recipe when your esteemed company cooperate with us.
c. Before place the order, we invite you to visit us and make demonstration for you in workshop
d. Before delivery the machines, we invite you to inspect all the machines.
e. Installation and commissioning in your factory for 15days
4). Payment terms: 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before delivering.
5). Delivery time: 30-40 days after receipt the deposit, we have extruder, dryer and flaking machine in workshop.
