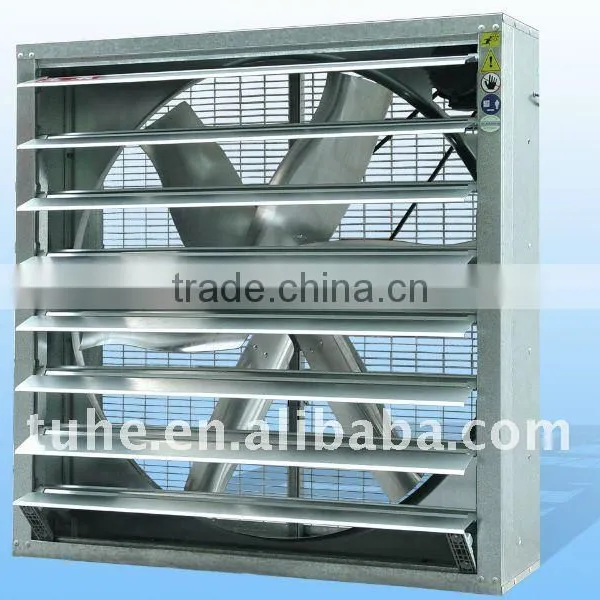

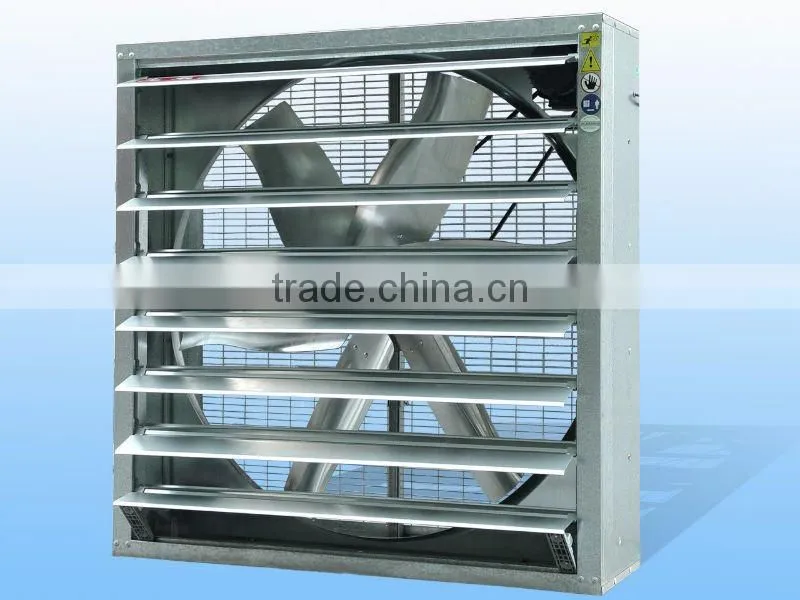

TUHE Exhaust fan

Specifications

TUHE Exhaust fan
1.low power;
2.low noise;
3.larger wind output.
4.little energy-lost

TUHE Exhaust fan

A. Size: 1380mm/1220mm/1060mm/900mm( 54"/48"/42"/35")
B. Power: 1.1KW/0.75KW/0.55KW/0.37KW (1.5HP/1.0HP/0.75HP/0.5HP)

C. Galvanized steel frame; Aluminum vanes; Auto shutter

D. Low power; low noise; larger wind output.



PRODUCT CHARACTERISTICS:

 1.  The optimal design and construction made by CAD/CAM, with high full pressure, big air volume, low noise, little energy-lost, stable running and being well for ages; The louver with pleasing shape can open and closed automatically, having dust-proof and water proof; with its double-function: cool breeze blowing and air draft, it is the best cooling and ventilating product for factories etc.

  2. 6 blades design is for increasing airflow owing to the blade is make of intensified resins vane and aluminum.

  3.The motor enjoys high efficiency and energy-saving which makes it possible to work easily under the high pressure surrounding



Fan Series With Aluminum Alloy Vanes:

Item No.	Dimension	Diameter	Turns	Air Volume	Nosie	Power	Rating Voltage	Weight
TUHE-1	1380X1380X400	1270	427	44500	65	1.10	380	85
TUHE-2	1220X1220X400	1110	427	37000	63	0.75	380	65
TUHE-3	1060X1060X400	950	427	32000	60	0.55	380	55
TUHE-4	900X900X400	790	495	29500	56	0.37	380	43.5



APPLICATIONS:

1.Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

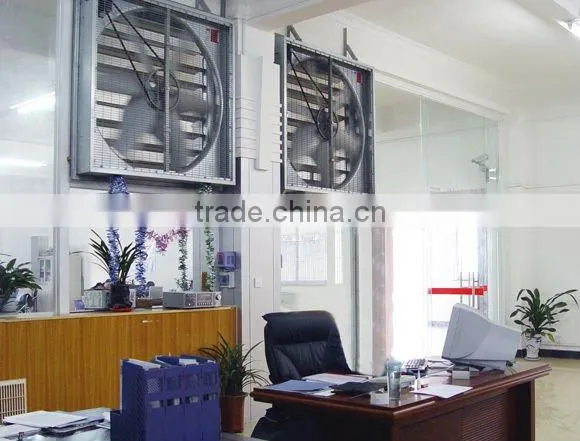

2.Civil fields: net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.
3.Agricultural fields: large farms, greenhouse and livestock farms, etc.



Greenhouse

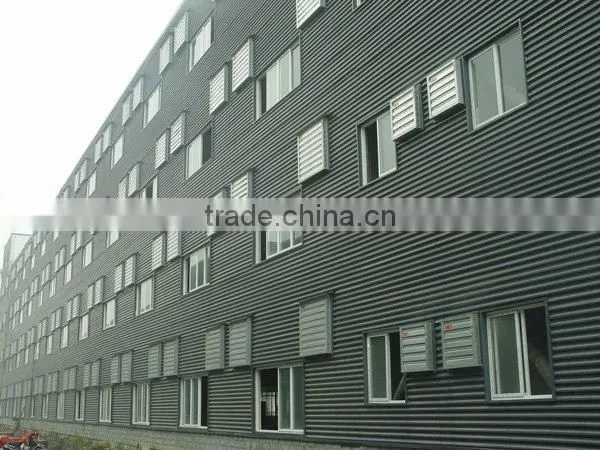

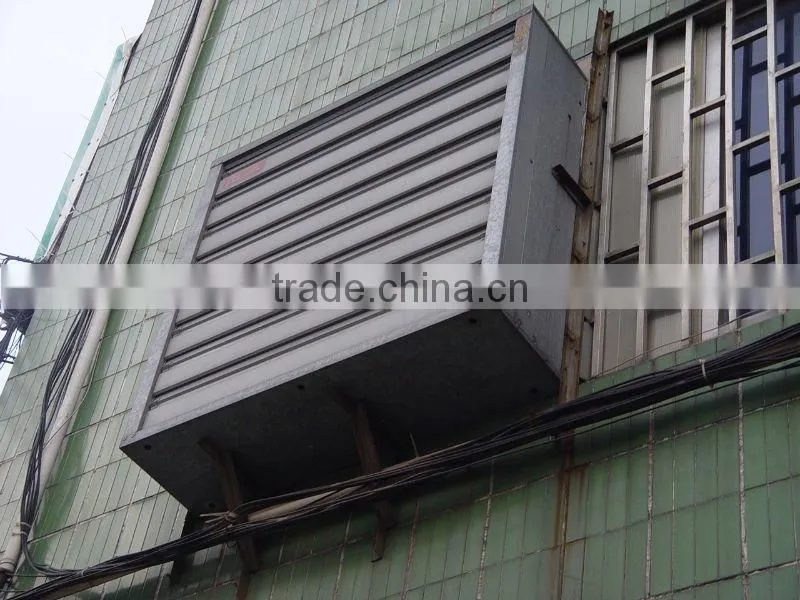

Workshop

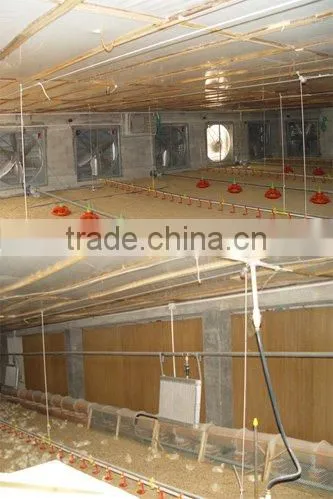

Livestock Farm
