Singflo 12v dc 10A Macerator Sewage Toilet Pump

Singflo 12v dc 10A Macerator Sewage Toilet Pump photo-1
US$ 20 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Singflo
Model Number:
FL-65A
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB China port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Singflo
Model Number FL-65A
Theory Other, submersible sewage pump
Structure Other, macerator pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electricity
Pressure Other
Application Other, Sewage, waste water sewage pump

Specifications

macerator toilet
1.Rule12V DC Macerator Pump
2.ISO9001:2000
3.Superior for waste water

Singflo 12v dc 10A macerator sewage toilet pump



DC pump/Macerator pump/Marine Pump



Description:

This Macerator pump is designed specifically for sanitation waste and fish box
evacuations. This high-powered pump incorporates our high quality motor with a new
seamless shell and splash proof design. The Macerator features a premium impeller
design and includes o-ring sealed end bells to withstand the harsh marine environment.
The pump runs with superior performance wihle deliverying up to 13GPM (49.20LPM).

Power available in both 12VDC and 24VDC.



Features:

1, High quolity 12 and 24 Volt water pumps for sea water, fresh water, salt water, bilge water and much more.

2, Pumps are the cost effective, often half the price of other brands of the same quality.

3, A must for boats, caravans, mobiles, cars and any other application where 12 volt or 24volt power exists.

4, No pressure,High volume water

5, We produce Wash Down Agriculture Pumps, Bilge and Shower Pumps, Spraying and general purpose Pumps, Industrial Water Pumps

6, Certificate: Rohs/CE/ISO9001:2000

7, Stainless steel bolts, water resistant pressure swith, snap-in connection, special valve and diagphragm for easy priming

8, Moisture resistant O ring seal motor, double ball bearing motor and Rubber mounted for smooth, quiet operation, sealed drive  bearings, corrosion resistant

9, Stable performance, self priming, automatic switch, low noise, corrosion resistant



Specifications:

1, Pump Head 2 chambers
2, Open Flow  45L/Min(consult factory for other flow rate)
3, Max Pressure no pressure(consult factory for other pressure)
4, Motor Configuration lead wires 2-pin connector(consult with factory)

5, 2-pin connector with on/off switch

6, Inlet/ outlet size 2''(50mm)/1''(25mm)

7, Pump grinds waste into small particals for easy disposal

8, Technical date:

Pump Type  Demand
Motor Voltage 12 VDC/24V



Technical deta:

Model

Volts

Flow (Litres/min)

Pressure Off

Amp Draw

FL-65A

  12

           49.2

       NO

     10

FL-65B

  24

           49.2

       NO

      5



Temperature:

1. working temerature:0-60 C
 Demension & Weight:

1. Dimension/pc:31*13*12.2cm

2.Net weight/pc:2.35kg

3. Gross weight/pc:2.55kg

4. Carton dimension (50pcs/30pcs):51.5*42*32cm

Accessories included:

1. Quad snap-in port * 1/2'' NPT thread, straight

2. Quad snap-in port * 1/2'' NPT thread elbow

3. Quad snap-in port * 12.5mm hose barb, elbow

4. Quad snap-in port * 12.5mm hose barb, straight

5. Spanner

6. Brass quick connector

7. 3/8'' NPT thread *1/4 quick connector

8. 1/2'' inlet suction strainer

9. 12.5mm inlet suction strainer

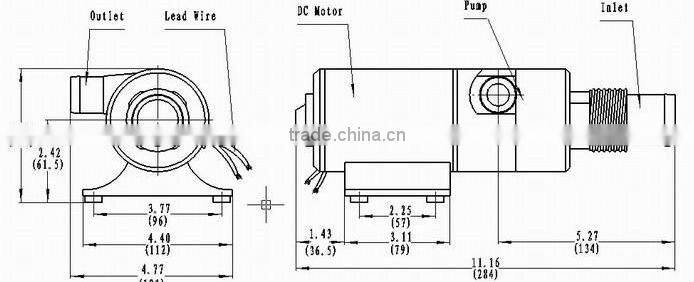

Drawing:

Singflo 12v dc 10A macerator sewage toilet pump

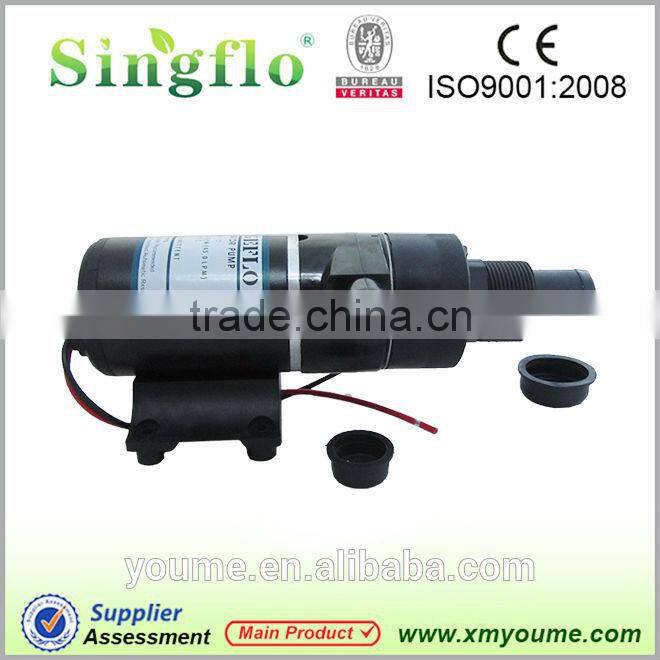

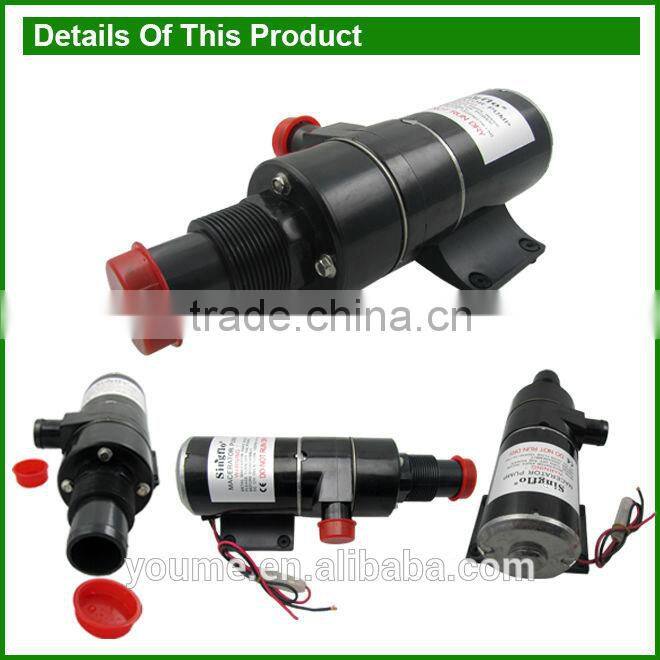

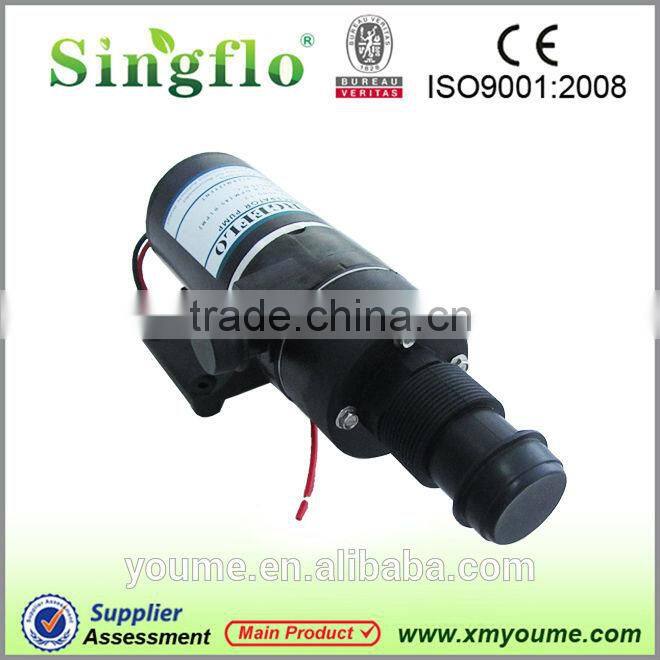

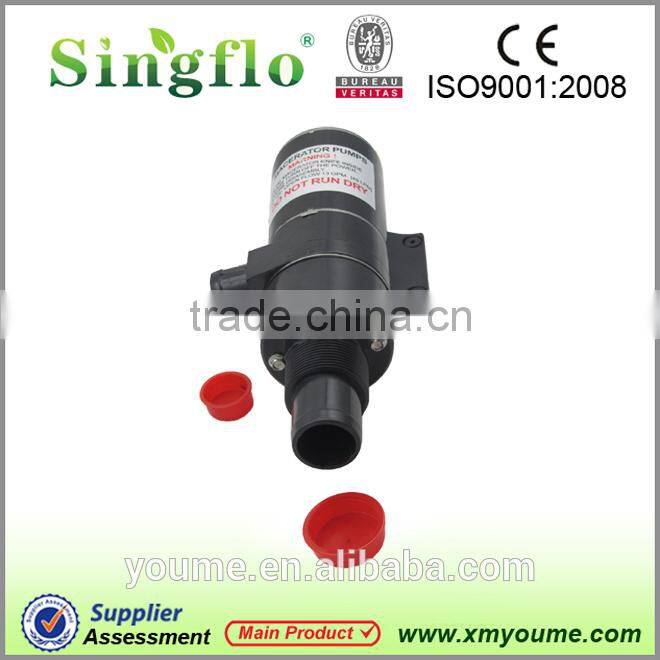

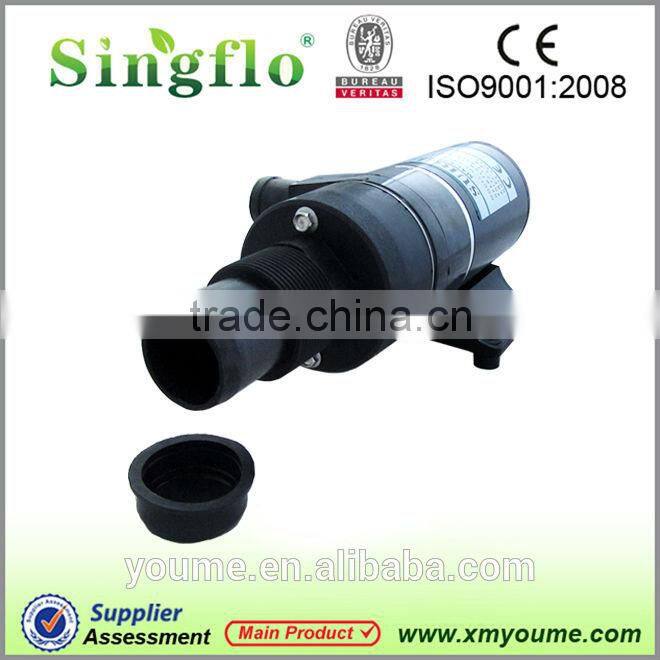

Pitures:

Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump

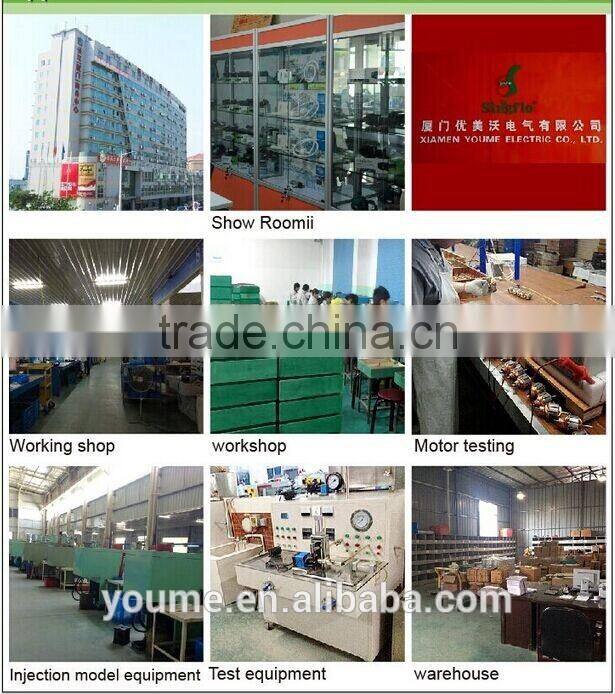

Work shop:

Singflo 12v dc 10A macerator sewage toilet pump



Application:

Singflo 12v dc 10A macerator sewage toilet pump



Singflo 12v dc 10A macerator sewage toilet pump









If you're interested in our macerator sewage pump, pls don't hesitate to contact us!



Trade manager: cn1501674438



Skype: singflo.pump5



Sample for testing is welcomed.
