Help CenterHigh Flow Water Pump 24VDC
Related Products
Specifications
High Flow Water Pump 24VDC1)Continuous working with low temperature
2)Max flow:30~50LPM
3)Pressure max: 40PSI

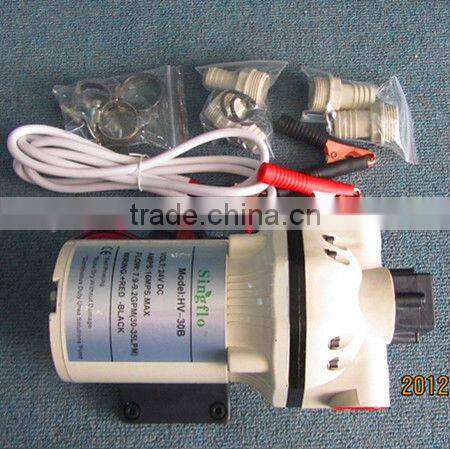

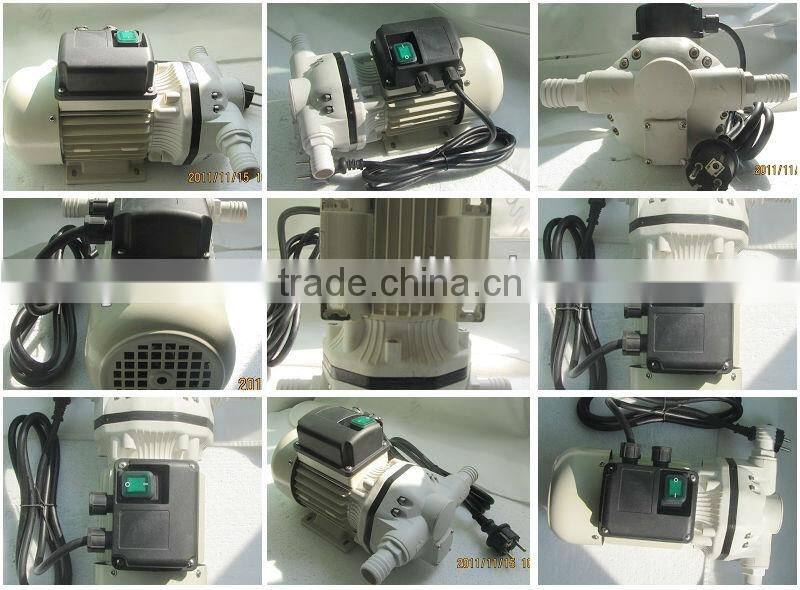

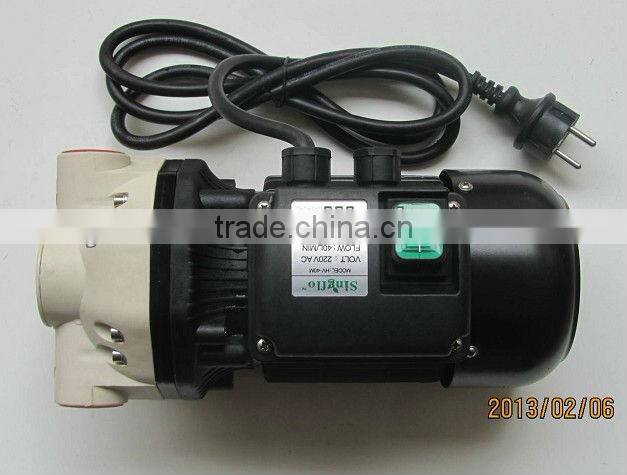

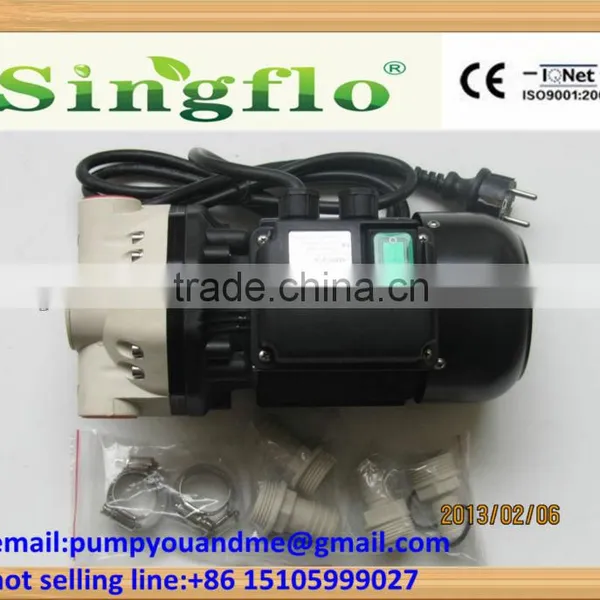

High Flow Water Pump 24VDC
HIGH FLOW WATER PUMP SPECIFICATION
PUMP Design: 5 chamber diaphragm
Motor Design: Permanent magnet DC/AC
Voltages: 12, 24VDC,115/230VAC
Pump Body: Aluminium
Diaphragm: Viton
Check valves: Viton
Max. Flow Rate: 30~50LPM
Max. Pressure: 40PSI (2.75BAR)
Liquid Temp: 40°F (5°C)MIN; 140°F (60°C)MAX
Duty cycle: Continuous work with self-ventilated
Gross Weight: 5.5KG for DC pump 6.5KG for AC pump
Certifications: CE
Port Size inlet/ outlet: 3/4” 1''
AC MODEL:
DC Model:
High flow water pump technical data:
Model | Volts | Open Flow | Pressure | Amps | Speed | N.W / G.W |
DC /AC | LPM | Shut Off | (A) | (RPM) | (KGS) | |
HV-30A | 12 VDC | 30-35 | 40 psi (2.8 bar) | 15 | 2800 | 5 /5.5 |
HV-30B | 24 VDC | 30-35 | 40 psi (2.8 bar) | 7.5 | 2800 | 5/5.5 |
HV-30S | 115 VAC | 30 | 40 psi (2.8bar) | 4 | 3400 | 6 / 6.5 |
HV-30M | 230 VAC | 30 | 40 psi (2.8bar) | 1.5 | 2900 | 6 / 6.5 |
HV-40S | 115 VAC | 40 | 40 psi (2.8bar) | 4.2 | 3400 | 6 / 6.5 |
HV-40M | 230 VAC | 40 | 40 psi (2.8bar) | 1.8 | 2900 | 6 / 6.5 |
HV-50S | 115 VAC | 50 | 40 psi (2.8bar) | 4.5 | 3400 | 6 / 6.5 |
HV-50M | 230 VAC | 50 | 40 psi(2.8bar) | 2 | 2900 | 6 / 6.5 |
- Permanent magnet and continuous duty
- Built-in pressure switch automatically starts and stops
- Self-priming 3m so pump can be located above water tank
- Runs dry for extended periods of time without damage
- Hold excellent motor keep stable temperature of pump body
