Help CenterDEF Transfer Pump AC/DC Model
Related Products
Specifications
high lift water pump1)Continuous working with low temperature
2)Max flow:30~50LPM
3)Pressure max: 40PSI
4)Check:Vito

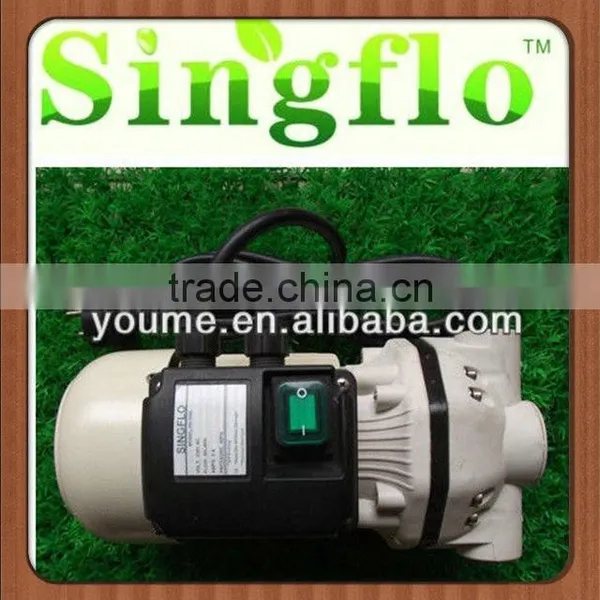

DEF transfer pump
SPECIFICATION:
PUMP Design: 5 chamber diaphragm
Motor Design: Permanent magnet DC
Voltages: 12, 24VDC/115V,230VAC
Pump Body: Aluminium
Diaphragm: Viton
Check valves: Viton
Max. Flow Rate: 30lpm~50lpm
Max. Pressure: 40PSI (2.75BAR)
Liquid Temp: 40°F (5°C)MIN;
140°F (60°C)MAX
Duty cycle: Continuous work with self-ventilated
Gross Weight: 5.5kg per DC pump 6.5kg per AC pump
Certifications: CE
Port Size inlet/ outlet: 3/4” 1''
AC Model:
DC Model:
DC AC Urea/Adblue Pump Techonical data:
DC MOUNTING
The HV Series pumps are self-priming and may be located above or below the water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on the motor in the event of a leak. Place pump on a solid surface and secure with four mounting screws; be careful not to compress the rubber grommets, which act as vibration dampers.
AC Adblue pump for IBC system Assemble:
