Singflo 12v dc 35L/min 15A 40psi more than 3 meters chemical pumps
- 10000 Piece / Pieces per Month
- FOB China Port
- T/T Credit Card PayPal
Product Details
Place of Origin: | Fujian, China | Brand Name: | Singflo | Model Number: | HV-30A |
Theory: | Reciprocating Pump | Structure: | Diaphragm Pump | Usage: | Other, Adblue,area |
Power: | Other, Electric,ON/OFF SWITCH | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Other, chemical pumps for IBC system |
Packaging Details
with strong seaworthy carton.
Product Description

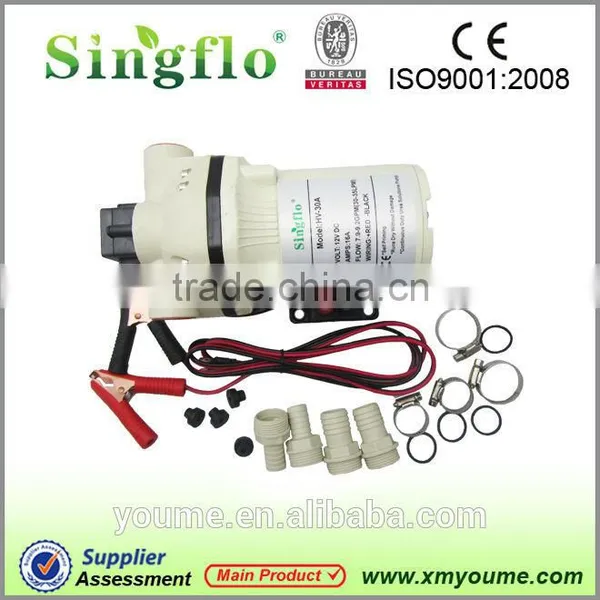

Singflo 12v dc 35L/min 15A 40psi more than 3 meters chemical pumps
Specification:
PUMP Design: 5 chamber diaphragm
Motor Design: Permanent magnet DC/AC
Voltages: 12, 24VDC,115/230VAC
Pump Body: Aluminium
Diaphragm: Viton
Check valves: Viton
Max. Flow Rate: 30~50LPM
Max. Pressure: 40PSI (2.75BAR)
Liquid Temp: 40°F (5°C)MIN;
140°F (60°C)MAX
Duty cycle: Continuous work with self-ventilated
Weight: 5.5KG for DC pump 6.5KG for AC pump
Certifications: CE
Port Size inlet/ outlet: 3/4” 1''
Chemical pumps technical data:
Model | Volts | Open Flow | Pressure | Amps | Speed | N.W / G.W |
DC /AC | LPM | Shut Off | (A) | (RPM) | (KGS) | |
HV-30A | 12 VDC | 30-35 | 40 psi (2.8 bar) | 15 | 2800 | 5 /5.5 |
HV-30B | 24 VDC | 30-35 | 40 psi (2.8 bar) | 7.5 | 2800 | 5/5.5 |
HV-30S | 115 VAC | 30 | 40 psi (2.8bar) | 4 | 3400 | 6 / 6.5 |
HV-30M | 230 VAC | 30 | 40 psi (2.8bar) | 1.5 | 2900 | 6 / 6.5 |
HV-40S | 115 VAC | 40 | 40 psi (2.8bar) | 4.2 | 3400 | 6 / 6.5 |
HV-40M | 230 VAC | 40 | 40 psi (2.8bar) | 1.8 | 2900 | 6 / 6.5 |
HV-50S | 115 VAC | 50 | 40 psi (2.8bar) | 4.5 | 3400 | 6 / 6.5 |
HV-50M | 230 VAC | 50 | 40 psi(2.8bar) | 2 | 2900 | 6 / 6.5 |
- Permanent magnet and continuous duty
- Built-in pressure switch automatically starts and stops
- Pump when faucets is opened
- Self-priming 3m so pump can be located above water tank
- Runs dry for extended periods of time without damage
- Hold excellent motor keep stable temperature of pump body
Chemical pumps DC MOUNTING:
The HV Series pumps are self-priming and may be located above or below the water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on the motor in the event of a leak. Place pump on a solid surface and secure with four mounting screws; be careful not to compress the rubber grommets, which act as vibration dampers.
Chemical pumps AC assembled:

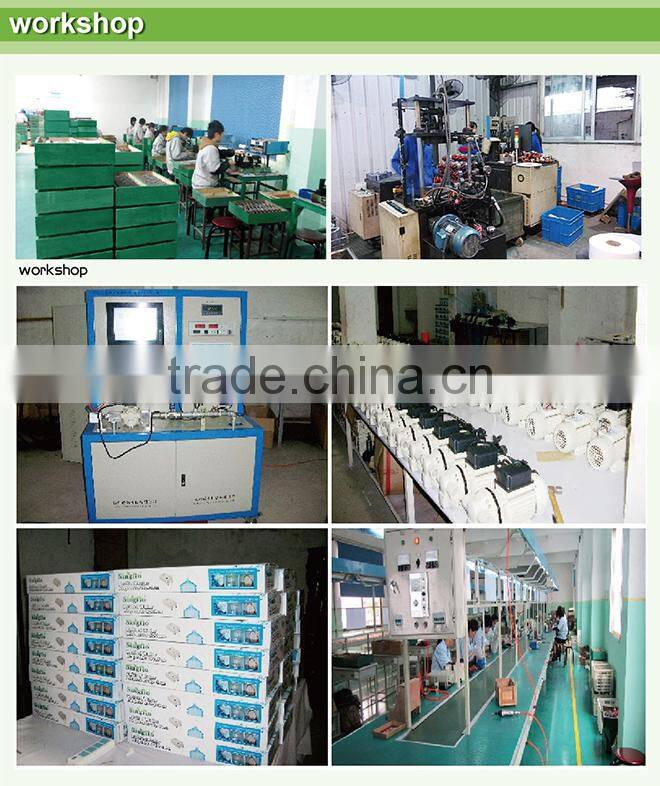

Chmeical pumps test machine:
Certifications:
FAQ:
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-100USD/pcs, when can i get the price at 1usd?
A: 1-100USD is just a price range for your reference here.
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
Note: If area is remote area. You should pay the remote fee before delivery.
If you are interesting in our adblue/ urea chemical pumps, pls contact us at:
Ms.Lucy Chen:
Trade manager: cn1501674438
Skype: singflo.pump5
Wechat: xiaoxiao-huaidan
QQ:985376231
Tel:+86 592 5612511
Sample for testing are welcomed.
Company Profile
YouMe Electric Co., Ltd is a leading company that mainly manufactures and trades precision pumps and flow control components. Since 2010, we have provided innovative, high-quality products with reasonable price for a wide range of fluid control applications.
Our product engineers work closely with customers to meet their precise performance requirements:
-- We have devoted on adblue /def dispenser system since 2008 cooperating with adblue liquid factories & distributers in Europe & Asia.
-- Each product has been tested on functionality and performance, and the flow meters are calibrated piece by piece after complete assembly in workshop before delivery.
-- Our new plus-bottled water dispenser design was customized with convenience - the pump automatically shuts off when the water source is depleted, and automatically restart when water is restored. This assures damage free to the appliance when running dry.
Our products are widely used in a varity of industries including: Adblue / DEF dispenser, Water Treatment and Purification, Biotechnology (Lab water), Medical, Floor Care, Automotive, Road Construction & Maintenance, Beverage/Foodservice, RV/Marine, Agriculture, and Alternative Energy (Solar & Fuel Cell). We directly base on a factory with OEM in over forty countries, and globally deliver our products on time through our distribution network.
