AC motor 220V diaphragm pump
Chemical transfer pumps SPECIFICATION
PUMP Design: 5 chamber diaphragm
Motor Design: Permanent magnet DC/AC
Voltages: 12, 24VDC,115/230VAC
Pump Body: Aluminium
Diaphragm: Viton
Check valves: Viton
Max. Flow Rate: 30~50LPM
Max. Pressure: 40PSI (2.75BAR)
Liquid Temp: 40°F (5°C)MIN;
140°F (60°C)MAX
Duty cycle: Continuous work with self-ventilated
Weight: 5.5KG for DC pump 6.5KG for AC pump
Certifications: CE
Port Size inlet/ outlet: 3/4” 1''
Chemical pumps techniocal data:
Model |
Volts |
Open Flow |
Pressure |
Amps |
Speed |
N.W / G.W |
DC /AC |
LPM |
Shut Off |
(A) |
(RPM) |
(KGS) |
|
HV-30A |
12 VDC |
30-35 |
40 psi (2.8 bar) |
15 |
2800 |
5 /5.5 |
HV-30B |
24 VDC |
30-35 |
40 psi (2.8 bar) |
7.5 |
2800 |
5/5.5 |
HV-30S |
115 VAC |
30 |
40 psi (2.8bar) |
4 |
3400 |
6 / 6.5 |
HV-30M |
230 VAC |
30 |
40 psi (2.8bar) |
1.5 |
2900 |
6 / 6.5 |
HV-40S |
115 VAC |
40 |
40 psi (2.8bar) |
4.2 |
3400 |
6 / 6.5 |
HV-40M |
230 VAC |
40 |
40 psi (2.8bar) |
1.8 |
2900 |
6 / 6.5 |
HV-50S |
115 VAC |
50 |
40 psi (2.8bar) |
4.5 |
3400 |
6 / 6.5 |
HV-50M |
230 VAC |
50 |
40 psi(2.8bar) |
2 |
2900 |
6 / 6.5 |
- Permanent magnet and continuous duty
- Built-in pressure switch automatically starts and stops
- Pump when faucets is opened
- Self-priming 3m so pump can be located above water tank
- Runs dry for extended periods of time without damage
- Hold excellent motor keep stable temperature of pump body
Chemical pumps DC MOUNTING:
The HV Series pumps are self-priming and may be located above or below the water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on the motor in the event of a leak. Place pump on a solid surface and secure with four mounting screws; be careful not to compress the rubber grommets, which act as vibration dampers.

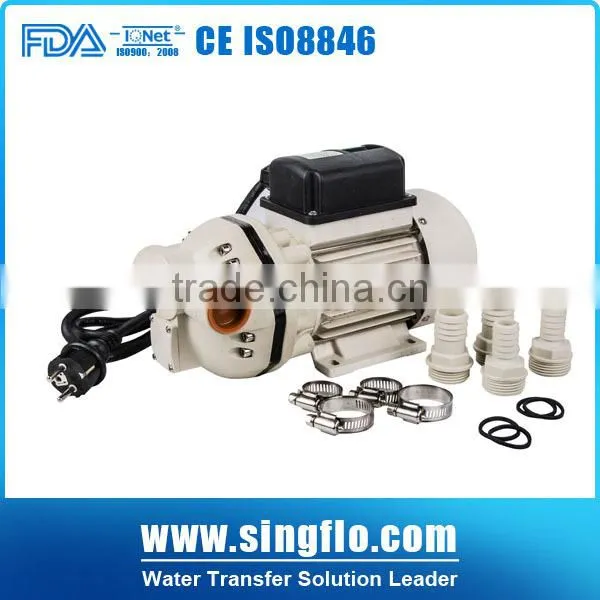

Chemical pumps AC assembled:

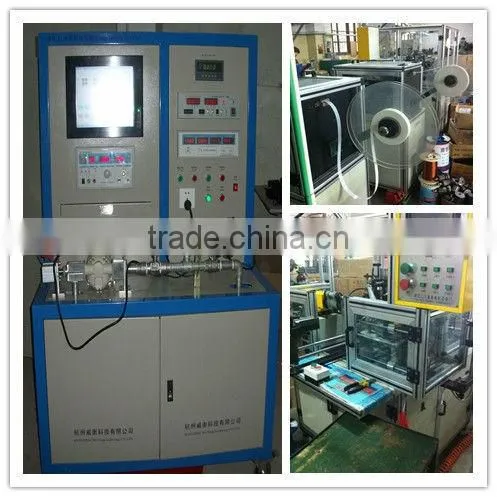

Chmeical pumps test machine:
Chemical pumps CE Certificate :
Sample is warm welcomed.
Any interested, pls no hesitate to contact us:
Tel:0086-592-5612511
Skype:tracy9181
Whatsapp:15880967061
We chat:15880967061
