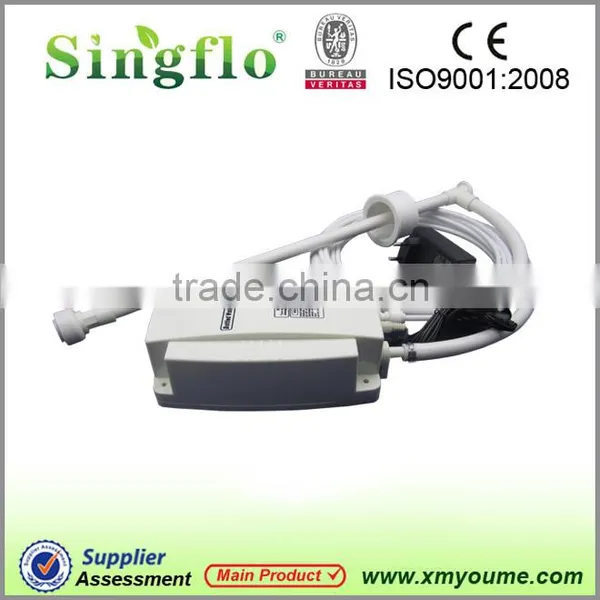

Singflo BW4003A New Style AC bottled Water Dispensing Pump System
Singflo bottled water dispenser,bottle water pump dispensing system 12V DC,115/120V-230/240V AC(similar FLOJET),bottle water pump for 5 Gallon.
Applications:Refrigerators,ice makers, kitchen sink, rvs&campers,boats,coffee brewers,beverage carts.
Description:
Liquid bottle dispenser is ideal for mobile locations or home users who can't or don't want to direct plumb. The Bottled drinking water dispenser pump will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers

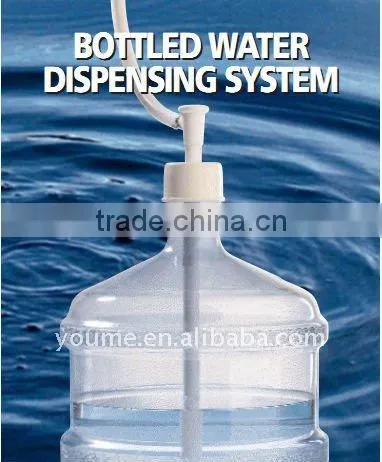

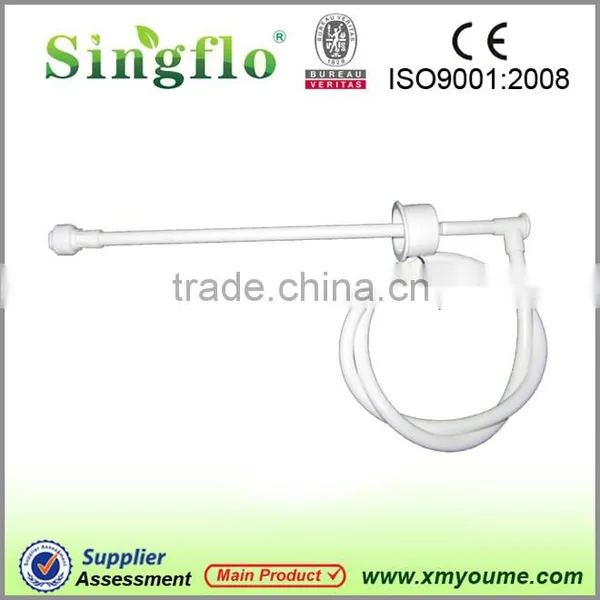

When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventer valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.
The system is equipped with an automatic thermal cut-off device for additional protection.
1.Float switch for automatic shut-off when bottle is empty
2.Built-in check valve to prevent back flow
3.Universal seal cap fits most water containers
4.Compact size for easy mounting
5.20 in. (6.1 m) discharge hose included
6.Easy installation
7. It's detachable and more convenient
Specifications:
Max. Flow Rate: 1.0 gpm (3.8 lpm)
Max. Pressure: 40 psi (2.8 bar)
Dimensions: 3.0 H x 5.5 W x 7.5 D inches (7.6 x 14.0 x 19.0 cm)
Voltage 115 or 230 V AC 12 V DC
Amp Draw: 12 Volt 3.0 Amps. Max.
115 Volt 0.5 Amps. Max.
230 Volt 0.25 Amps. Max.
Cycles: AC models 50/60 Hz
Weight: 2.9 kg(5.6 net lbs)
Dimensions: 3.0"Hx5.5"Wx7.5D(76x140x190mm)-control box
Technical datas:
| Model | Volts(V) AC/DC | Max Flow Gpm(Lpm) | Pressure(Psi) | Max Amps(A) | Standard |
| BW1000A | 110-127 AC | 1 (3.8) | 40 | 0.5 | 6 feet coard with plug |
| BW2000A | 210-240 AC | 1(3.8) | 40 | 0.25 | 6 feet coard with plug |
| BW2020A | 210-240 AC | 1(3.8) | 40 | 0.25 | 6 feet coard with plug |
| BW3000A | 12 DC | 1 (3.8) | 40 | 3 | 12 inch lead wires |
| BW4000A | 110-127 AC | 1 (3.8) | 40 | 0.5 | 6 feet coard,suction wand and hose&plug assembly |
| BW4003A | 210-240 AC | 1 (3.8) | 40 | 0.25 | 6 feet coard,suction wand and hose&plug assembly |

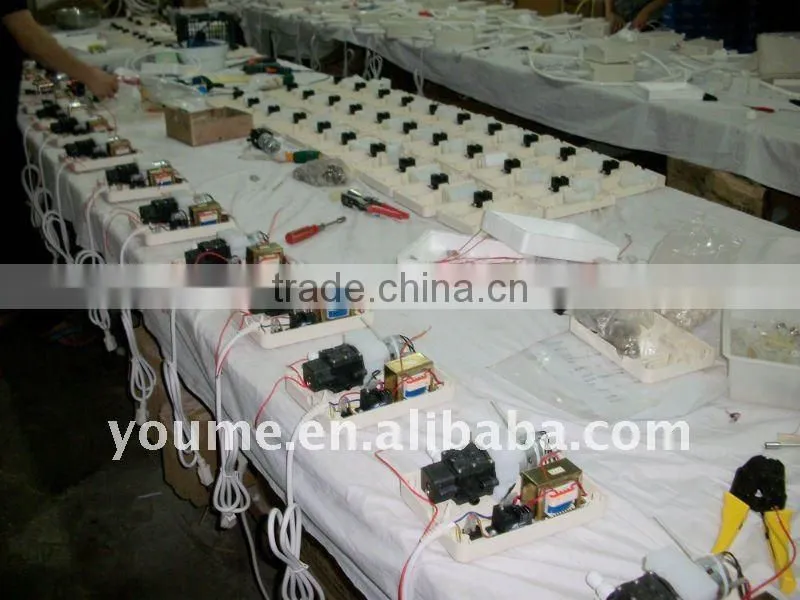

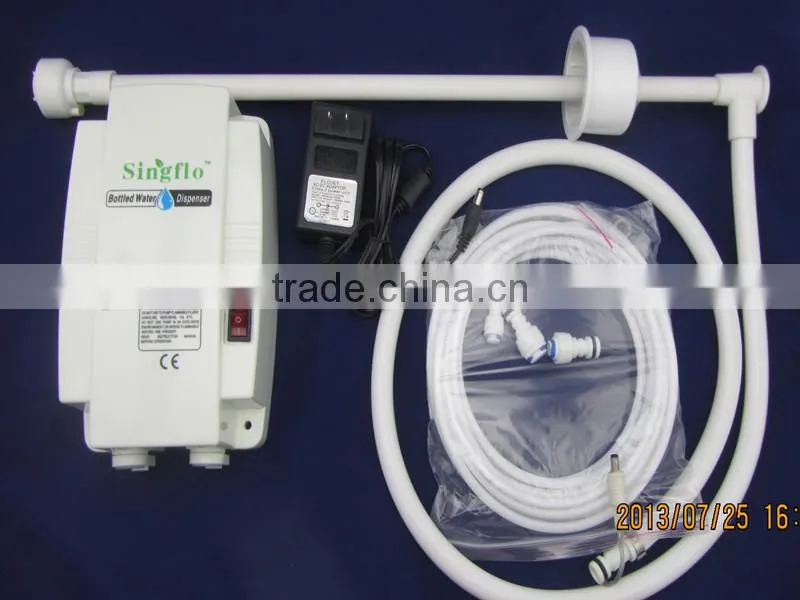

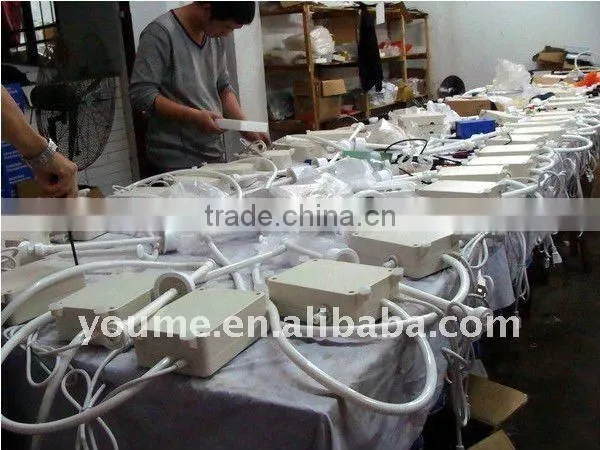

Pictures reference:

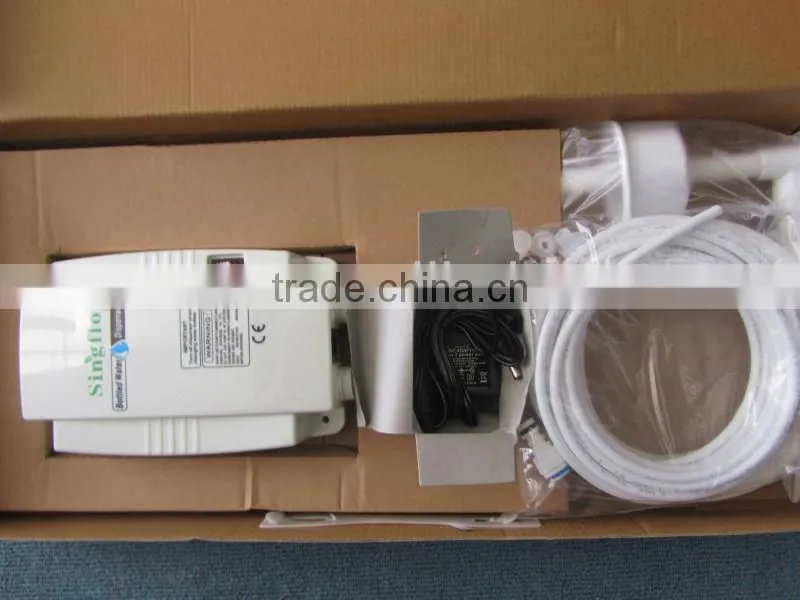

Package:

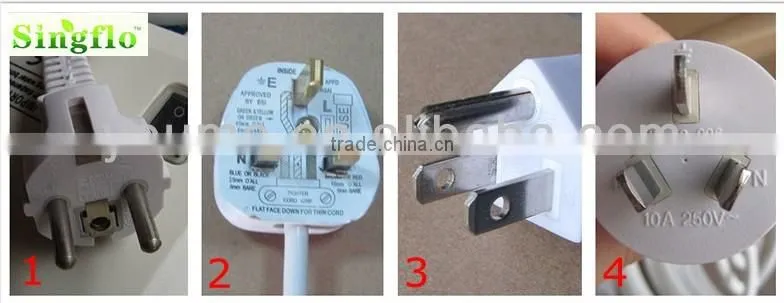

Plugs:

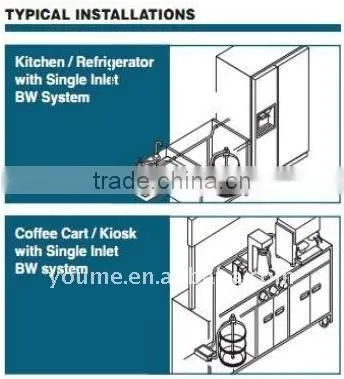

Application:
