Singflo Pump Dispenser/dispenser Pump/water Dispenser Pump

Singflo Pump Dispenser/dispenser Pump/water Dispenser Pump photo-1
Singflo Pump Dispenser/dispenser Pump/water Dispenser Pump photo-2
US$ 30 - 45 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Singflo
Model Number:
BW4000A
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Singflo
Model Number BW4000A
Theory Reciprocating Pump
Structure Diaphragm Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric
Pressure Low Pressure
Application Other, coffee machine. ice maker

Singflo pump dispenser/dispenser pump/water dispenser pump





Product Description

Singflo pump dispenser/dispenser pump/water dispenser pump

Application:

Liquid bottle dispenser is ideal for mobile locations or home users who can't or don't want to direct plumb. The Bottled Water Dispensing System will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.

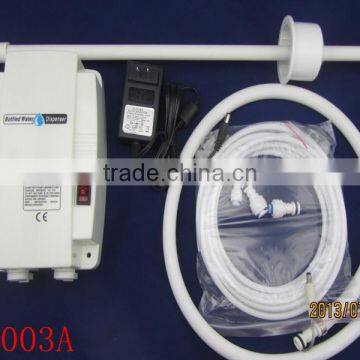

Singflo pump included:
Suction wand and hose assembly.
•Pump module with On/Off switch.
•6 foot cord with plug.
•20 feet of 1/4" discharge tube
•Universal seal cap: Fits any 3, 5, and 6 gallon plastic water bottle.
•Installation and maintenance instructions.



Feature:
1.Easiest way to connect this to your filtration kit/espresso machine
2.Float switch for auto shut-off when bottle is empty
3.Built-in check valve to prevent back flow
4.Universal seal cap fits most water containers
5. Compact size for easy mounting
6.Long Life Motor: Ensures years of reliable operation
7.Easy installed


Specifications:
   Max. Flow Rate: 1.0 gpm (3.8 lpm)
   Max. Pressure: 40 psi (2.8 bar)
   Dimensions: 3.0 H x 5.5 W x 7.5 D inches (7.6 x 14.0 x 19.0 cm)
   Voltage 115 or 230 V AC 12 V DC
   Amp Draw: 12 Volt 3.0 Amps. Max.
   115 Volt   0.5 Amps. Max.
   230 Volt   0.25 Amps. Max.
   Cycles: AC models 50/60 Hz
   Weight: 2.9 kg(5.6 net lbs)





Using methos.

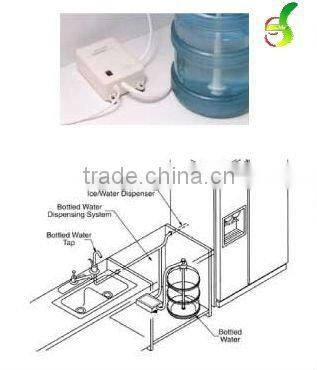

1.Mount the system in a convenient location with access to power and space for the bottled water.

2.Install the suction tube into the water bottle

3.Insert the outlet tubing(20' provided) into the connector

4.Route the tubing to your refrigerator,brewer,or tap

5.Plug in the dispensing system

6.Press the switch on,and it's ready to use

Singflo pump dispenser/dispenser pump/water dispenser pumpSingflo pump dispenser/dispenser pump/water dispenser pump



Technical datas:



Model GPM Max
PSI
Outlet Tubing Volts Amps Cycle Cord Dimensions
(H x W x D)
Wt
(kgs)
BW1000A 1.0 40 1/4" 20' 115 0.5 50/60 6' 3.0" x 5.5" x 7.5" 3.5
BW2000A 1.0 40 1/4'' 20' 220 0.25 50/60 6' 3.0" x 5.5" x 7.5" 3.5
BW3000A 1.0 40 1/4'' 20' 12 5   6' 3.0" x 5.5" x 7.5" 3.5
BW4003A 1.0 40 1/4'' 20' 115-240 0.5 50/60 6' 3.0" x 5.5" x 7.5" 3.3

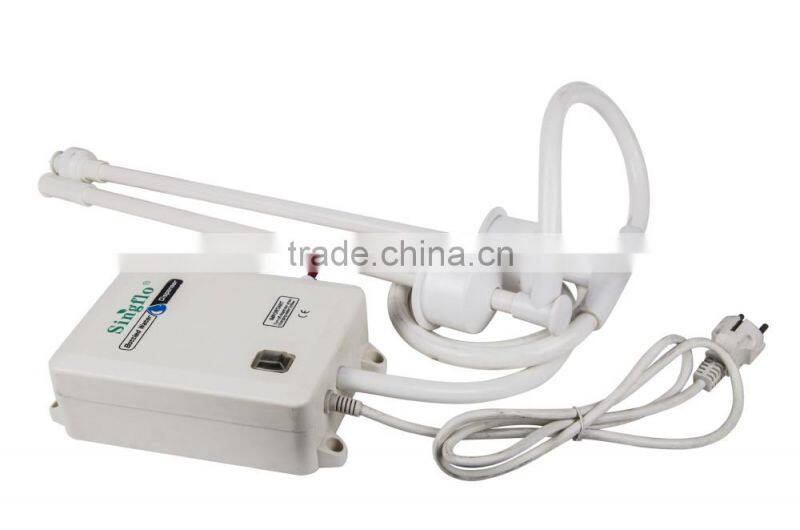

Product Image

Singflo pump dispenser/dispenser pump/water dispenser pump



Singflo pump dispenser/dispenser pump/water dispenser pump
