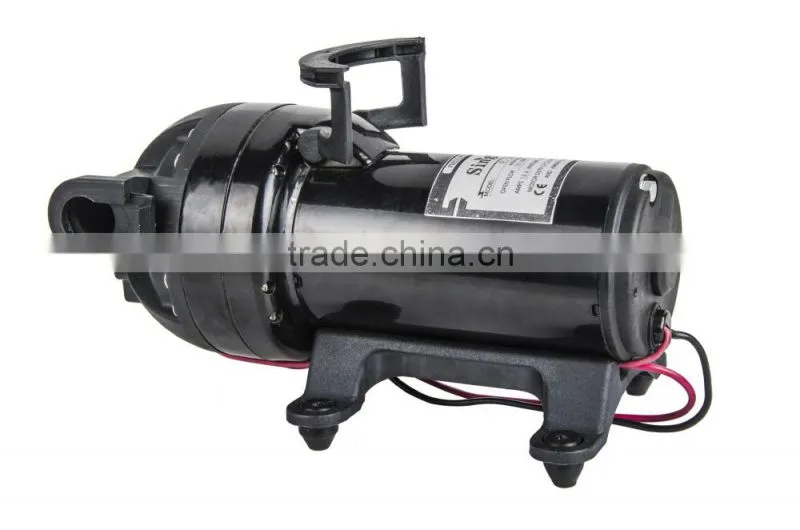

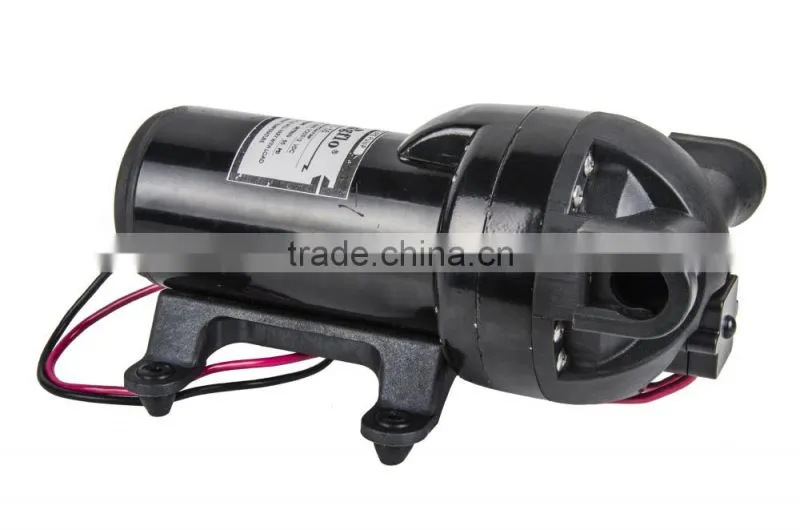

Singflo electric water pump motor price/12v/24v dc pressure water pump
Application:
Diaphragm pump main for Clean water, Sea water & light corrosivity chemical liquid transfer usage.
Features:
1. Excellent Self-priming high to 10 feet.
2. Max. pressure:200psi with intermittent working duty cycle with carry handle.
3. Pumps Max. flow rate: 20L/Min.
Technical Data:
Body of diaphragm pump |
Glass Filled Nylon |
||||||||
Check valve |
EPDM & VITION all are available, five chamber pump. |
||||||||
Diaphragm |
TPV( Stantoprene) |
||||||||
Ports |
3/4" Female Thread, 1/2"barbed fitting Included |
||||||||
Voltage |
12/24V DC Voltage are all available |
||||||||
Amp draw |
Max.15.a(amp) for 12v, Max.8.a(amp) for 24v, |
||||||||
Pump design: |
5 Chamber Diaphragm |
||||||||
Motor Type |
Permanent magnet type |
||||||||
Self priming |
3m vertical lift |
||||||||
Max.Pressure |
200psi (13.80Bar) |
||||||||
Liquids |
Clean water, sea water & light corrovisity chemical liquids |
||||||||
Model |
Volts(V) |
Flow |
Max. Pressure |
Amp Draw(A) |
Max Draw(A) |
Packing Size |
N.W/G.W(kg) |
||
(lpm/gpm) |
(mm) |
||||||||
FL-200 |
12V |
10/2.6 |
200PSI/13.8Bar |
13A |
15A |
240*135*138 |
3.05/ 3.25kg |
||
FL-55 |
12V |
20/5.2 |
55psi/3.8Bar |
15A |
16A |
240*135*138 |
3.05/ 3.25kg |
||
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.
Q: What's your payment way?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
