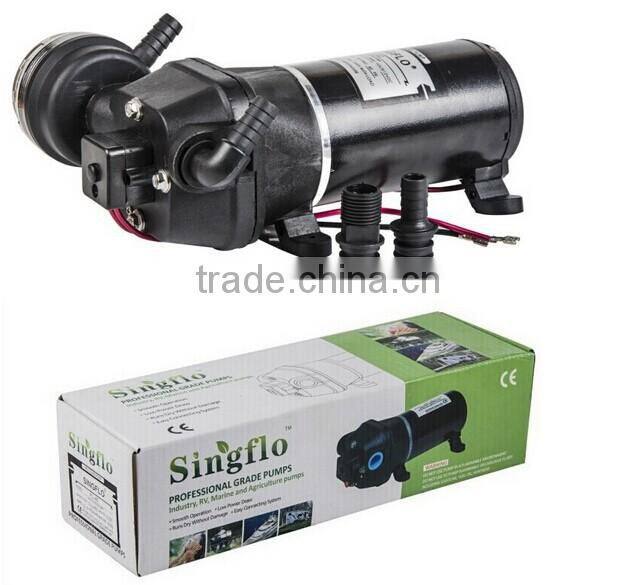

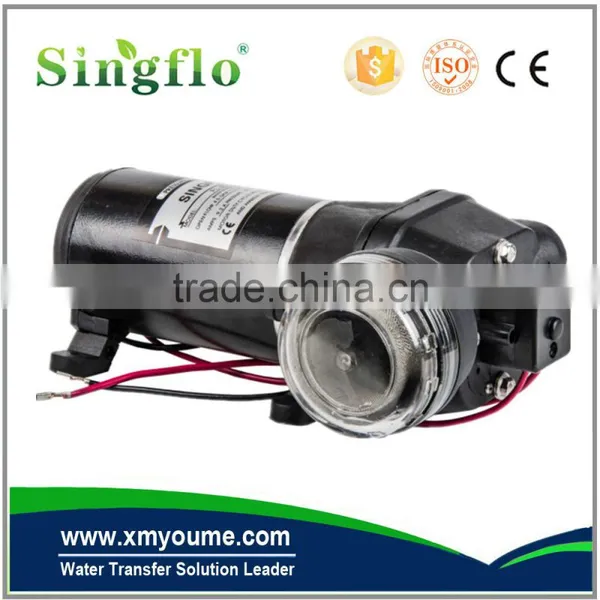

High Flow FL-35 12.5LPM 12V DC Diaphragm Pump 4 Chamber Positive Water Pump
Specifications:
Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off. Comes with filter and fittings. hese pump are for intermittent use only.
A great pump for those country folk, with a small family, on tank water who only need to boost the pressure from a tank next to the house.
We have tested these pumps and found they will operate to a 2 metre suction lift and 5 metre head with no problems.
| Type: | 4 Chamber Diaphragm |
| Port Size: | 1/2''(12.5mm)House Barb |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 40psi(2.76bar);can be adjust to 60psi. |
| Run Dry: | Yes |
| Motor: |
Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 12/24 VDC and 115/220 VAC motors standard (consult factory for other voltages) |
Features:
- Lightweight and made from non corroding materials
- Self priming
- Run dry Protection
- Easy to install
- No maintenance
- Simple to operate
- Low power consumption
- 12 months warranty
- Automatically turns on and off
- Comes with filter and fittings
Technical Data:
| TECHNICAL DATA OF DC VOLTAGE | ||||
| Model | Volt | Flow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-30 | 12 | 10 | 17 | 2.2 |
| FL-31 | 24 | 10 | 17 | 1.5 |
| FL-35 | 12 | 12.5 | 35 | 7 |
| FL-34 | 24 | 12.5 | 35 | 4 |
| FL-40 | 12 | 17 | 40 | 9.2 |
| FL-44 | 24 | 17 | 40 | 5.6 |
| TECHNICAL DATA OF AC VOLTAGE | ||||
| Model | Volt | FLow(L/Min) | Pressure(PSI) | Amp Draw(A) |
| FL-33 | 115 | 12.5 | 35 | 0.5 |
| FL-32 | 220 | 12.5 | 35 | 0.4 |
| FL-41 | 115 | 17 | 40 | 0.5 |
| FL-43 | 220 | 17 | 40 | 0.8 |
| Inlets size: | 1/2''hose barb, thread | |||
| Outlets size: | 1/2''hose barb, thread | |||
| dimension/pc FL-3: | 33.5x12.5x10.5cm | |||
| Net weight/pc FL-3: | 1.9kg | |||
| Gross weight/pc FL-3: | 2.3kg | |||
| Carton dimension(10pcs FL-3 Series): | 63x29x22.5cm | |||
| dimension/pc FL-4: | 37x12.5x10.5cm | |||
| Net weight/pc Shape FL-4: | 2.45kg | |||
| Gross weight/pc FL-4: | 2.9kg | |||
| Carton dimension(10pcs FL-4 Series): | 64x39x22cm |
|||
- Agriculture/Yacht / RV/Caravan pressurized water system
- Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
- Food beverage filling & liquid transfer
- Any other pressurization system
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.
Q: What's your payment way?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
