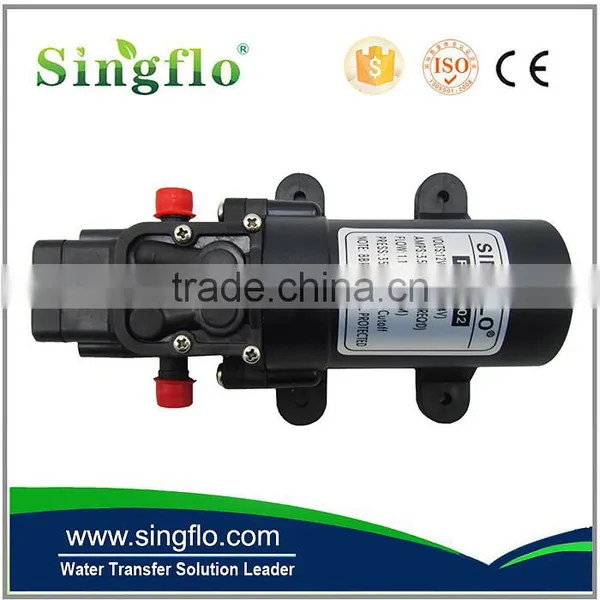

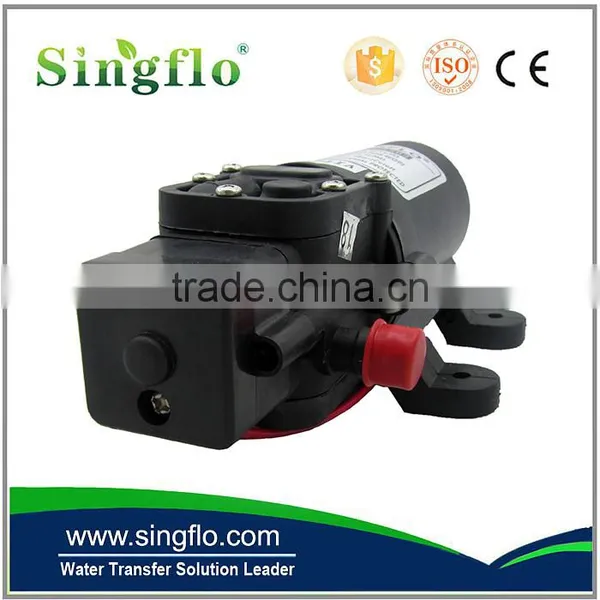

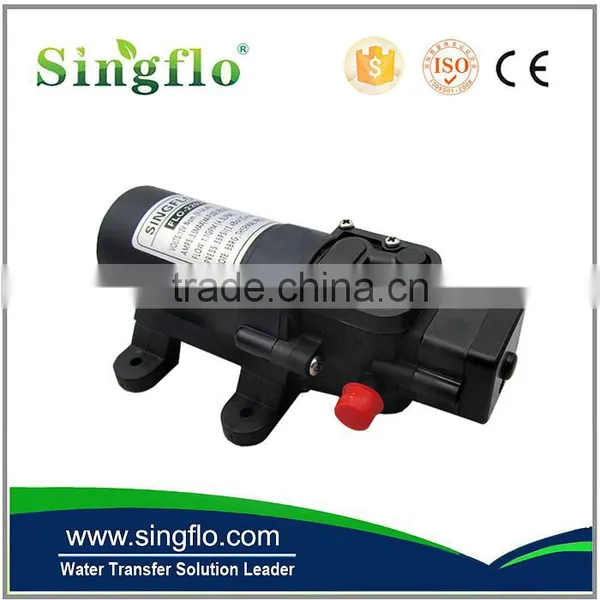

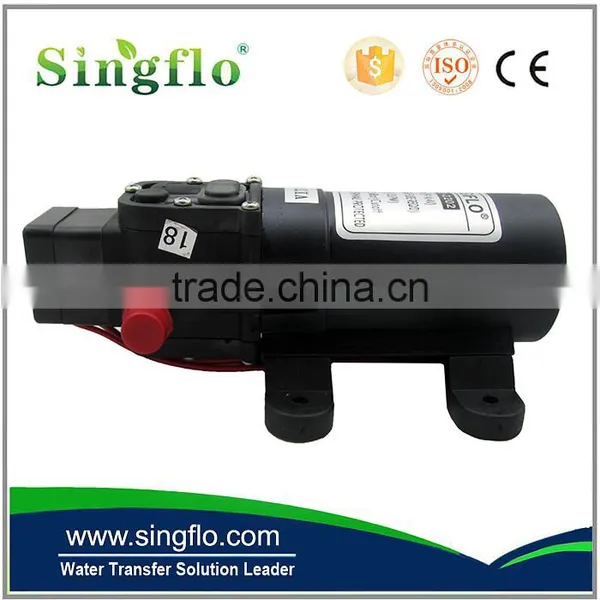

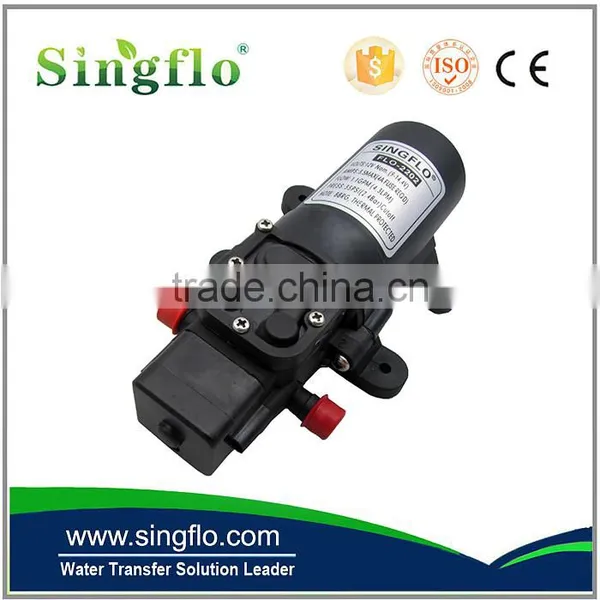

12v 4.3L/min 3.5A china kitchen faucet / low pressure water pump
|
It can be used for low flow rate while high pressure requirements in situation as:
|
| Pressure pumps used in sprayers and spray fixtures. |
| Water purification, filter machine , chemical metering and fluid supply. |
| Food, Beverage filling and transfer. |
| Ex .pressure switch control pump's working or not, turn on switch, pump is at working; |
| turn off switch with pump stop working, |
|
So, it is special suitable for sprayers and spray fixtures with its low flow rate.
|
| Motor | Pump | Material of Contruction | Weight & Size |
|
Type: 12V/24V DC, Permanent magnet, totally |
Type:2-chamber positive displacement |

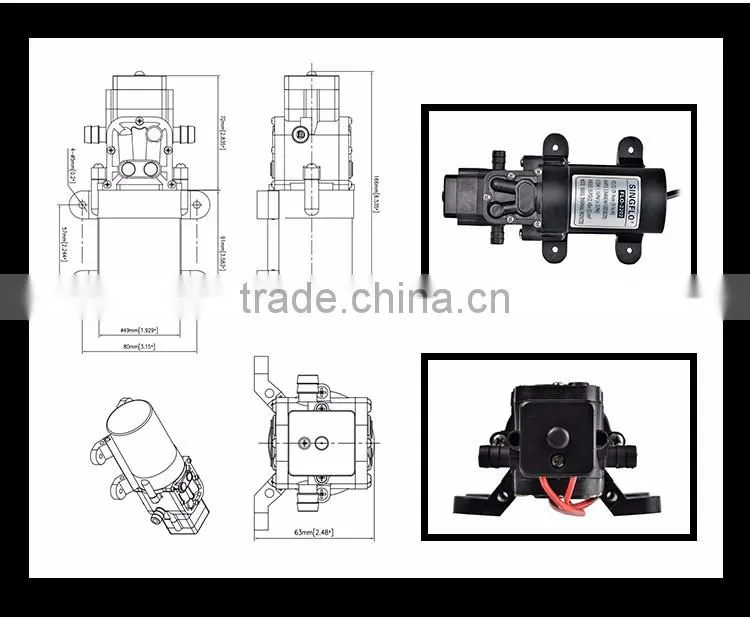

Motor Housing: PA66 | Dimension:18.5*11*6.5cm |
|
Enclosed, non-ventilated |
Liquid Temperature: 140ºF(60°C)Maximum |
Pump Housing: Polypropylene | Net weight:0.67kgs |
| Leads:16 AWG |
Priming Capabilities: 3feet(0.9m)suction lift |

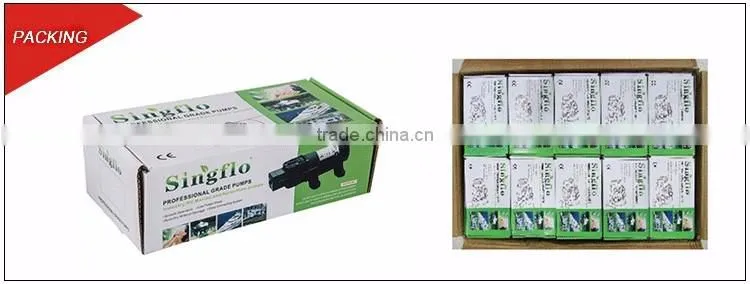

Valves: Viton or EPDM | Packing:50pcs/CTN |
|
Duty cycle: Work intermittent |
Pump able to run dry without damage |
Diaphragm: Santoprene | Ctn size:58*37*37cm |
|
CHECK VALVE: (1-Way Operation) Prevents Reverse Flow |
Ports Size: 3/8'' Hose Barb | N.W.:34kgs, G.W.:36kgs |
| Model | Volt | Flow LPM(GPM) |
Pressure PSI(BAR) |
Amp Draw(A) | BYPASS |
| FLO-2201 | 12 | 2(0.52) | 55(3.79) | 1.8 | YES |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.41) | 3 | YES |
| FLO-2202 | 12 | 4.3(1.13) | 35(2.41) | 3.5 | YES |
| FLO-2203 | 12 | 2.6(0.68) | 70(4.83) | 2.1 | YES |
| FLO-2203-1 | 12 | 3.1(0.82) | 70(4.83) | 2.2 | YES |
| FLO-2202A | 12 | 4(1.05) | 80(5.52) | 2.6 | YES |
| FLO-2401 | 24 | 2(0.53) | 55(3.79) | 0.9 | YES |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.41) | 1.5 | YES |
| FLO-2403 | 24 | 2.6(0.68) | 70(4.83) | 1 | YES |
| FLO-2402A | 24 | 4(1.05) | 80(5.52) | 1.3 | YES |

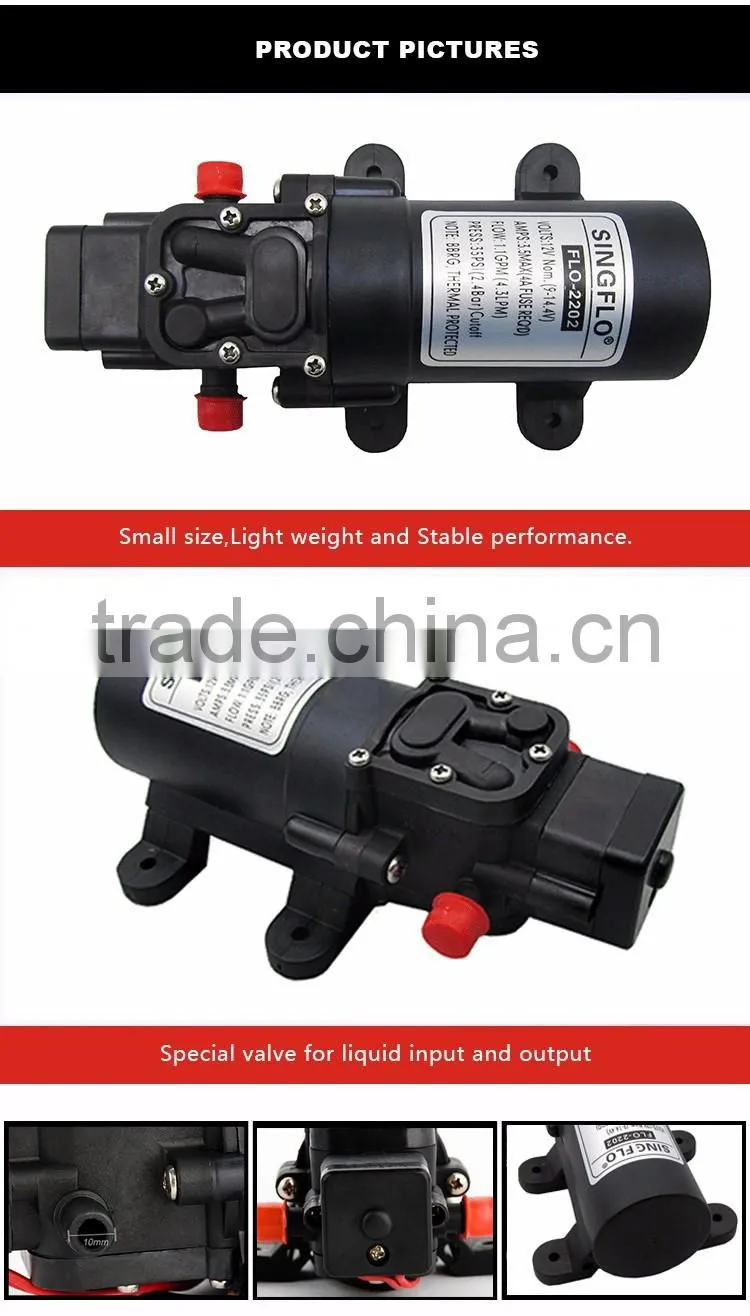

Antivibration pad, easy installation.
- Self-priming, Automatic Pressure Switch.
- Automatic Pressure Protection.
-
Low Noise, with excellent resistant to chemical corrosion.
|
1. Do not use this product beyond the limit specified in this specification, when useing the brushless motor be noted that the input power should be constant pressure, filtering..
2.Keep the import eara and export eara clean and smooth , no solid particles, may contain a small amount of water, not so solid foreign objects into the pump body, in the non-clean air in and out of the installation of air intake filters.
3.The specification of this product is only for your reference,the details should check the real products,spcific and be made according to customers’request within the permitted range.
4.non-professional person should not open this product. |
|
Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled hrough the inlet, through the various valve chamber check valves to the outlet he volume of flow is determined by several factors including: the number and size of the pump chambers,cam offset, operating pressure, fluid viscosity.
|
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your shipping item?
A: We ship items via EMS, DHL, UPS, TNT, China Post or Hong Kong Post.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump )for over 10 years with excellent quality and competitive
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
Q: Why i find some price on your items show only 1-20USD/pcs, when can i get the price at 1usd?
A: 1-20USD is just a price range for your reference here.
Guarangee:
1. We offer 12 months limited Warranty of Manufacturer for defective items (excluding items damaged and /or misused after receipt).
2. If you have any problems with the item received, please let us know within 7 days after received. Please contact us before send items back! If problem really exists, a replacement or a refund is available after we receive the items in goods condition.
Note: If area is remote area. You should pay the remote fee before delivery.
